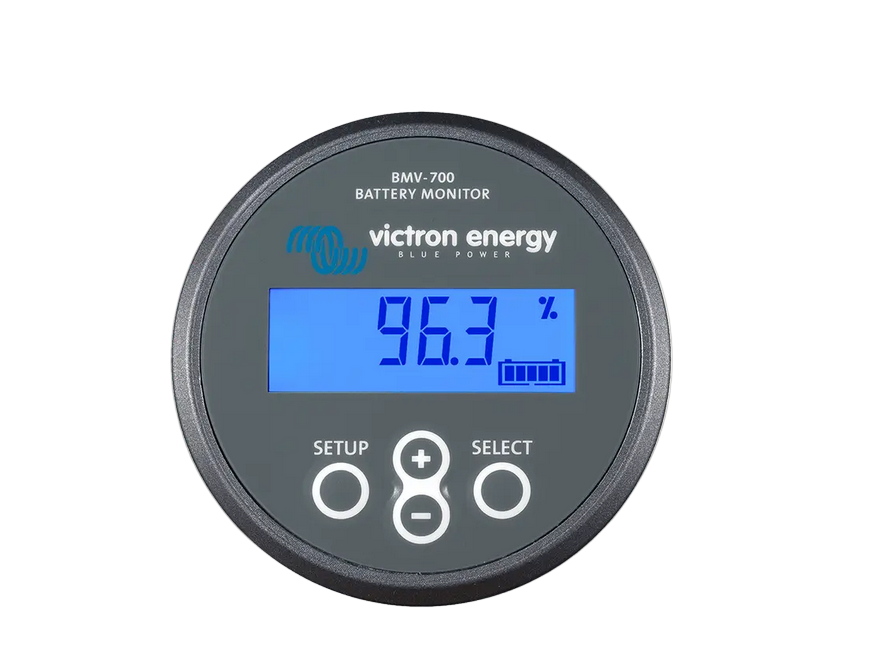

Victron BMV-700 Battery Monitor: Accurate, Reliable Battery Management for RV, Marine & Off-Grid Systems

The BMV-700 gives you highly accurate tracking of your battery’s remaining capacity by considering key variables such as ampere-hours consumed, discharge current, battery temperature, and age. Its advanced algorithms calculate these factors to provide detailed information including voltage, current, power consumption in Watts, state of charge, and time-to-go. This makes it ideal for any system where knowing your battery status matters.

The BMV-700 is designed to offer reliable monitoring across multiple applications:

RVs & Caravans

Monitor your battery usage accurately and avoid unexpected outages while travelling. The BMV-700 provides a clear, easy-to-read display showing real-time battery data.

Off-Grid Solar Systems

Stay in control of your energy storage with precise battery monitoring. The BMV-700 works seamlessly alongside solar chargers and inverters for efficient off-grid living.

Marine Applications

Ideal for boats and yachts, the BMV-700 lets you keep a close eye on your battery bank, ensuring safe and dependable power while on the water.

Simple Installation Process

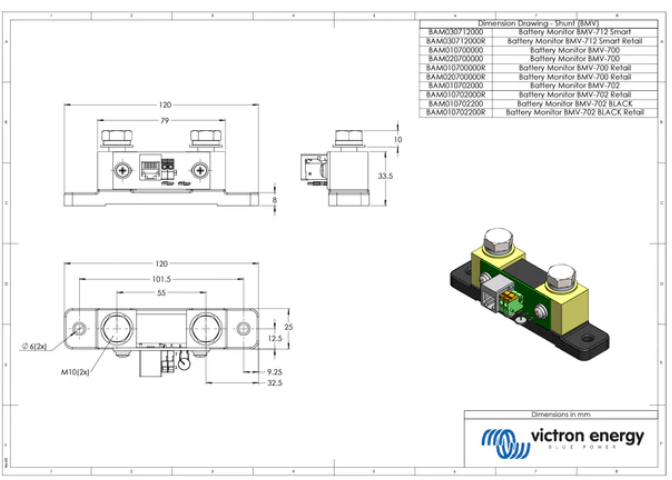

Installation is fast and straightforward. All electrical connections are made on the quick-connect PCB attached to the current shunt. The monitor connects to the shunt using the included RJ12 cable.

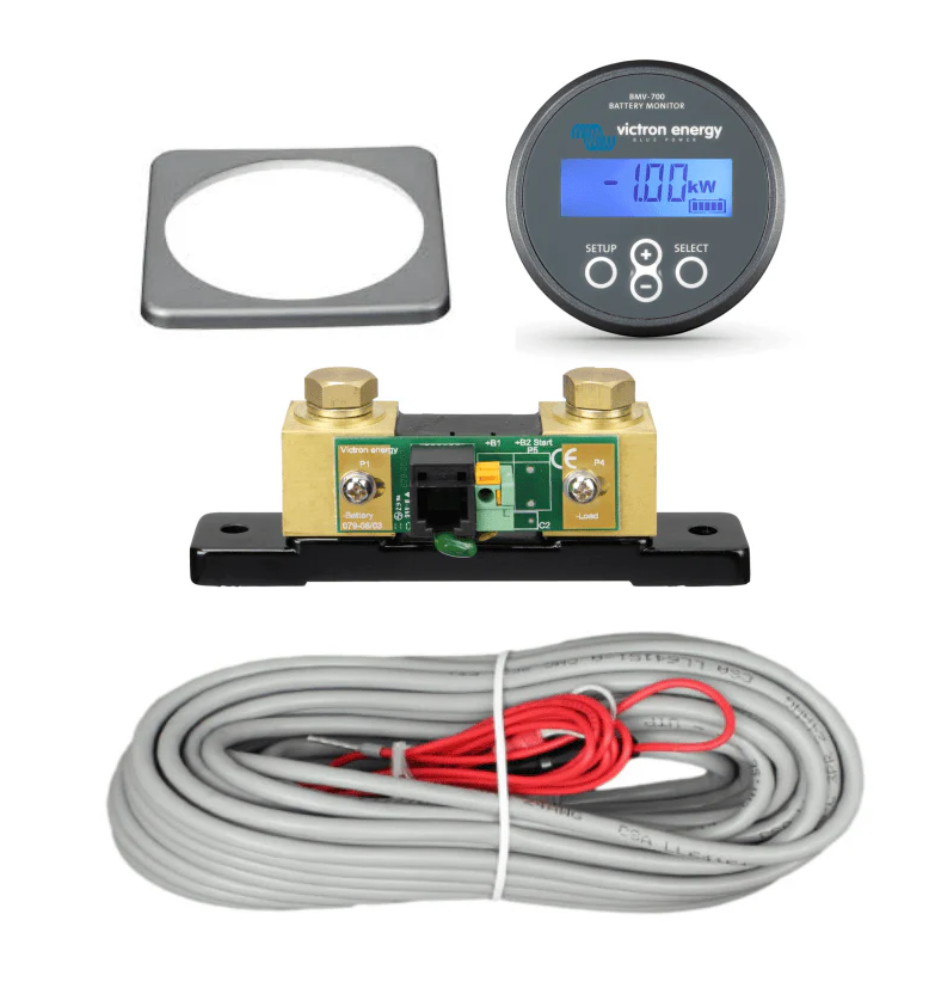

The kit includes:

• 500A/50mV shunt

• 10m RJ12 data cable

• 2m fused battery cable

• A second front bezel (square or round)

• Rear mounting ring

• Screws for front mounting

No additional components are required — everything you need is included in the box.

Effortless Programming

The BMV-700 includes a quick-setup wizard and a detailed configuration menu with scrolling text descriptions. Settings can be adjusted directly from the display using the control buttons.

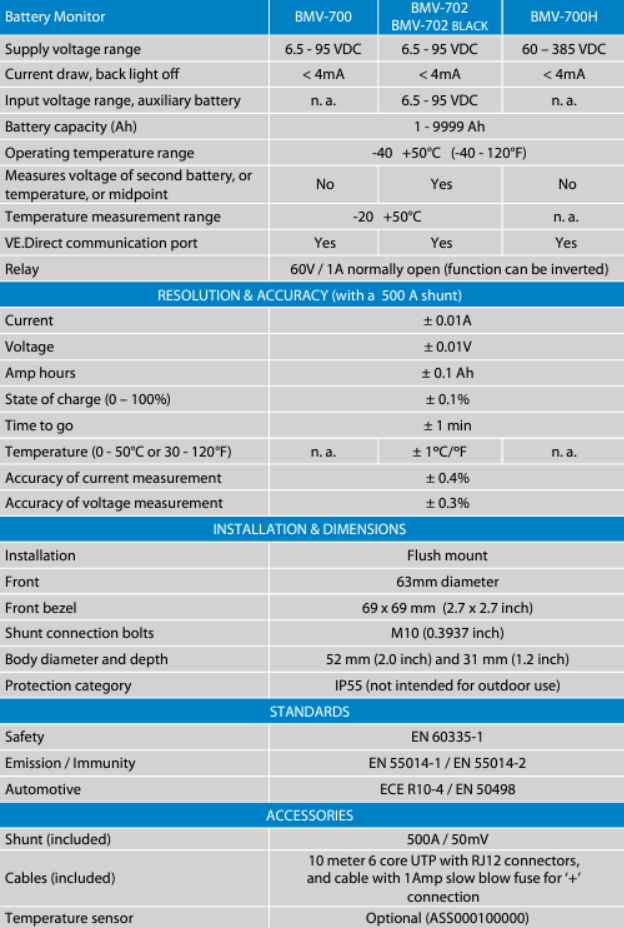

Key Features of the BMV-700 Battery Monitor

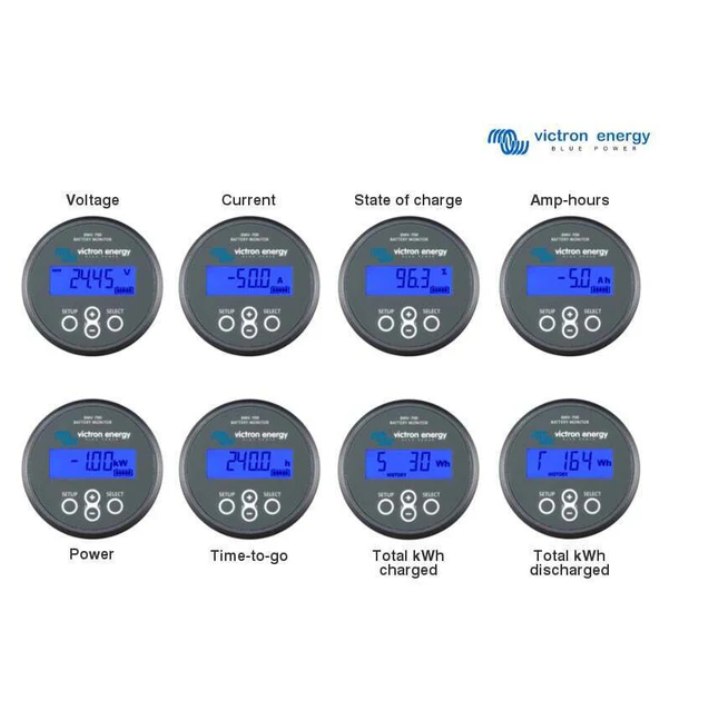

• Real-time data on battery voltage, current, power, ampere-hours consumed, and state of charge

• Displays remaining time at the current rate of discharge

• Programmable visual and audible alarms

• Programmable relay for managing non-critical loads or generator auto-start

• 500A quick-connect shunt included (supports shunts up to 10,000A)

• VE.Direct communication port for use with GX devices or the Bluetooth Smart Dongle

• Records extensive historical data to help evaluate system performance

• Wide input voltage range: 6.5 – 95 VDC

• High measurement resolution: 10 mA (0.01 A)

• Very low internal consumption: approx. 4 mA at 12V / 3 mA at 24V

About Midpoint Voltage

Midpoint voltage monitoring is not included on the BMV-700.
This feature is only available on the BMV-702 and BMV-712.

What is the difference between the BMV-700 and BMV-712?

The BMV-712 has all the features of the BMV-700, but it also includes an extra input to measure a second battery's voltage, temperature, or midpoint voltage. Additionally, the BMV-712 has built-in Bluetooth for easy wireless setup and monitoring.

Bluetooth Connectivity (Optional)

The BMV-700 does not have built-in Bluetooth.

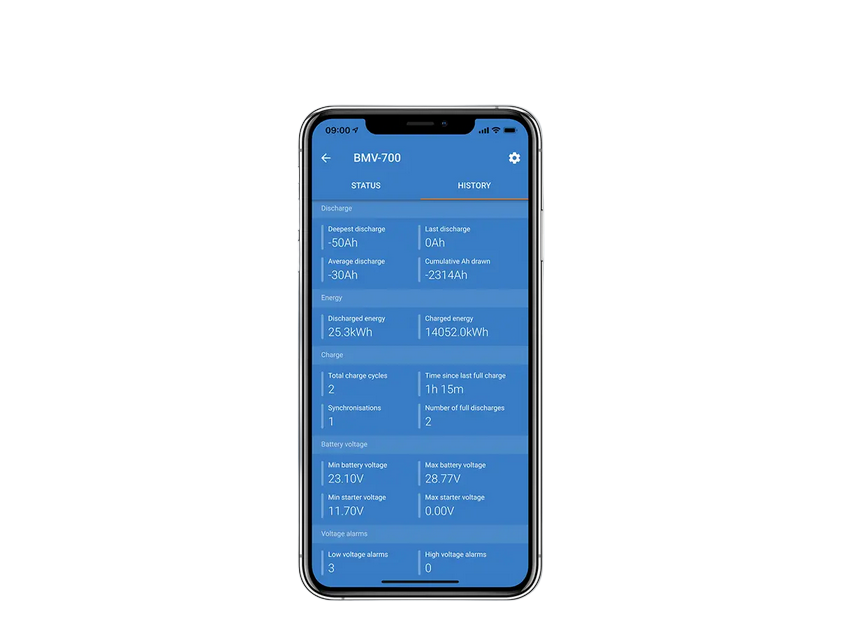

However, it can be upgraded for wireless monitoring using the Victron VE.Direct Bluetooth Smart Dongle, allowing you to:

• View key battery data on your phone

• Access historical data

• Customise settings

Download the VictronConnect App to enable wireless monitoring when using the dongle.

For a detailed overview from Victron, you can check out their video Here
