Victron 12V 3000VA Phoenix Smart Inverter 12/3000
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
Product details
The Victron Phoenix Inverter Smart 12/3000 is a 12V to 230V pure sine wave inverter designed to provide reliable mains-style power from a 12V battery system. With a 3000VA rating, 2400W continuous output at 25°C and 6000W peak power, it's built for demanding electrical setups in caravans, motorhomes, 4WDs, boats and off-grid installations.
Built-in Bluetooth monitoring, adjustable settings and an efficient ECO mode make it easy to manage your power system while keeping unnecessary battery consumption to a minimum.
Pure Sine Wave Power for Demanding Appliances
The Phoenix Smart produces a clean, stable 230V AC output, making it suitable for compatible household appliances, electronics, power tools and equipment with electric motors. Its high start-up capacity helps handle the brief power surges required by devices such as compressors and motor-driven appliances.
With 2400W of continuous output at 25°C and 2200W at 40°C, it's important to consider both the running wattage and start-up requirements of your appliances. The 3000VA rating should not be confused with 3000W of continuous output.

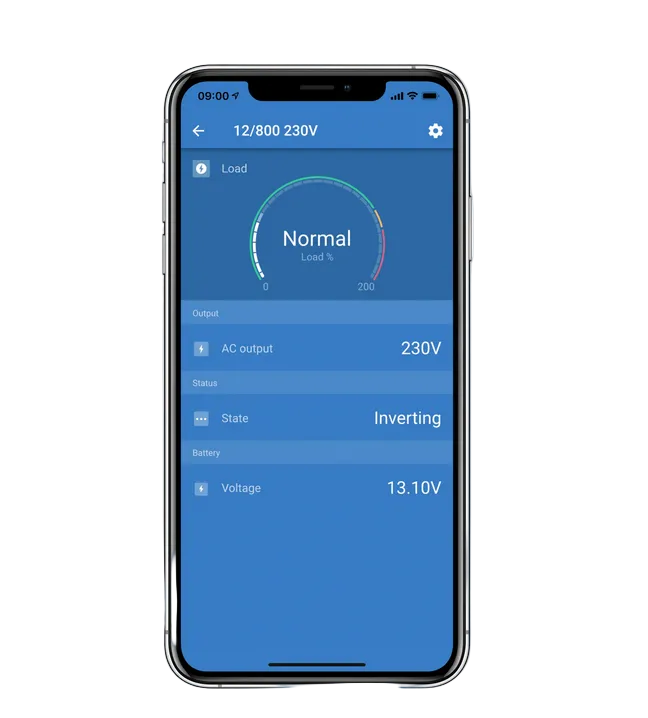

Built-in Bluetooth and VictronConnect
Integrated Bluetooth allows you to monitor and configure the inverter using the free VictronConnect app. View battery voltage, AC output, connected load and operating status, as well as adjust settings to suit your electrical system.
Output voltage, frequency, low battery shutdown levels and ECO mode sensitivity can all be configured. A VE.Direct communication port also allows integration with compatible Victron monitoring equipment, including GX devices, using the appropriate connection accessories.
Efficient ECO Mode
Running an inverter continuously can consume valuable battery power, even when no appliances are operating. The Phoenix Smart addresses this with an adjustable ECO mode that places the inverter into low-power standby when demand falls below a configured threshold.
Standby consumption is approximately 12W during normal no-load operation and just 1.5W in ECO mode. The inverter periodically checks for a connected load and resumes normal operation when the configured threshold is exceeded.
Built for Reliable Operation
Victron's full bridge and toroidal transformer design provides dependable performance, with fan-assisted cooling and protection against overload, short circuits, excessive temperature and abnormal battery voltage.
Additional features include configurable low-voltage cut-off, remote on/off control, LED status indicators and a programmable relay for integration with external monitoring or control equipment.
Important Installation Considerations
A high-output 12V inverter places significant demand on the battery system. At high loads, current draw can exceed 200A, so battery discharge capability, BMS limits, cable sizing, fusing and ventilation must all be considered before installation.
The Phoenix Smart is an inverter only. It does not charge batteries or include an automatic AC transfer switch. Its AC output uses screw terminals rather than a built-in power socket. Installation must follow Victron's instructions and applicable electrical requirements, with AC electrical work completed by an appropriately licensed electrician.
Shipping Australia Wide
Orders are dispatched quickly from Australia. Questions? Hit us up, we're 4WDers too and happy to help.

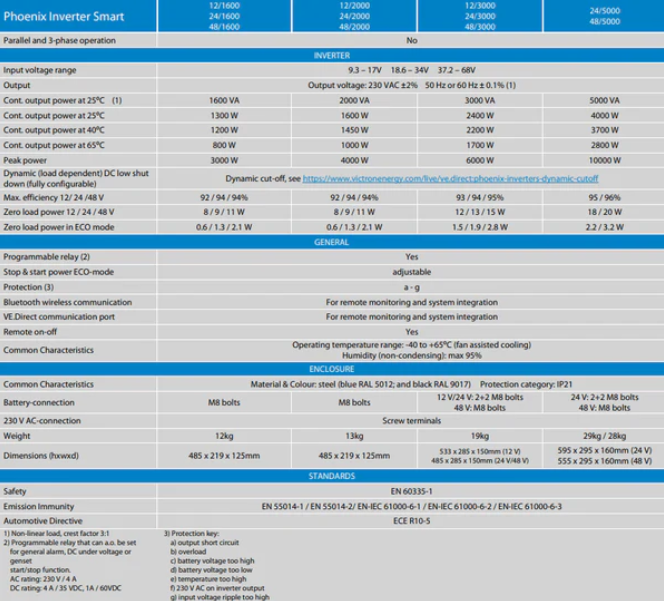

Technical Specifications
| Inverter Performance | |
|---|---|
| Brand | Victron Energy |
| Model | Phoenix Inverter Smart 12/3000 |
| Model Number / MPN | PIN122300000 |
| Inverter Type | 12V DC to 230V AC pure sine wave inverter |
| Input Voltage Range | 9.3–17V DC |
| AC Output | 230V AC ±2%, 50Hz or 60Hz |
| Rated Output | 3000VA |
| Continuous Output at 25°C | 2400W |
| Continuous Output at 40°C | 2200W |
| Peak Power | 6000W |
| Maximum Efficiency | 93% |
| No-load Consumption | 12W |
| ECO Mode Consumption | 1.5W |
| Control, Monitoring & Protection | |
| Bluetooth | Built-in, via VictronConnect |
| VE.Direct Port | Yes, for compatible monitoring and integration |
| Remote On/Off | Yes |
| Programmable Relay | Yes |
| Protection | Short circuit, overload, high and low battery voltage, overtemperature, AC voltage on output and excessive DC ripple |
| Parallel Operation | Not supported |
| Dimensions & Installation | |
| Dimensions (H × W × D) | 533 × 285 × 150mm |
| Weight | 19kg |
| Ingress Protection | IP21 |
| Operating Temperature | -40°C to +65°C, with output derating at higher temperatures |
| Cooling | Fan-assisted |

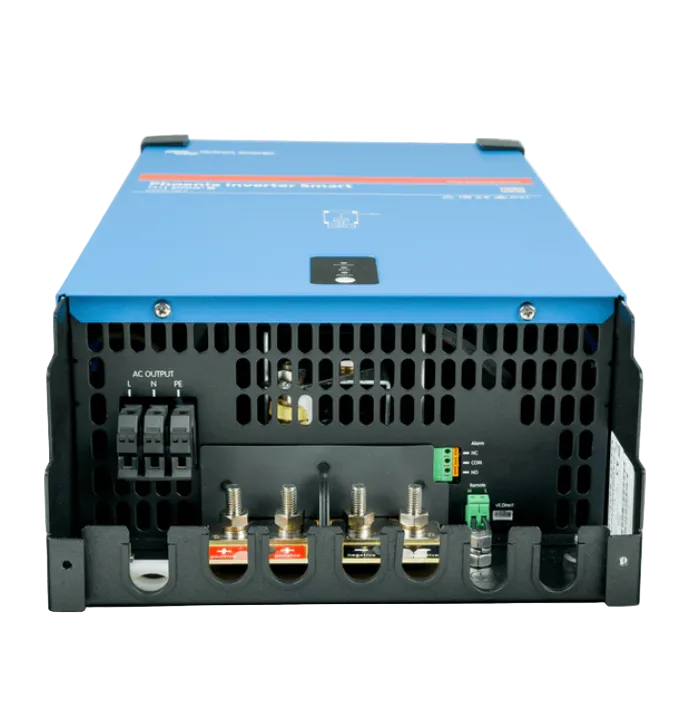

| Battery Connections | 2 positive and 2 negative M8 terminals |
| AC Connections | Screw terminals |
Power ratings are based on manufacturer-specified conditions. Actual output and runtime depend on ambient temperature, battery voltage, battery capacity, installation and connected loads.
