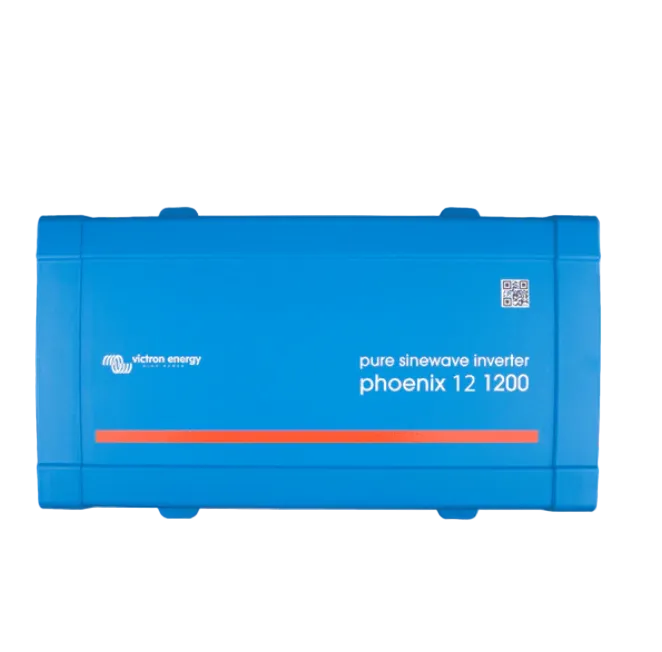

Victron 12V 1200VA Phoenix Inverter 12/1200 VE.Direct AU/NZ
The Victron 12V 1200VA Phoenix Inverter converts 12V battery power into 230V AC, giving you dependable mains-style power wherever your setup takes you. Ideal for caravans, 4WD touring, boats and off-grid cabins, it allows you to run everyday appliances directly from your leisure or house battery system.
Built with Victron’s proven inverter design, this unit combines reliability, clean output and advanced configurability in a compact and durable package.
Proven Durability and Safety
The Phoenix Inverter uses a full bridge and toroidal transformer topology, delivering stable pure sine wave output with strong surge capability. It is protected against:
• Short circuits
• Overheating
• Overload conditions
Designed for demanding environments, it’s built to handle real-world touring and off-grid use.
High Start-Up Power
This inverter delivers strong surge capacity, making it suitable for starting more challenging loads such as:
• LED lamp drivers
• Halogen lighting
• Small power tools
• Power supply units and chargers
Its high start-up performance ensures reliable operation even when loads have higher inrush currents.
Intelligent ECO Mode
In ECO mode, the inverter automatically switches to standby when load demand drops, significantly reducing idle consumption. It then reactivates as soon as a load is detected.
ECO mode settings, including sensitivity and delay, can be adjusted to suit your system requirements.
Remote On/Off Capability
A remote on/off switch can be connected for convenient activation and shutdown without accessing the inverter directly. Ideal for hidden or hard-to-reach installations.
LED Diagnostic System
An intuitive LED display provides quick visual status updates for operation, alarms and fault conditions, allowing fast troubleshooting when required.
Easy Installation

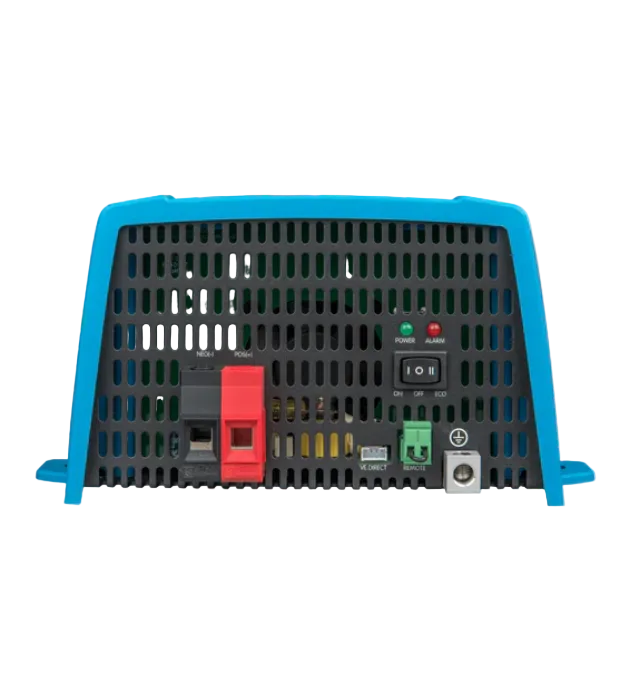

DC connection is made via screw terminals, allowing straightforward installation without specialised connectors.
Advanced VE.Direct Communication
The integrated VE.Direct communication port allows connection to:
• Computers (with optional VE.Direct to USB interface cable)
• Apple and Android devices (with optional VE.Direct Bluetooth Smart dongle)
This enables configuration, monitoring and diagnostics directly from compatible devices.
Full Configuration and Monitoring
When connected via VE.Direct to USB or Bluetooth dongle, the inverter can be customised to suit your system:
• Adjustable low battery voltage alarm
• Custom cut-off and restart levels
• Dynamic cut-off for load-dependent management
• Adjustable output voltage (210–245V)
• Selectable frequency (50Hz or 60Hz)
Real-time monitoring includes input voltage, output voltage, load percentage and alarm status.
Whether you’re running appliances in a caravan, powering tools remotely or building an off-grid setup, the Victron Phoenix 12/1200 delivers clean, reliable power backed by proven engineering.
