Victron PWM Solar Charge Controller — 10A / 20A / 30A

A reliable solar charge controller designed for 4x4, caravan, RV and off-grid setups — featuring a clear LCD display, adjustable load output, dual USB ports, and full compatibility with AGM, GEL, Flooded and LiFePO₄ batteries. Available in 10A, 20A, and 30A models to suit systems of any size — all backed by a 5-year manufacturer warranty.

Choose Your Output Rating

• 10A – Ideal for smaller 12V systems running a few accessories, lights, or a compact fridge.

• 20A – Perfect for medium touring or van setups with moderate solar input and accessory loads.

• 30A – Built for larger canopy, camper, or off-grid systems with higher current demands.

Select your preferred amperage from the dropdown menu above to match your system’s requirements.

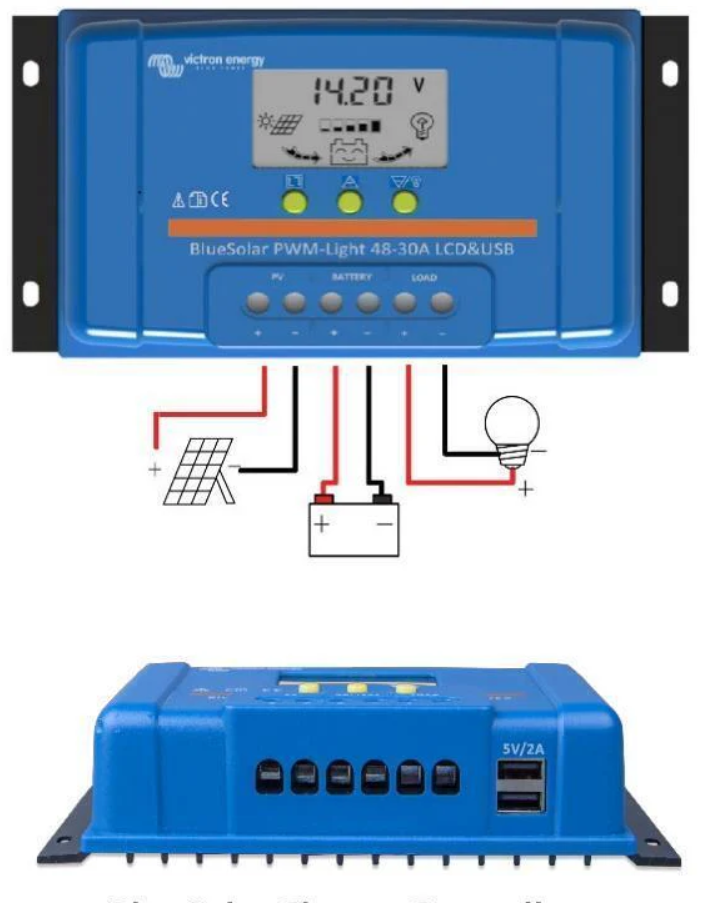

Liquid Crystal Display (LCD)

Provides real-time status monitoring and easy setup, displaying charging status, battery voltage, and load information for complete system visibility.

Load Output Control

Protects your battery from over-discharge by disconnecting loads when voltage reaches a preset limit. Adjustable connect and disconnect voltages allow fine-tuning for your battery type.
For inverters or high-draw equipment, direct battery connection is possible, with the inverter’s remote control linked to the load output.

Day/Night Timing Function

Offers a programmable ON-time after dusk — ideal for automatic lighting or timed accessories when camping or parked overnight.

Programmable Battery Charge Algorithm

Pre-configured for AGM, GEL, Flooded, and LiFePO₄ batteries (with internal BMS only). Selectable charging profiles optimise efficiency, safety, and long-term battery health.

Dual 5V USB Outputs

Includes two USB outlets (maximum combined output 2A) for powering or charging small devices such as phones, GPS units, or LED lighting directly from your system.

PWM Technology

Victron PWM Solar Charge Controllers are a dependable choice for 12V and 24V solar systems where the solar panel voltage closely matches the battery’s charging voltage.
Using advanced Pulse Width Modulation (PWM) technology, these controllers deliver precise charge regulation — preventing overcharging, maintaining consistent voltage, and extending battery life.

For systems where panel and battery voltages differ significantly (e.g. pairing a 12V battery with a 24V solar panel), a Victron MPPT controller is recommended for higher charging efficiency.

Built tough for Australian touring conditions and backed by a 5-year manufacturer warranty for lasting reliability and peace of mind.
