Sunman eArc 85W Flexible Solar Panel – Mono-PERC (9V)

Free Vented Gap Kit Included!

The Sunman eArc 85W Flexible Solar Panel is a lightweight, compact Mono-PERC panel designed for mobile and low-profile installations where traditional framed panels aren’t suitable. Built using Sunman’s advanced composite construction, this panel delivers durability and efficiency without glass or heavy aluminium framing.

Important Charging Information – 9V Panel

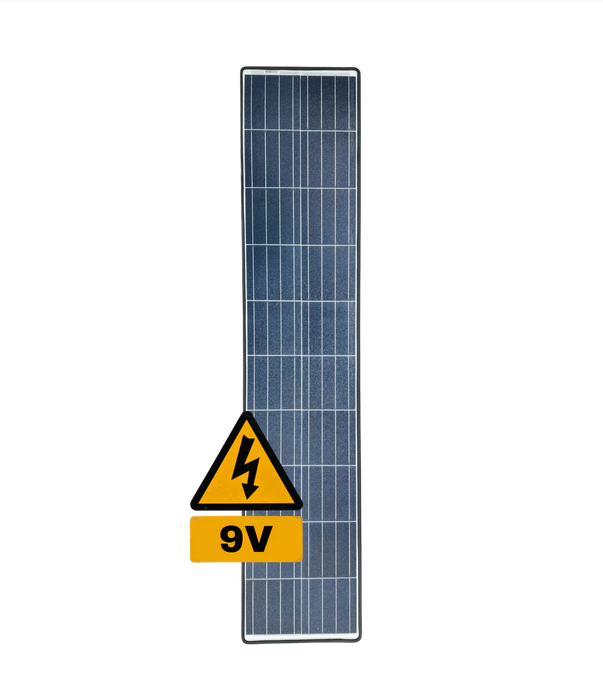

The 85W eArc panel operates at 9V, which means there are specific requirements when charging a 12V battery system:

Option 1 – Series Wiring (Most Common):
Two 85W panels can be wired in series to produce approximately 18V, making them compatible with standard PWM or MPPT solar controllers such as:

• Victron SmartSolar MPPT 75/15

• Victron PWM USB & LCD 20A

Option 2 – Voltage Boosting Controller:
A dedicated voltage-boosting solar controller may be used, however these units are uncommon and typically more expensive (e.g. Genasun GVB series).

Compatible DC-DC Systems:
Some REDARC systems, including select BCDC12XXD and Manager30 models, are capable of charging from a single 9V panel. Always check your controller manual to confirm compatibility before installation.

New Generation Mono-PERC Technology

This eArc panel uses compact, high-efficiency Mono-PERC cells to improve output and performance across a wider range of light conditions. The flexible design allows installation on curved or irregular surfaces, making it well suited to caravans, motorhomes, marine vessels, buses, trains, and other mobile platforms.

Key Features

• Lightweight, flexible construction

• High-efficiency monocrystalline Mono-PERC cells

• Durable composite build with no glass or rigid frame

• Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency

• Clean Energy Council (CEC) approved for residential and commercial use

• Warranty: 10 years for building installations, 5 years for mobile applications

Advanced Composite Construction

Sunman eArc panels are manufactured using a patent-pending composite material similar to aircraft window construction. This provides excellent strength and weather resistance while remaining lightweight and flexible, making installation easier and reducing stress on mounting surfaces.

Mounting & Included Vented Gap Kit

A Vented Gap Kit is included with this panel and must be installed in accordance with Sunman’s mounting instructions.

• Improves airflow beneath the panel

• Reduces surface temperature and heat build-up

• Helps maintain long-term efficiency and panel lifespan

• Includes high-bond double-sided adhesive tape and polycarbonate strips

• Adds approximately 15mm of mounting height

Experience the difference of Sunman eArc flexible solar panels and enjoy a reliable, low-profile solar solution designed for real-world touring and mobile power applications.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.

Specifications
