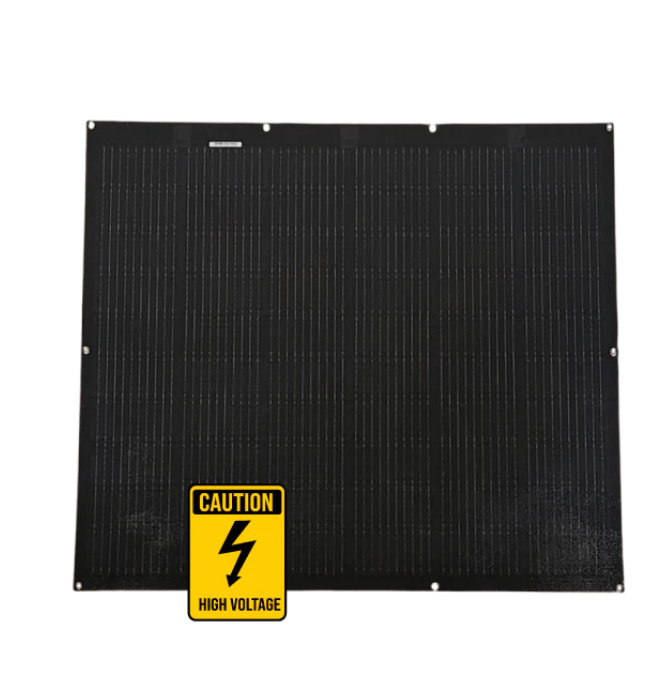

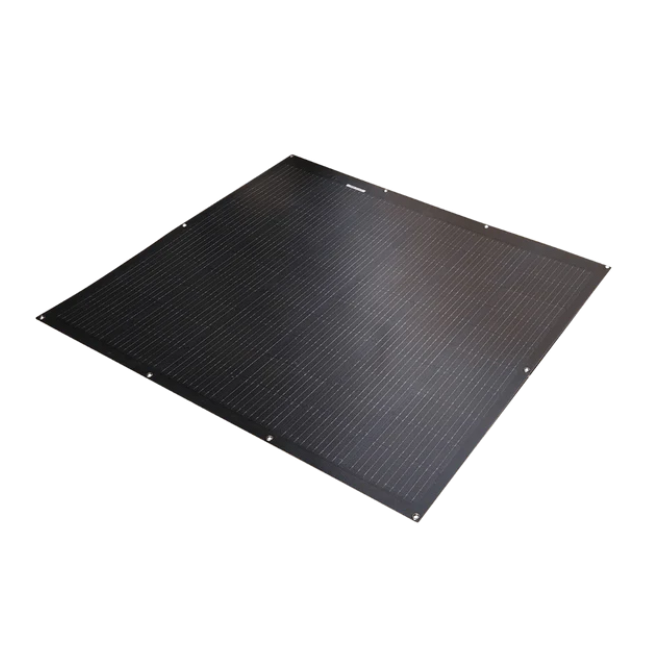

Sunman eArc 200W Black Square Flexible Solar Panel

The Sunman eArc 200W Black Square Flexible Solar Panel delivers high-efficiency solar performance in a compact, lightweight, and durable design. Built using advanced Mono-PERC cell technology, this panel is ideal for mobile and space-constrained installations including caravans, motorhomes, marine vessels, buses, and other off-grid or transport-based systems.

Unlike traditional glass solar panels, the Sunman eArc range uses a patent-pending composite material similar to aircraft window construction. This allows the panel to remain exceptionally strong and weather resistant without the weight, fragility, or rigidity of glass and aluminium frames.

The result is a flexible solar panel that is easier to handle, easier to mount, and better suited to real-world touring and mobile power applications.

Key Features

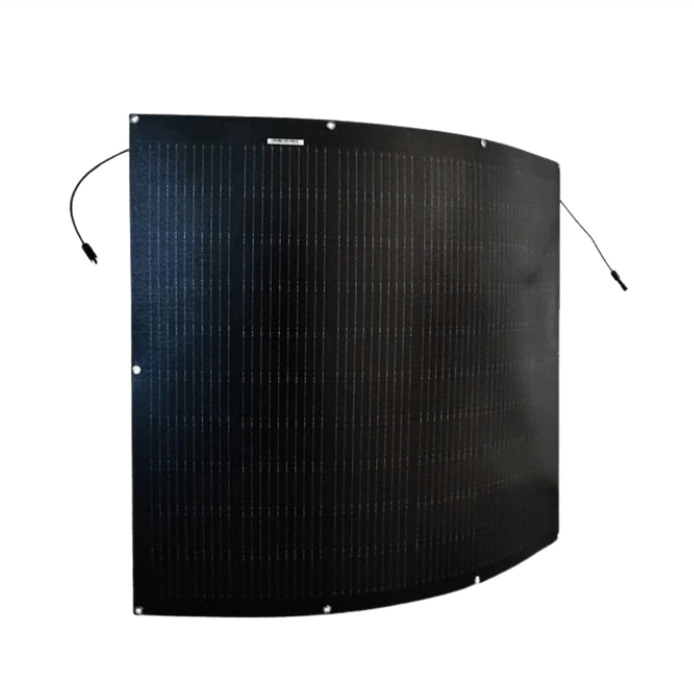

  • Lightweight, low-profile construction designed for mobile and curved surfaces

  • High-efficiency monocrystalline Mono-PERC solar cells

  • Flexible design without glass or heavy framing

  • Factory-fitted eyelets for secure mechanical mounting

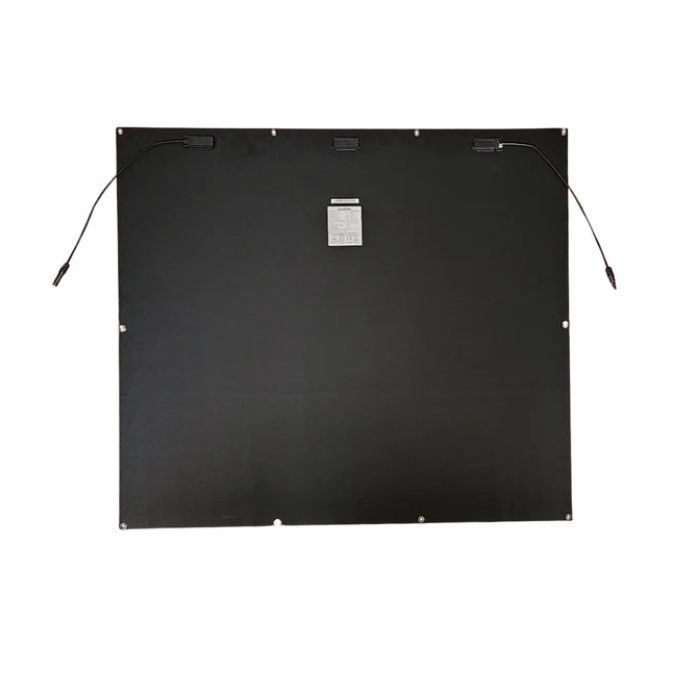

  • Junction box positioned underneath for a clean installation

  • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency

  • Clean Energy Council (CEC) approved for residential and commercial use

  • Warranty: 10 years for building installations, 5 years for mobile applications

Mounting

The Sunman eArc panel is designed for permanent lightweight installations and should be mounted according to Sunman's current installation requirements. Please refer to our Flexible Solar Panel Installation Guide.

In some cases, minor manufacturing variations may occur between production batches. If you are adding this panel to an existing solar array, we recommend contacting our team to confirm compatibility and avoid mismatched output characteristics.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up, we’re 4WDers too and happy to help.

Specifications

Model SMF200J-6X10DB-Se
Solar Cells 40 (4 × 10)
Maximum Power (Pmax) 200 W
Maximum Power Voltage (Vmp) 34.7 V
Maximum Power Current (Imp) 5.78 A
Open-Circuit Voltage (Voc) 41.1 V
Short-Circuit Current (Isc) 6.66 A
Operating Temperature -40°C to 85°C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance 0 / +5 W
Backsheet White
Junction Box IP68 rated (each j-box has one bypass diode)
Output Cables PV cable 4.0 mm², (+)150 mm / (-)450 mm
Connector MC4 compatible

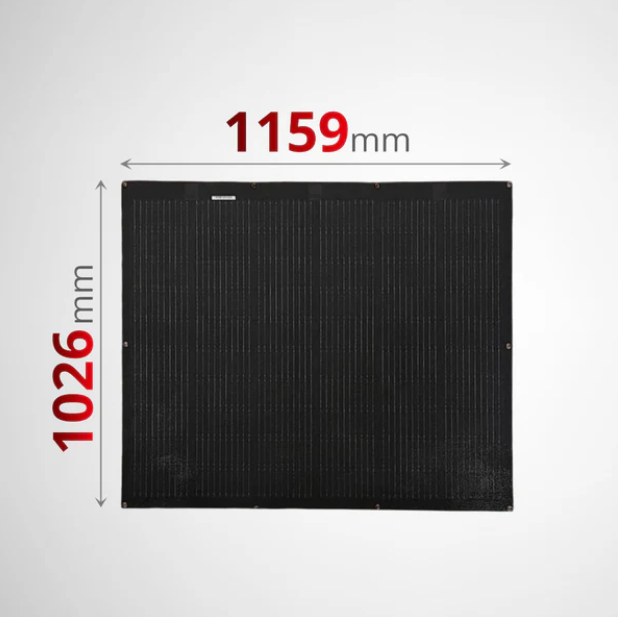

Dimensions (L × W × H) 1159 × 1026 × 2 mm
Dimensions incl. Junction Box (L × W × H) 1159 × 1026 × 22 mm
