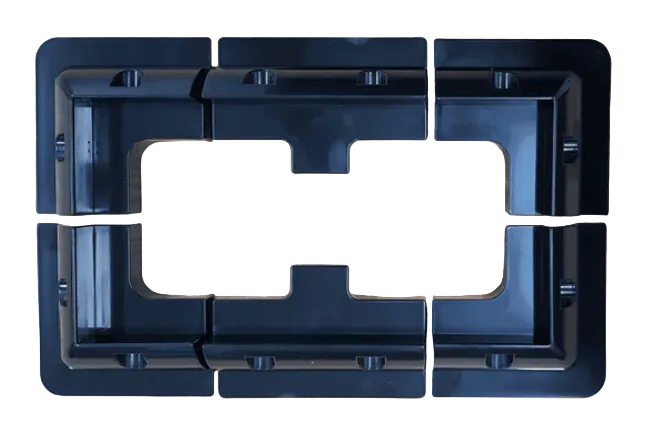

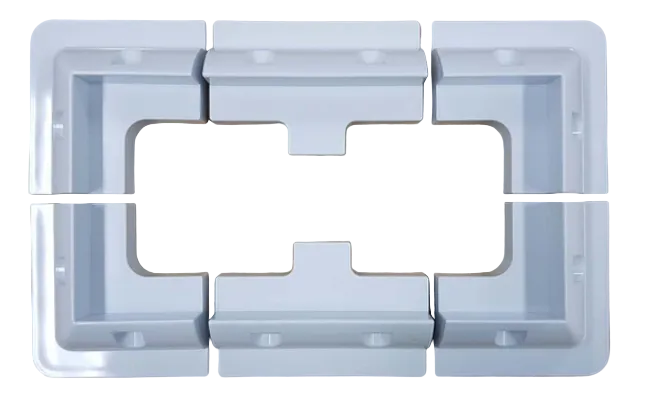

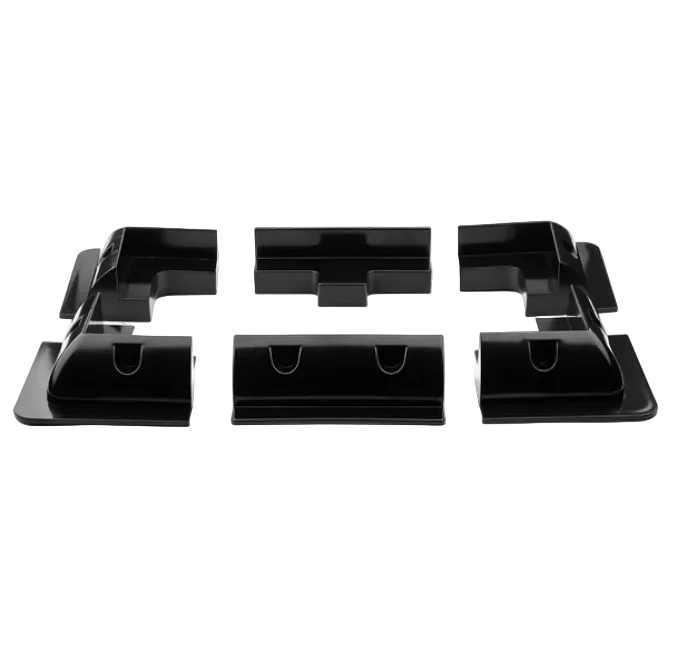

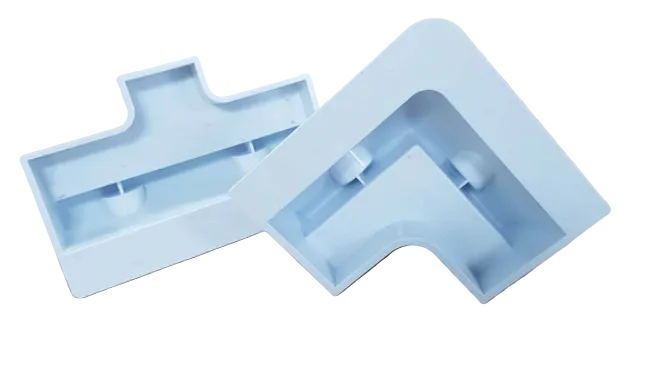

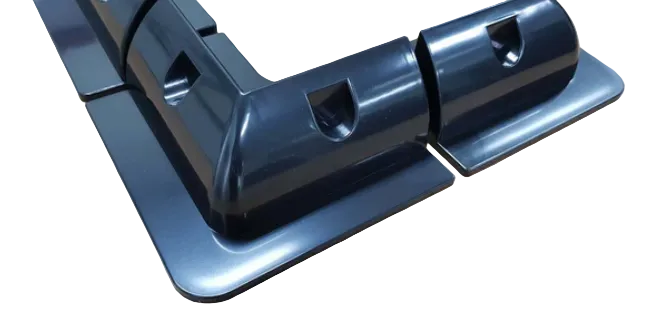

Secure your solar panels with confidence using the Exotronic ABS Plastic Corner and Mid Brackets, available in black or white to suit your build. Designed for glass-faced and rigid solar panels, these heavy-duty brackets provide a strong, compliant, and low-stress mounting solution for vehicles and off-grid installations.

Ideal for caravans, camper trailers, 4WDs, motorhomes, and marine applications, these brackets are engineered to handle real-world touring conditions while maintaining panel integrity over time.

Key Features

Heavy-Duty ABS Construction
Manufactured from high-strength ABS plastic, these brackets are built to withstand vibration, road impacts, emergency braking, and the stresses of daily travel.

Black or White Finish
Available in both black and white to match your vehicle, roof colour, or aesthetic preference.

Versatile Panel Compatibility

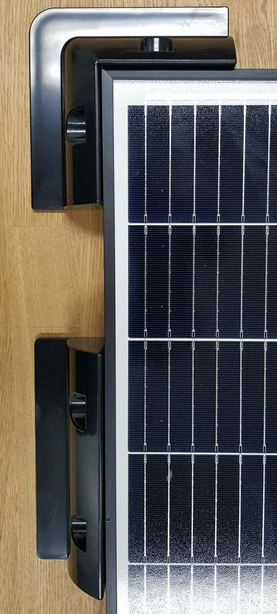

Suitable for a wide range of panel sizes. For larger panels, best practice is:

• Position brackets 10–20% in from each corner on the long sides

• Position brackets approximately one cell in from the corners on the short sides

This helps distribute load evenly and reduces stress on the panel frame.

Compliant, Secure Fixing (AS5033)
In line with Australian and New Zealand standard AS5033, a dual fixing method of adhesive and mechanical fasteners is recommended. This approach minimises stress concentrations while providing maximum holding strength.

Adhesive and Screw Installation

• Panels are fixed to the brackets using screws

• Clean both the substrate and brackets thoroughly with isopropyl or methylated spirits

• Use Fix15, marine-grade Sikaflex, or a suitable MS polymer adhesive

• Allow full cure time to accommodate surface irregularities and ensure long-term adhesion

Stress-Reducing Installation Method
To reduce stress transfer:

• Drill clearance holes in the bracket

• Fill holes with adhesive

• Drive the tek screw into the mounting surface, maintaining a small gap for adhesive to fully bond

This method improves durability and helps prevent cracking or fatigue over time.

Important Notes

• Some roof substrates may require reinforcement or alternative fasteners (such as toggle bolts) to meet AS5033 requirements

• Always confirm roof construction and fastener suitability before installation

With Exotronic ABS Plastic Corner and Mid Brackets, you get a durable, compliant, and installer-friendly mounting solution — designed to keep your solar panels secure on and off the road.
