BMPRO SmartConnect RV Sensor Kit

The BMPRO SmartConnect RV Sensor Kit adds wireless tyre pressure, gas bottle level and temperature monitoring to a compatible BMPRO smart RV system.

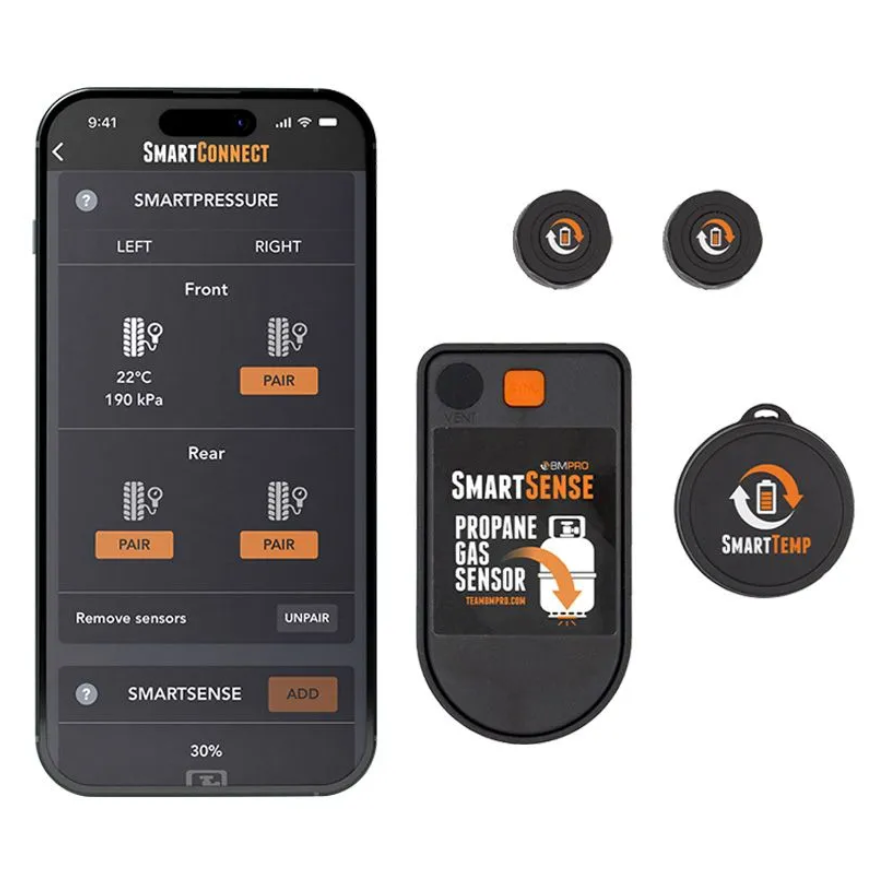

The kit includes one SmartSense gas bottle sensor, one SmartTemp temperature sensor and two SmartPressure tyre pressure sensors, allowing several important parts of your caravan or camper to be monitored from the same BMPRO interface.

It is a useful upgrade for compatible JHub, Odyssey, JAYCOMMAND, RVMaster and BMPRO Connect systems, particularly if your caravan already has the required BMPRO communication hardware installed.

Monitor More From One System

Rather than relying on separate gauges and monitoring devices, SmartConnect brings several common touring measurements into your existing BMPRO system.

Tyre pressure and tyre temperature can be monitored through the SmartPressure sensors, remaining LPG level through SmartSense, and temperature in areas such as the fridge, freezer, cabin or storage compartment through SmartTemp.

Once paired, the sensor information is available through the compatible BMPRO system and app already used in the RV.

SmartPressure Tyre Monitoring

Two SmartPressure sensors are included and install externally onto the tyre valves.

Each sensor monitors tyre pressure and internal tyre temperature while travelling. BMPRO specifies a maximum operating pressure of 99PSI.

When stationary, the sensors normally transmit every ten minutes. While moving they update every minute or less, and a pressure change of approximately 5kPa triggers updates every five seconds or less.

The sensors use replaceable CR1632 batteries.

SmartSense Gas Bottle Monitoring

The included SmartSense sensor attaches underneath a compatible LPG bottle and uses ultrasonic sensing to determine the remaining liquid level.

BMPRO currently specifies support for common 3.7kg and 8.5kg LPG bottle sizes.

The sensor uses a replaceable CR2032 battery and can also be used within a compatible ProSmart system.

SmartTemp Temperature Monitoring

SmartTemp can be placed wherever temperature information is useful around the caravan or camper.

Common uses include monitoring fridge or freezer temperature, sleeping areas, storage compartments or general cabin temperature.

The sensor operates from minus 20°C to plus 55°C and uses a replaceable CR2477 battery.

Compatibility

SmartConnect is designed to work with an existing compatible BMPRO monitoring system. It is not a complete standalone monitoring system by itself.

Current BMPRO compatibility includes JHub, Odyssey, JAYCOMMAND, RVMaster and BMPRO Connect. SmartConnect sensors can also be added to a ProSmart system.

For Australian installations, JHub users require a ControlNode103 and Odyssey users require an OdysseyLink105.

Compatible JHub tablet models include BMPRO7Q2 and BMPRO7DI.

Simple Aftermarket Upgrade

SmartConnect sensors communicate wirelessly using Bluetooth, so adding the kit does not require running sensor wiring throughout the caravan.

The supplied tyre sensor toolkit assists with installing the SmartPressure sensors, while SmartSense and SmartTemp can be positioned and paired through the compatible BMPRO system.

This makes the kit particularly useful for adding additional monitoring to an existing BMPRO equipped caravan without replacing the main power management or control system.

What's Included

1 × BMPRO SmartSense gas bottle level sensor
1 × BMPRO SmartTemp temperature sensor
2 × BMPRO SmartPressure tyre pressure sensors
1 × SmartPressure installation toolkit
