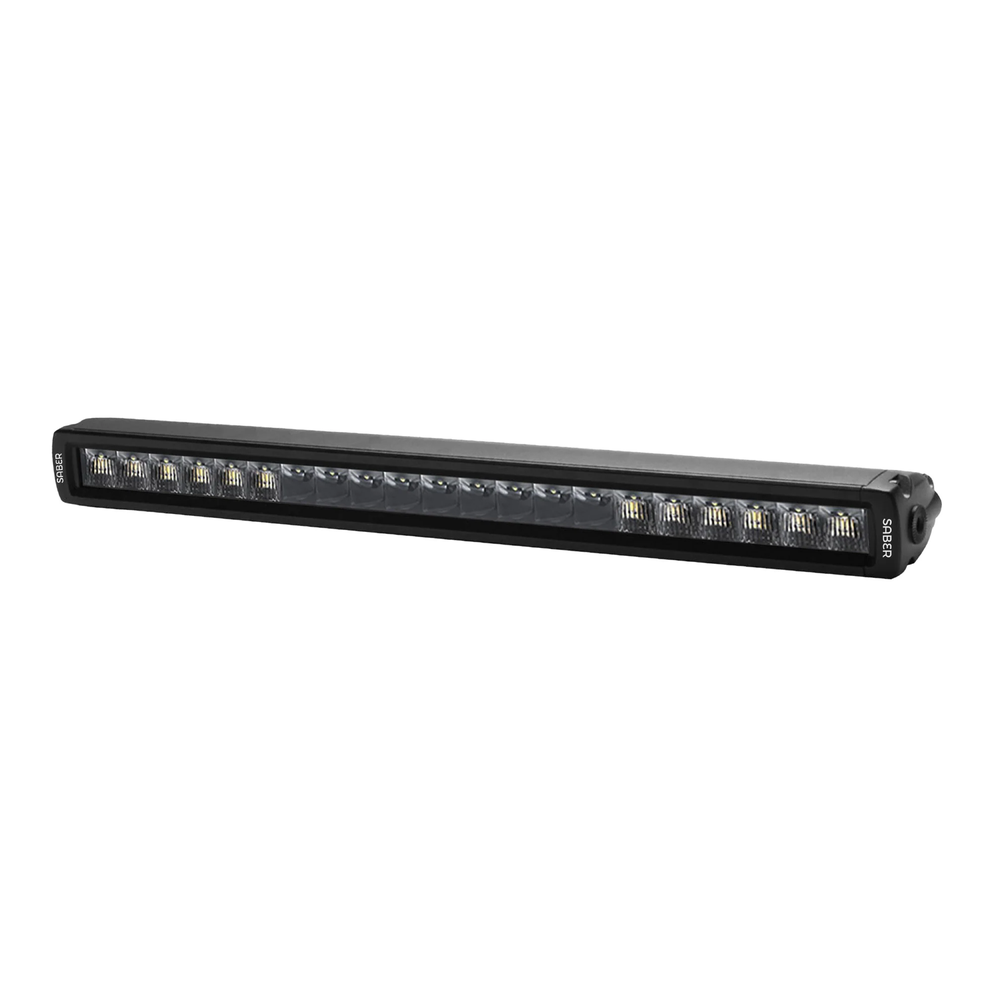

Saber Bushmaster 20" Combo Beam LED Light Bar

The Saber Bushmaster 20" Combo Beam Light Bar gives you a useful mix of distance and spread lighting without the bulk of a larger double-row light bar. Its slim single-row design uses high-output OSRAM LEDs with a combination beam pattern, throwing useful light further down the road while still providing illumination across the shoulders of the track. With up to 7,520 lumens of output, it's a practical addition for night touring, highway driving and off-road use where your factory high beams could use some help. An extruded aluminium housing, integrated bezel and high ingress protection make it well suited to permanent installation on a touring 4WD.

Key Features

• 20" single-row LED light bar
• Combo beam for a balance of distance and spread
• Up to 7,520 lumens output
• 21 high-output OSRAM LEDs
• Slim-profile design
• Lightweight extruded aluminium housing
• Screwless design with integrated bezel
• IP67 / IP69K water and dust protection
• Male and female DT connectors included
• Heavy-duty mounting bracket and hardware included

Distance and Spread in One Light

A combo beam sits between a dedicated spot and flood setup. The centre of the beam concentrates light further down the road or track, while the wider portion helps illuminate road edges, corners and the surrounding terrain. For a touring vehicle where one light bar needs to handle highway driving, dirt roads and general off-road use, that makes a combo beam a particularly versatile option.

Slim Single-Row Design

The Bushmaster uses a single row of LEDs rather than the deeper double-row layout commonly found on larger light bars. That keeps the overall profile lower and makes it easier to position in tighter locations such as:

• Bull bars
• Nudge bars
• Roof platforms
• Grilles
• Under-rack mounting positions

The slim construction is particularly useful where you want additional lighting without a large light bar dominating the front of the vehicle.

High-Output OSRAM LEDs

The 20" Bushmaster uses 21 high-output OSRAM LEDs with a rated output of up to 7,520 lumens. Combined with the dedicated combo optics, the aim isn't simply to create as much foreground brightness as possible, but to put useful light both ahead of the vehicle and across the surrounding track.

Built for Life on a 4WD

An auxiliary light mounted outside the vehicle is constantly exposed to vibration, dust, water and weather. The Bushmaster uses an extruded aluminium housing and carries IP67/IP69K protection against dust and water ingress, helping make it suitable for vehicles that regularly see corrugations, rain, mud and dusty tracks. The screwless integrated bezel also gives the light bar a clean, low-profile finish.

Ready to Mount

A heavy-duty mounting bracket and associated hardware are supplied with the light bar, along with male and female DT connectors for the electrical connection. A complete high-beam wiring harness is not listed as part of the supplied kit, so allow for an appropriate wiring harness, relay, fuse and switching arrangement when planning the installation.

Specifications
