BMPRO PurePro3000W Pure Sine Wave Inverter with RCD & Transfer Switch
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
Product details

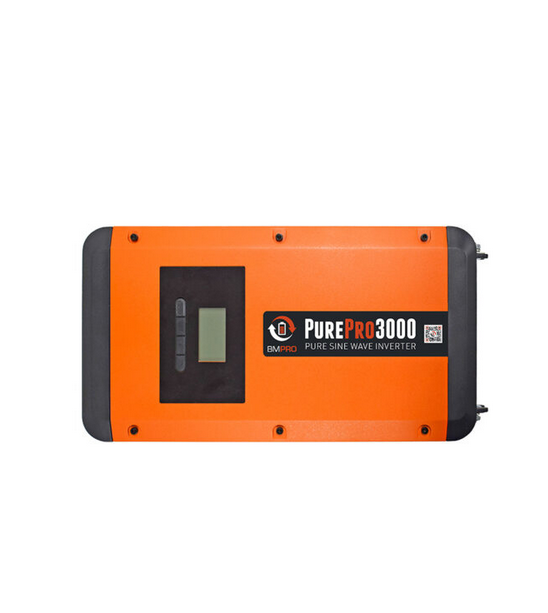

The BMPRO PurePro3000 converts a 12V battery system into up to 3000W of clean 240V pure sine wave power, giving caravans, campers and larger off grid setups the capacity to run higher demand appliances away from mains power.
With 6000W peak output, an integrated RCD, automatic AC transfer switch and remote control panel included, it is more than a basic standalone inverter. The PurePro3000 can automatically switch its connected loads between mains power and battery supplied inverter power, making it particularly useful in permanently installed touring electrical systems.
3000W Pure Sine Wave Output
The PurePro3000 provides 240V AC pure sine wave power with total harmonic distortion below 3%. That clean waveform makes it suitable for both conventional appliances and more sensitive electronics such as laptops, chargers and medical equipment, while the 3000W continuous capacity gives it the headroom required for larger loads such as microwaves, coffee machines, hair dryers, power tools and some air conditioning systems.
Appliance startup current still needs to be considered, particularly with motors and compressors, but the inverter provides up to 6000W peak output for short surge loads.
Automatic AC Transfer Switch
An integrated automatic transfer switch allows the PurePro3000 to change the connected AC loads between mains power and inverter power.
When suitable mains power is available, the inverter passes that supply through to its outputs. If mains power is lost or falls outside the accepted range, the PurePro switches back to battery powered inverter operation. BMPRO specifies a maximum transfer time of less than 30 milliseconds.
This makes it particularly useful in caravan and camper installations where the same appliances may be powered from mains electricity at a powered site and from the battery system while camping off grid.
Integrated RCD Protection
The PurePro3000 includes an integrated residual current device and complies with AS/NZS 4763. BMPRO states that this allows the inverter to supply fixed connections in transportable structures and vehicles in accordance with AS/NZS 3001 when installed by a licensed electrician. Any fixed 240V wiring, mains transfer wiring or connection to an RV electrical installation must be completed by an appropriately licensed electrician.

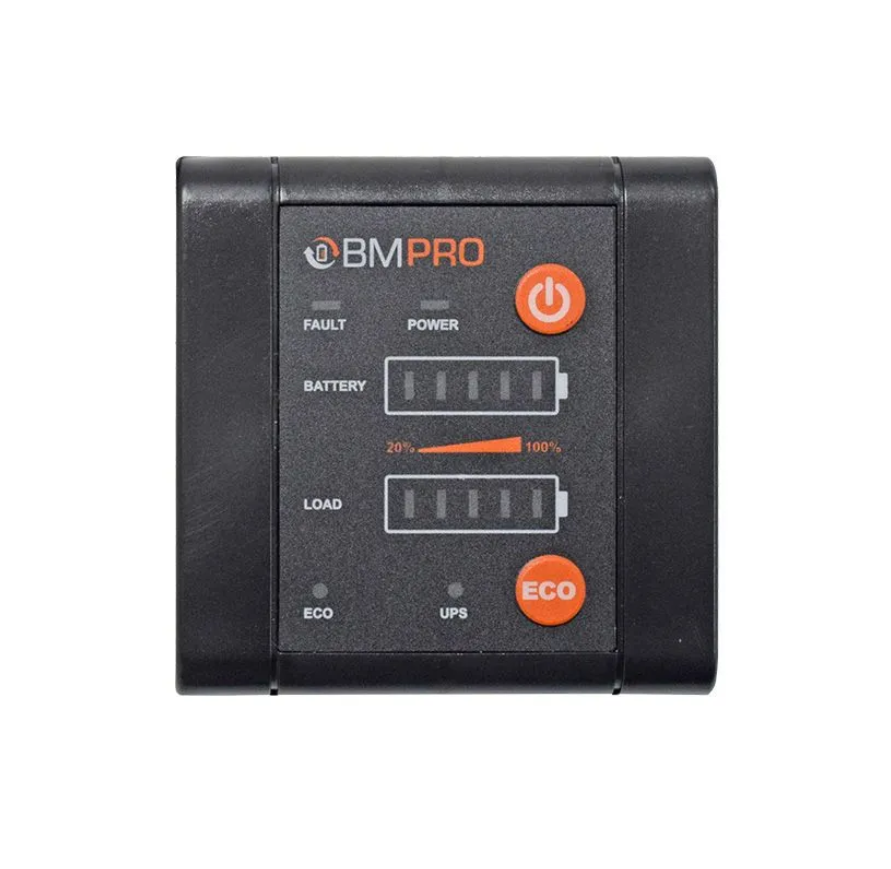

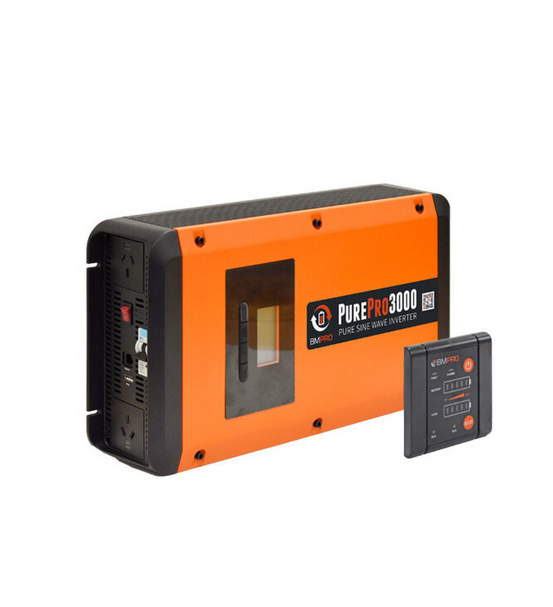

LCD and Remote Control
The onboard LCD provides access to information including input voltage, AC output voltage, output current, power and load percentage. A separate remote panel is included, allowing the inverter to be switched on and off from a more convenient location. It also provides approximate battery and load indication and access to Eco mode. A 5m data cable is supplied for the remote panel.
Eco Mode
At idle, a large inverter can consume a noticeable amount of battery capacity even when no appliances are being used. Normal no load consumption is less than 2A, while Eco mode reduces standby draw to below 0.35A. In Eco mode the inverter periodically checks for a connected load and begins supplying continuous AC power once the load reaches approximately 50W. For systems that spend long periods waiting for an appliance to be used, that can significantly reduce unnecessary battery consumption.
Battery and Cabling Requirements
A 3000W inverter places serious demand on a 12V battery system.
BMPRO specifies a nominal input current of 280A and recommends a minimum battery capacity of 300Ah. The battery itself, BMS, interconnections, isolators and protection devices must all be capable of safely supplying the required current. For the PurePro3000, BMPRO specifies 95mm² stranded DC input cable, a 350A DC input fuse and a maximum battery cable length of 1500mm.
This is an important part of the installation. A 300Ah battery capacity alone does not guarantee compatibility if its BMS or discharge rating cannot support the inverter load.
Built In Protection
The PurePro3000 monitors the system for overvoltage, undervoltage, reverse polarity, output short circuit, excessive temperature and overload conditions. Fan speed is controlled according to load and temperature rather than simply running continuously, helping manage heat and noise as inverter demand changes.

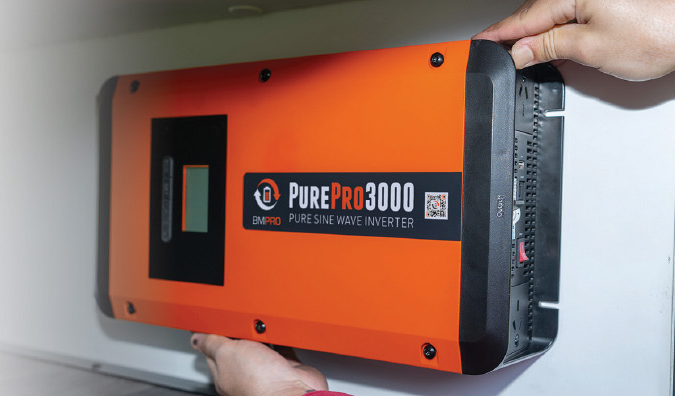

Installation Note
The PurePro3000 should be installed in a dry, clean and well ventilated location. BMPRO specifies at least 30mm clearance around the cooling fans.
If the automatic transfer switch or fixed 240V wiring is being used, installation must be completed in accordance with BMPRO's current instructions and applicable Australian electrical requirements. BMPRO also specifically warns against feeding the PurePro's AC output back into a power management system.
Shipping Australia Wide
Orders are dispatched quickly from Australia. Questions? Hit us up, we're 4WDers too and happy to help.
Specifications
| Inverter Performance | |
|---|---|
| Rated Power | 3000W |
| Peak Power | 6000W |
| DC Input Voltage | 12V DC |
| DC Input Range | 10.5 to 15.5V DC |
| Nominal Input Current | 280A |
| No Load Current | <2A Normal / <0.35A Eco Mode |
| AC Output Voltage | 220 to 240V AC |
| AC Output Frequency | 50Hz |
| AC Output Current | 12.5A |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion | <3% |
| Conversion Efficiency | 89 to 92% |
| AC Transfer & Outputs | |
| Automatic Transfer Switch | Integrated |
| Transfer Switch Input Rating | 3000W / 16A |
| Acceptable Mains Input Voltage | 200 to 260V AC |
| Maximum Transfer Time | <30ms |

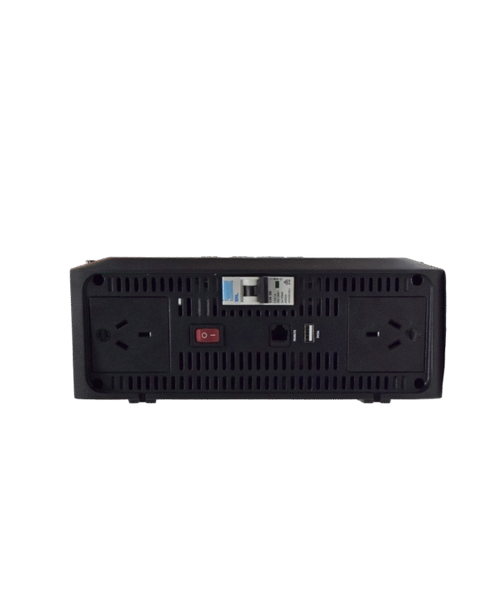

| 240V AC Outputs | 2 |
| RCD Protection | Integrated |
| USB Output | USB-A 5V DC / 2A |
| Battery & Installation | |
| Minimum Battery Capacity | 300Ah |
| Compatible Battery Types | STD, GEL, AGM & LiFePO4 |
| Recommended DC Cable | 95mm² Stranded Cable |
| Recommended DC Fuse | 350A |
| Maximum DC Cable Length | 1500mm |
| Minimum Earth Conductor | 2.5mm² |
| Monitoring & Protection | |
| Display | Multi Function LCD |
| Remote Control Panel | Included |
| Remote Data Cable | 5m |
| Eco Mode | Yes |
| Protection | Overvoltage, Undervoltage, Reverse Polarity, Short Circuit, Over Temperature & Overload |
| Cooling | Load & Temperature Controlled Fan Cooling |
| Dimensions & Construction | |
| Dimensions | 520 × 265 × 101mm |
| Weight | 5.5kg |
| Ingress Protection | IP22 |
| Operating Temperature | 0°C to +50°C* |
| Additional Information | |
| Brand | BMPRO |
| Model / MPN | PUREPRO3000 |
| Barcode / GTIN | 9358381000760 |
| Compliance | AS/NZS 4763 |
| ATS Relay Compliance | IEC 61810-1 |
| Warranty | 2 Years |
