Product details

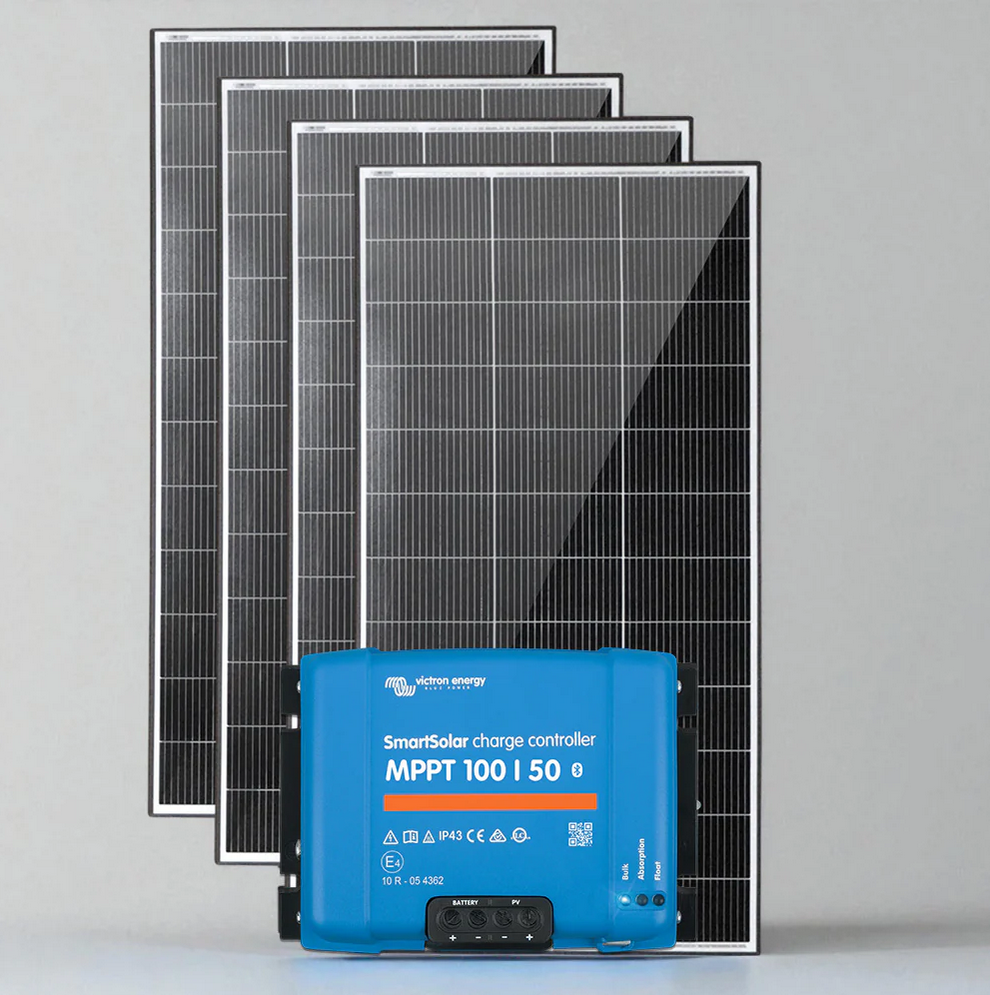

The Exotronic 4x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle is a high-capacity off-grid solution built for setups that demand serious, reliable power. Combining four N-Type TOPCon solar panels with Victron’s proven MPPT technology, this system is designed to deliver strong, consistent output across a wide range of conditions.
With a total array capacity of 800W, it’s well suited to larger caravan and RV setups, marine systems, tiny homes and off-grid installations where dependable energy is critical.
What’s Included
• 4x Exotronic 200W Fusion Series TOPCon Solar Panels
• Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
• 4x Mounting Bracket Kits
• 2x Fix15 Adhesive Sealant (White)
High-Capacity Solar Performance
Built around four Exotronic 200W panels, this bundle delivers strong daily energy production with excellent efficiency and reliability. The N-Type TOPCon cell design provides better low-light performance and slower long-term degradation, helping maintain consistent output over time.
It’s a practical option for running fridges, lighting, charging systems and other essential loads in larger off-grid setups.
Smart Charging with Victron MPPT

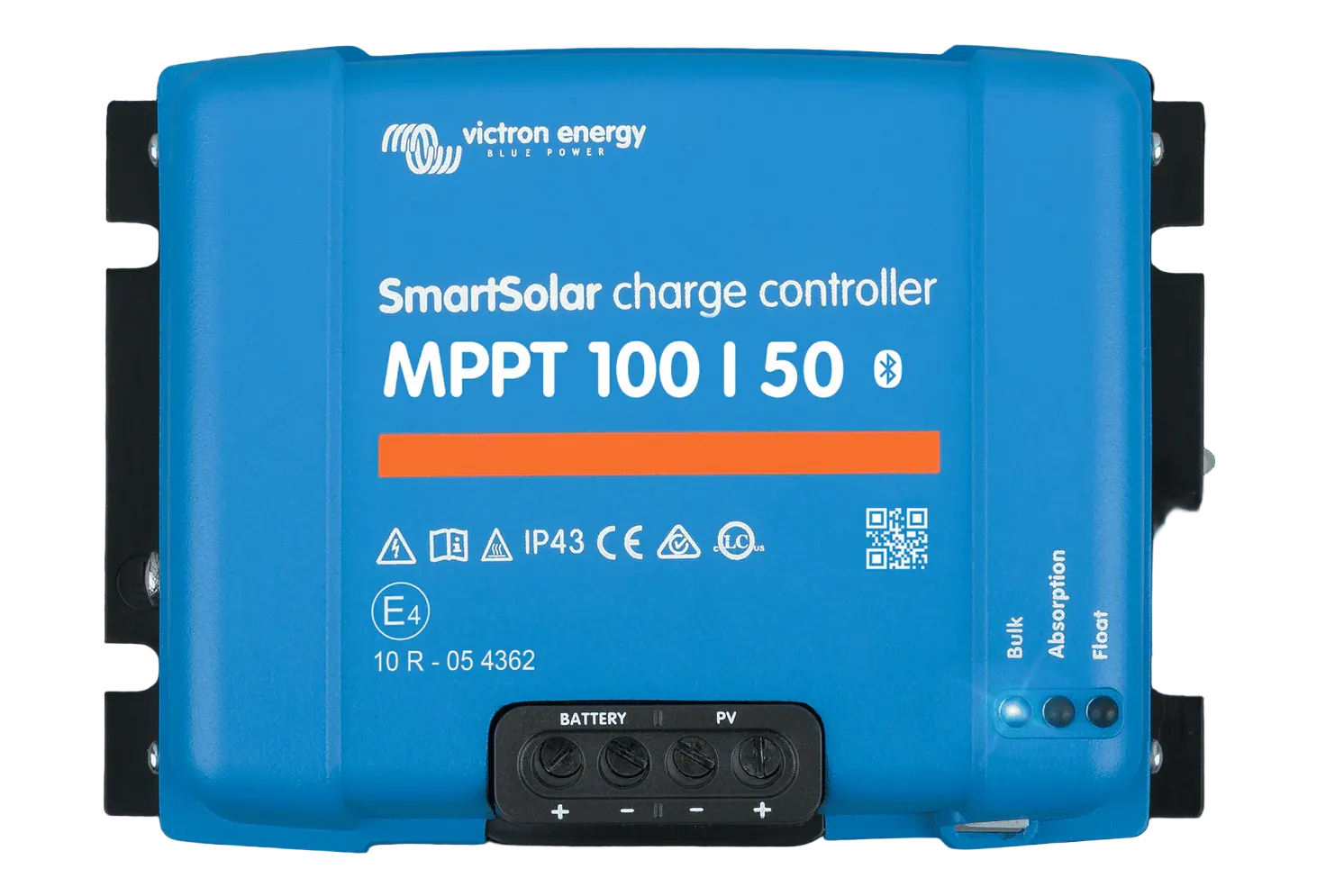

At the centre of the system is the Victron SmartSolar MPPT 100/50, designed to maximise the performance of your solar array. Using ultra-fast Maximum Power Point Tracking, it can deliver significantly higher efficiency compared to traditional PWM controllers.
Built-in Bluetooth allows you to monitor and adjust your system through the VictronConnect app, giving you real-time visibility over performance and battery health.
Built for Real-World Setups
This bundle is designed for practical use in demanding environments, whether mounted to a caravan roof, marine setup or fixed off-grid system. It offers the flexibility to scale, while maintaining reliable output across varying conditions.
Well suited to:
• Large caravan and RV solar systems
• 4WD touring setups with high power demands
• Marine and coastal installations
• Tiny homes and off-grid living setups
Reliable and Durable
Both the panels and controller are built to handle harsh environments, including vibration, heat and exposure to the elements. Combined with quality mounting hardware and sealant, this kit is designed for a clean and dependable install.
A complete, high-output solution, this bundle brings together proven components to deliver consistent performance for serious off-grid setups.
Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
200w Solar Panel Specifications
| Electrical Performance | |
|---|---|
| Rated Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18.0V |
| Maximum Power Current (Imp) | 11.11A |
| Open Circuit Voltage (Voc) | 21.0V |
| Short Circuit Current (Isc) | 12.1A |
| Dimensions & Weight | |
| Dimensions | 1320 x 670 x 25 mm |
| Weight | 8.9 kg |
| Temperature Performance | |
| NMOT | 41°C ±3°C |
| Temperature Coefficient (Pmax) | -0.37%/°C |
| Temperature Coefficient (Voc) | -0.29%/°C |
| Temperature Coefficient (Isc) | +0.05%/°C |
| Maximum Ratings | |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V DC |
| Maximum Fuse Rating | 15A |
| Construction & Build | |
| Front Glass | 3.2mm Tempered Glass |
| Frame | Black Anodised Aluminium Alloy |
| Junction Box Rating | IP65 |
| Connectors | MC4 Compatible |
Victron SmartSolar MPPT 100/50 Specifications
| Electrical Performance | |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 50A |
| Nominal PV Power (12V) | 700W |
| Nominal PV Power (24V) | 1400W |
| Maximum PV Voltage | 100V |
| Maximum PV Current | 60A |
| Maximum Efficiency | 98% |
| Charging Parameters | |
| Absorption Voltage | 14.4V / 28.8V (adjustable) |
| Float Voltage | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Protection & Operating Conditions | |
| Protection | Reverse polarity, short circuit, over temperature |
| Operating Temperature | -30°C to +60°C |
| Humidity | 95%, non-condensing |
| Build & Connectivity | |
| Data Port | VE.Direct |
| Terminals | 16 mm² (AWG6) |
| Protection Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions & Weight | |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
| Standards | |
| Compliance | EN/IEC 62109-1, UL 1741, CSA C22.2 |
