- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
- $899.00
Product details

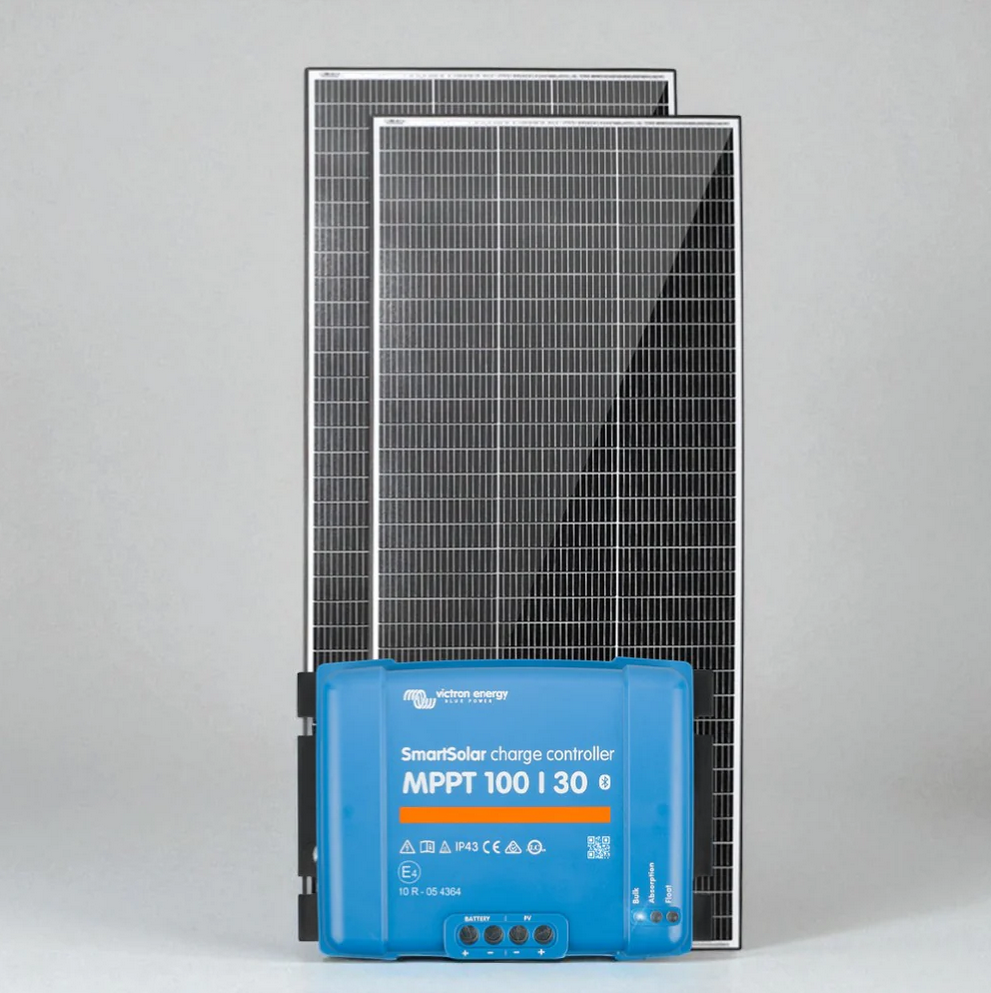

The Exotronic 2x 220W Solar Panel & Victron SmartSolar MPPT 100/30 Bundle is a high-efficiency off-grid solution built for setups that need reliable, consistent power without going overboard on system size. Pairing two N-Type TOPCon solar panels with Victron’s proven MPPT technology, it delivers strong performance across a wide range of conditions.
With a total array capacity of 440W, it’s well suited to caravans, camper trailers, 4WD touring setups and smaller off-grid systems where efficiency and dependability matter.
What’s Included
• 2x Exotronic 220W Fusion Series TOPCon Solar Panels
• Victron SmartSolar MPPT 100/30 Bluetooth Charge Controller
• 2x Mounting Bracket Kits
• 1x Fix15 Adhesive Sealant (White)
Balanced Solar Performance
Built around two Exotronic 220W panels, this bundle delivers consistent daily energy production with strong efficiency and low-light performance. The N-Type TOPCon cell design helps maintain output in less-than-ideal conditions while reducing long-term degradation.
It’s a practical setup for running fridges, lighting, charging systems and essential touring gear.
Smart Charging with Victron MPPT

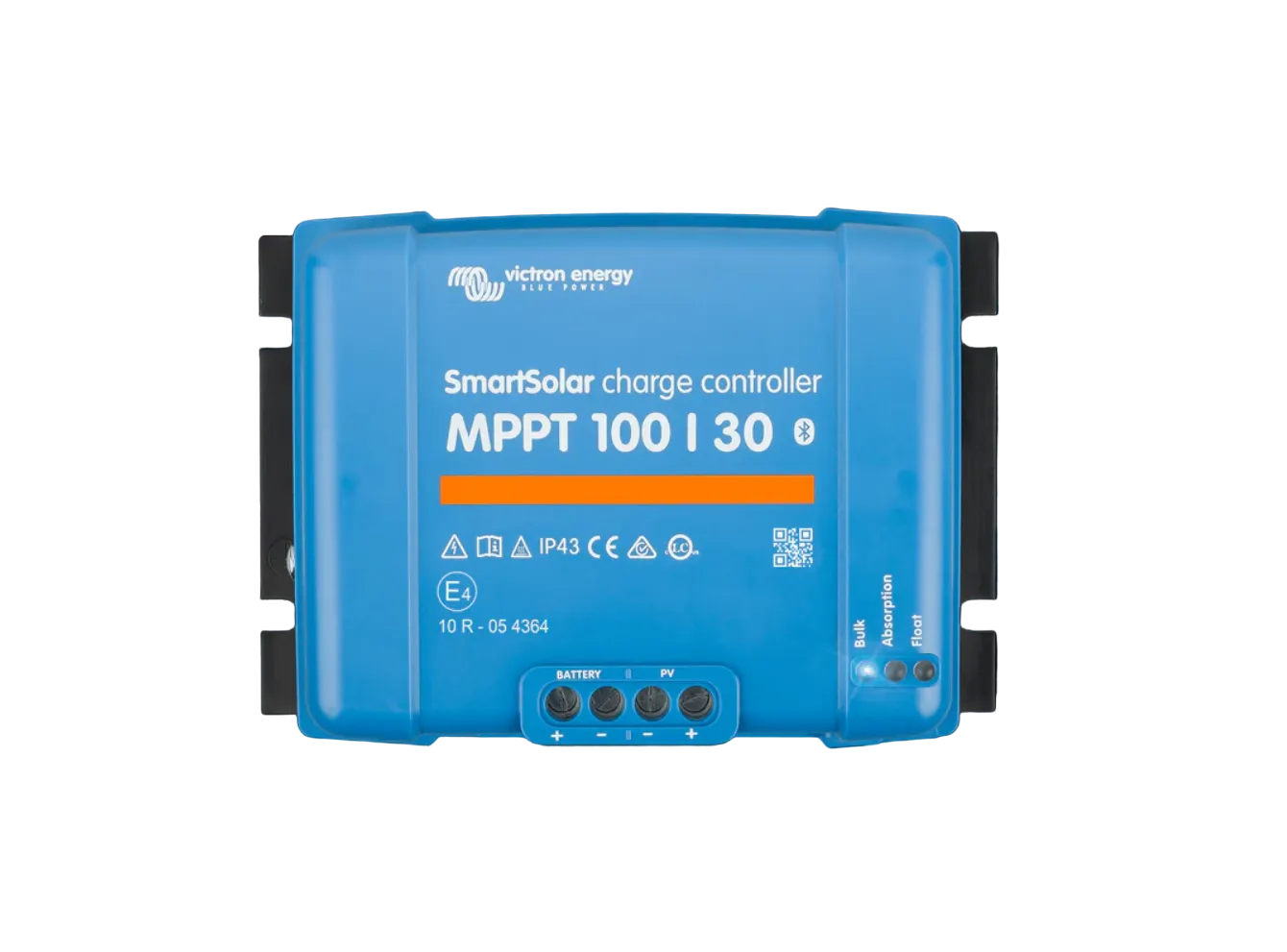

At the centre of the system is the Victron SmartSolar MPPT 100/30, designed to get the most out of your solar array. Using ultra-fast Maximum Power Point Tracking, it can significantly increase energy harvest compared to traditional PWM controllers.
Built-in Bluetooth allows you to monitor and adjust your system through the VictronConnect app, giving you real-time visibility over performance and battery health.
Built for Real-World Setups
Designed for practical installation across mobile and fixed systems, this bundle is well suited to caravan roofs, canopy setups, marine installs and small off-grid systems. It offers a strong balance between output and simplicity without overcomplicating your setup.
Reliable and Durable
Both the panels and controller are built to handle harsh environments, including vibration, heat and exposure to the elements. Combined with mounting hardware and sealant, this kit is designed for a clean, dependable install.
A well-balanced off-grid solution, this bundle delivers efficient, reliable power using proven components that are built to last.
Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
| Electrical Performance | |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 30A |
| Nominal PV Power (12V) | 440W |
| Nominal PV Power (24V) | 880W |
| Maximum PV Voltage | 100V |
| Maximum PV Current | 35A |
| Maximum Efficiency | 98% |
| Charging Parameters | |
| Absorption Voltage | 14.4V / 28.8V (adjustable) |
| Float Voltage | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Protection & Operating Conditions | |
| Protection | Reverse polarity, short circuit, over temperature |
| Operating Temperature | -30°C to +60°C |
| Humidity | 95%, non-condensing |
| Build & Connectivity | |
| Data Port | VE.Direct |
| Terminals | 16 mm² (AWG6) |
| Protection Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions & Weight | |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
| Standards | |
| Compliance | EN/IEC 62109-1, UL 1741, CSA C22.2 |
