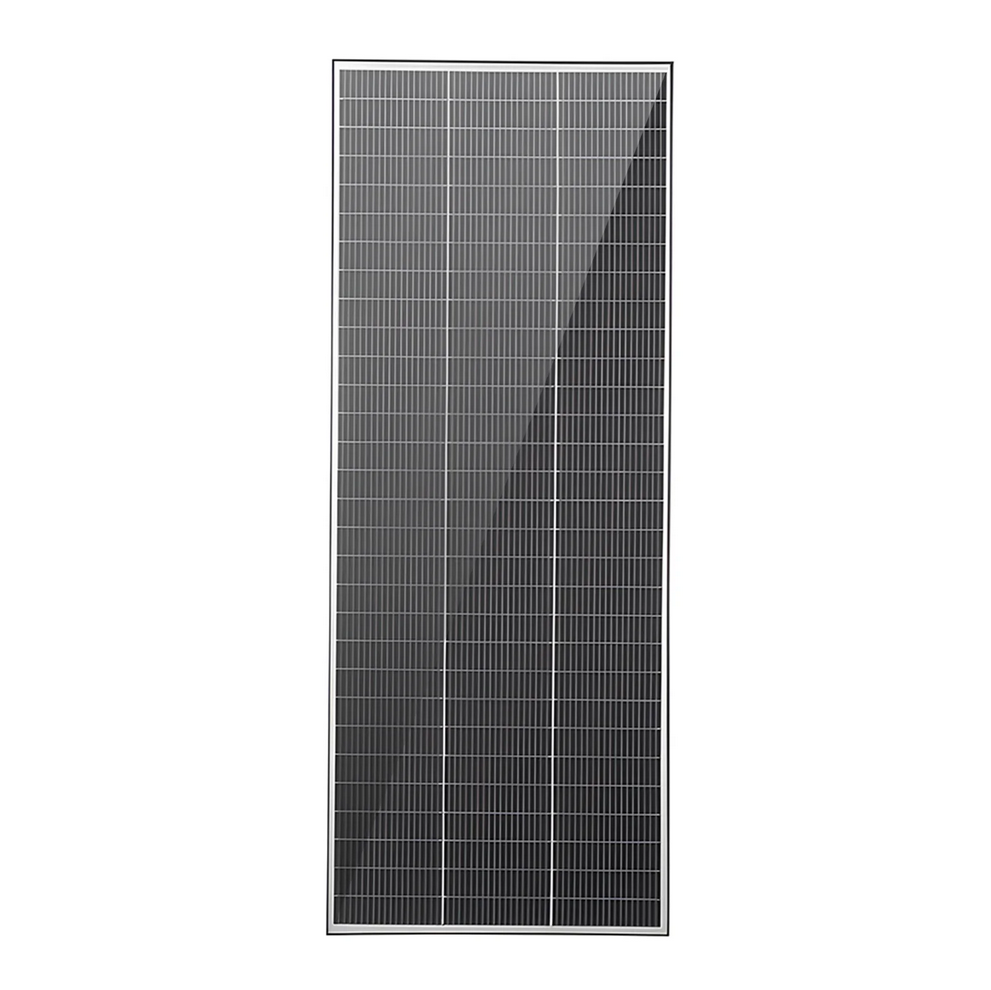

Exotronic 250W Fusion Fixed Solar Panel - Shade Resistant

Aussie Owned. Quality Gear. Honest Advice.
Regular price
$299.00
Sale price
$299.00
Regular price
Tax included. Shipping calculated at checkout.

Product details

The Exotronic 250W Fusion Series Solar Panel is a compact, high-efficiency option built for off-grid and mobile setups where consistent output and usable space both matter. Using advanced N-Type TOPCon cell technology, it delivers strong, reliable performance while maintaining a lightweight and practical design.

With a 25.2% cell efficiency, this panel outperforms many traditional monocrystalline and PERC options, making it a strong choice for caravans, camper trailers, boats and remote power systems where efficiency and reliability are key. Designed for 12V off-grid solar systems when paired with a suitable solar charge controller, the Exotronic 250W Fusion panel is well suited to 4WD, caravan, camper, marine and off-grid power setups. Its MC4 connections allow straightforward integration with standard solar cabling, and multiple panels can also be configured in series for suitable 24V or 48V systems.

Key Features

• 250W output suited to small to mid-sized off-grid systems
• N-Type TOPCon cells for improved lifespan and reduced degradation
• Strong low-light performance for more consistent output
• Triple shade resistance with independent parallel strings
• Lightweight design with a durable anodised aluminium frame
• Tempered low-iron glass for strength and improved light capture

Built for Mobile and Off-Grid Setups

Designed for real-world touring and remote use, this panel delivers dependable output across varying conditions while remaining easy to install in tighter spaces. It’s well suited to caravan and camper trailer setups, 4WD dual battery systems, marine applications, and small to mid-sized off-grid installations.

Triple Shade Resistance

One of the standout features of the 250W Fusion Series is its intelligent internal layout. The panel is built with three independent cell strings connected in parallel across its width, allowing sections of the panel to continue producing power even if part of it is shaded. In practical terms, this means more usable output when dealing with partial shading from roof racks, awnings or nearby obstacles.

Why TOPCon Matters

This panel uses N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, a step up from traditional P-Type and PERC panels. In practical terms, that means better performance in low-light conditions, slower long-term degradation, and more stable output across temperature changes.

Durability for Australian Conditions

Built to handle harsh environments, the Fusion Series combines a strong aluminium frame with high-quality tempered glass for long-term reliability. It’s designed to withstand vibration, coastal exposure and changing weather conditions. The 250W Fusion Series works across a wide range of setups, from maintaining 12V battery systems through to being wired in series for higher voltage systems. It’s a reliable option for off-grid sheds, remote workstations, and touring setups where consistent power is essential.

What Output Can You Expect From a Flat-Mounted 250W Solar Panel?

When fitting solar panels to a caravan, camper or 4WD roof, mounting them flat is often the most practical option. It keeps the installation straightforward and avoids the need to adjust panel angles every time you park. But how does this affect solar performance?

The Exotronic 250W Fusion is rated to produce 250W under standard test conditions. In the real world, output depends on sunlight intensity, panel temperature, shading, the time of year and how directly sunlight reaches the panel. A flat-mounted solar panel can perform particularly well when the sun is high overhead, but generally won't capture as much energy as a correctly angled panel when the sun sits lower in the sky, especially during winter.

How much energy could you generate in a day?

As a simple example, let's assume your 250W panel receives four equivalent peak sun hours.

250W × 4 hours = 1,000Wh of theoretical daily energy production.

Allowing an illustrative 25% reduction for real-world conditions and system losses gives approximately 750Wh (0.75kWh) of usable energy per day.

That's a planning example, not a guaranteed output. A flat installation in winter, prolonged cloud cover, partial shading or high temperatures could produce considerably less. Actual results can also be higher under favourable conditions. The Fusion's N-Type TOPCon cells and three independent parallel cell strings help manage some of the challenges associated with heat and partial shading, but they can't completely eliminate those losses.

For the best results, position the panel away from shadows cast by roof accessories, allow appropriate ventilation beneath the frame and use a correctly sized MPPT solar regulator. Always follow the manufacturer's mounting instructions. Wondering whether 250W is enough to keep your fridge, lighting and other appliances running? Try our free Solar Panel Selector & Output Calculator to estimate daily production and compare different solar setups for your 4WD or caravan.

What’s Included

• Exotronic 250W Fusion Series Solar Panel
• Pre-installed 800mm fly lead

A practical, high-efficiency option for touring and off-grid setups, the Exotronic 250W Fusion Series delivers reliable performance in a compact and durable package.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up, we’re 4WDers too and happy to help.

Electrical Performance
Rated Power (Pmax) 250W
Maximum Power Voltage (Vmp) 18.6V
Maximum Power Current (Imp) 13.44A
Open Circuit Voltage (Voc) 21.7V
Short Circuit Current (Isc) 14.7A

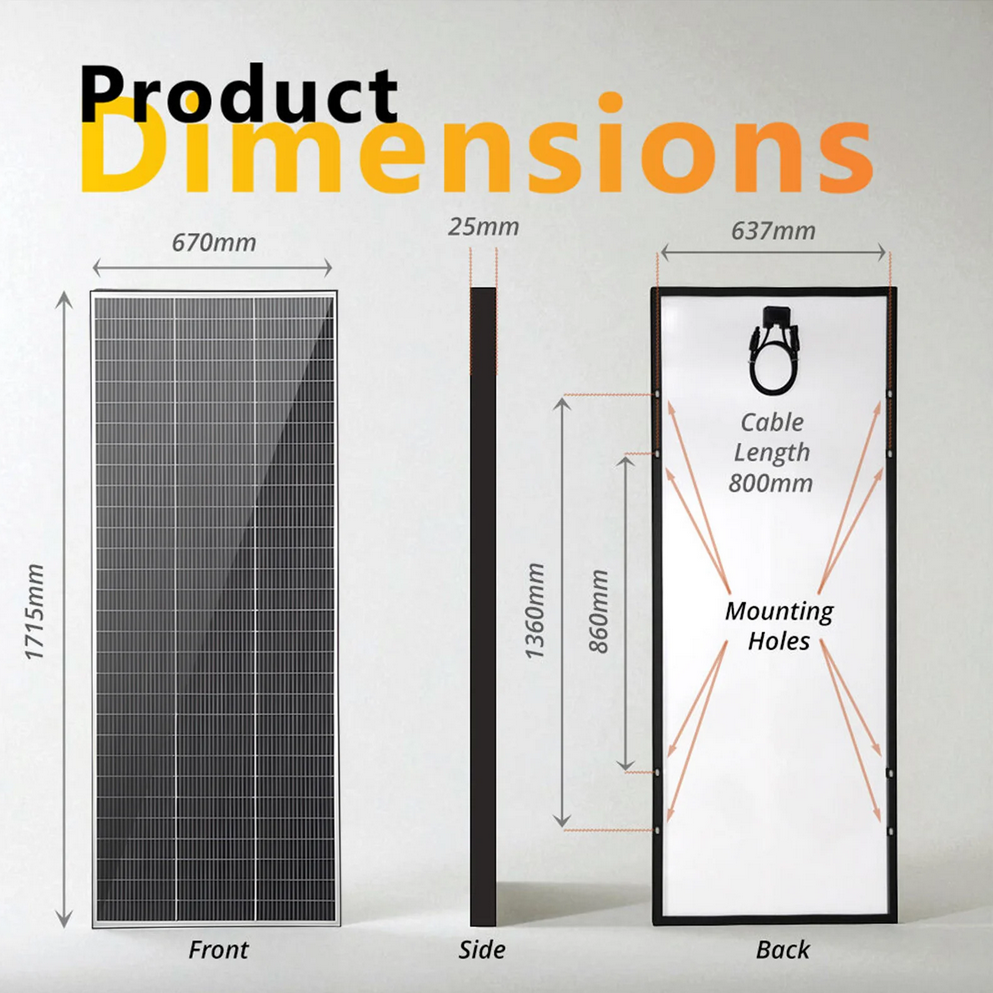

Dimensions & Weight
Dimensions 1715 x 670 x 25 mm
Weight 11.2 kg
Temperature Performance
NMOT 41°C ±3°C
Temperature Coefficient (Pmax) -0.37%/°C
Temperature Coefficient (Voc) -0.29%/°C
Temperature Coefficient (Isc) +0.05%/°C
Maximum Ratings
Operating Temperature -40°C to +85°C
Maximum System Voltage 1000V DC
Maximum Fuse Rating 15A
Construction & Build
Front Glass 3.2mm Tempered Glass
Frame Black Anodised Aluminium Alloy
Junction Box Rating IP68
Connectors MC4 Compatible
