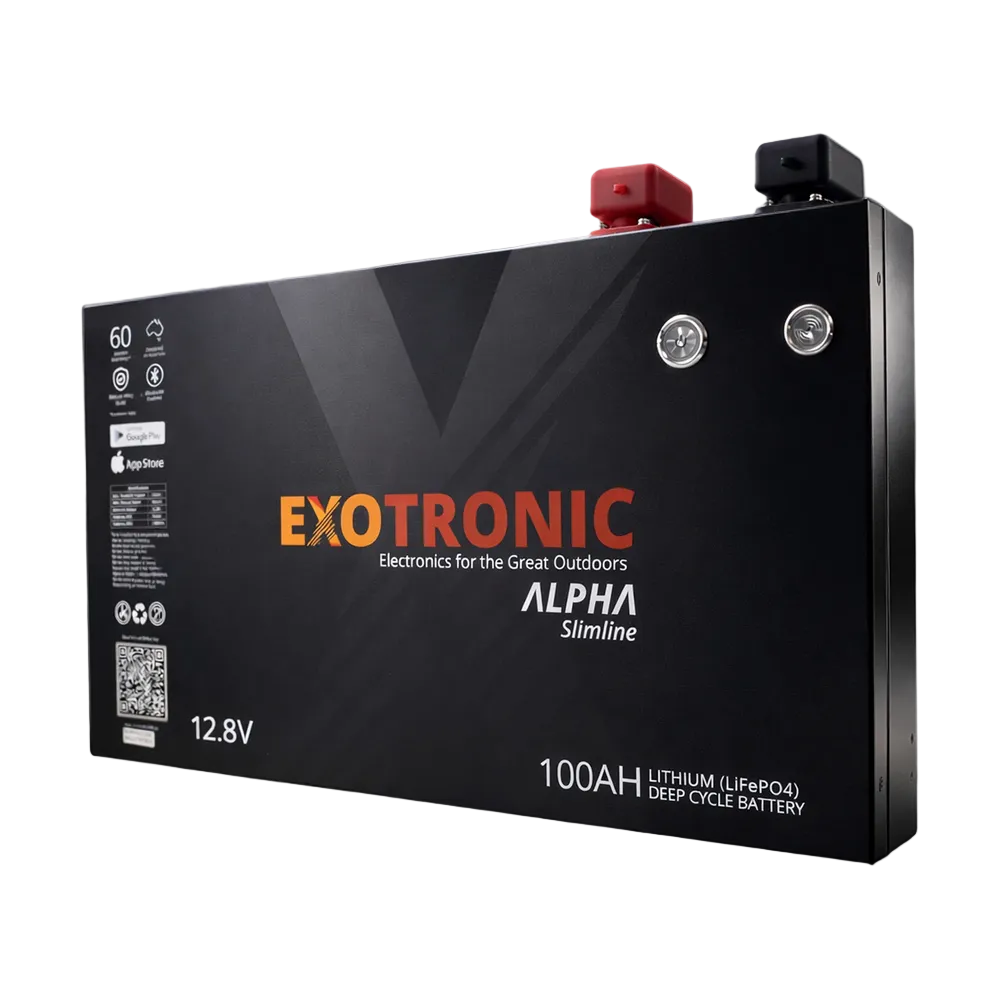

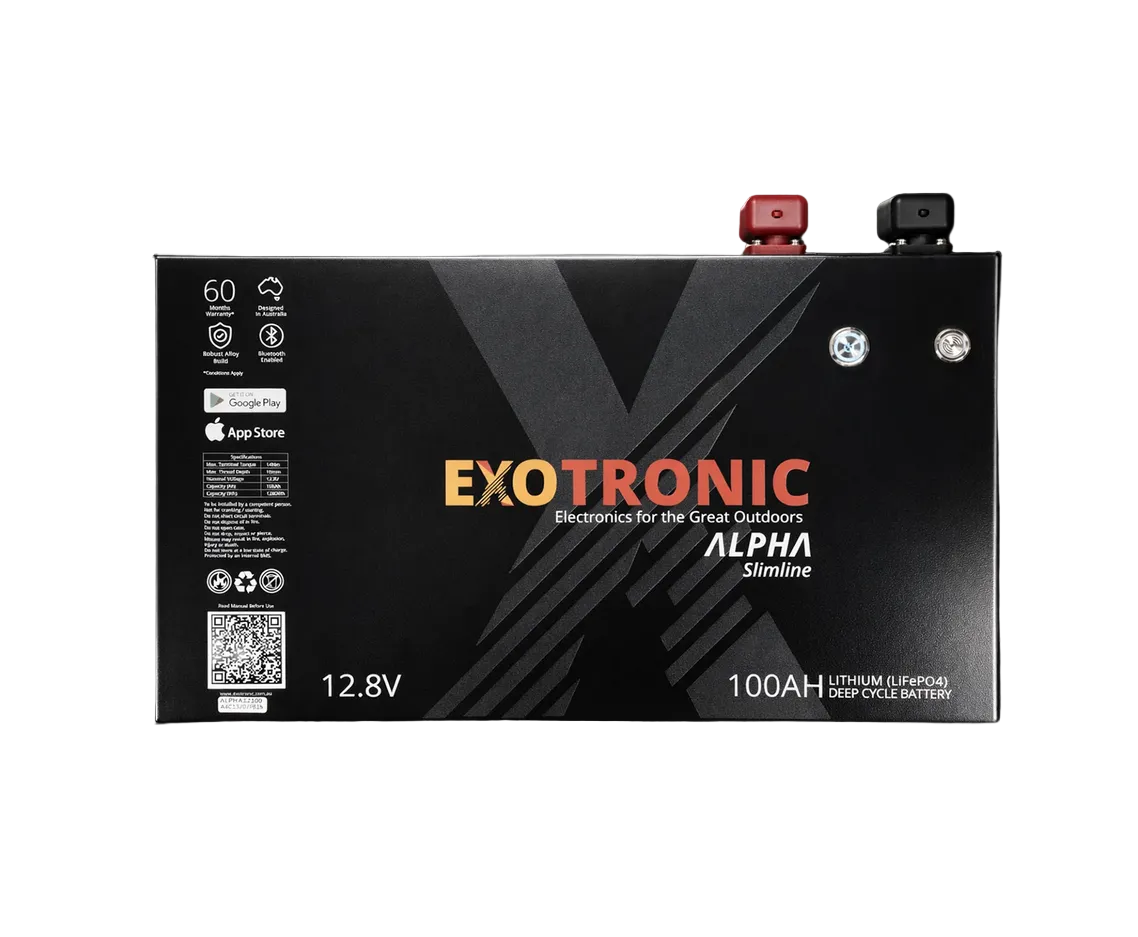

Exotronic 12V 100Ah Alpha Slimline Series Smart Deep Cycle LiFePO4 Lithium Battery (Bluetooth + On/Off Button)

The Exotronic 12V 100Ah Alpha Slimline LiFePO4 battery is built for serious touring setups where space is limited but performance still matters. With a heavy-duty slim metal enclosure, integrated Bluetooth monitoring and a practical On/Off/Reset button, it’s a clean and reliable solution for caravans, 4WDs, canopies and compact battery bays.

Designed for rugged Australian conditions, it delivers 0–100% usable capacity, strong continuous discharge for inverter use and intelligent safety features that help prevent unexpected shutdowns.

Key Features

• Strong slimline metal casing suited to tight installs and high vibration environments
• Real-time Bluetooth monitoring via the JBD BMS
• Integrated On/Off/Reset button
• Pre-trip audible and visual alarm for 60 seconds at 10% State of Charge
• 100A JBD BMS with charge and discharge protection
• 120A Anderson plug and M8 terminals
• Eight mounting bracket locations (top/bottom, left/right)
• 1.2A active cell balancer
• A-Grade aluminium-cased prismatic cells with safety rupture disc
• IEC 62619 certified cells

Built for Touring and Compact Installations

This battery suits 4x4 touring, caravans, RVs and marine setups where a narrow profile is essential. It fits neatly behind seats, under false floors, inside canopy compartments and within tight drawer systems without sacrificing usable capacity or output.

Despite its compact footprint, it provides 100Ah of dependable storage and up to 100A continuous discharge, making it suitable for systems running around a 1000W inverter (system dependent).

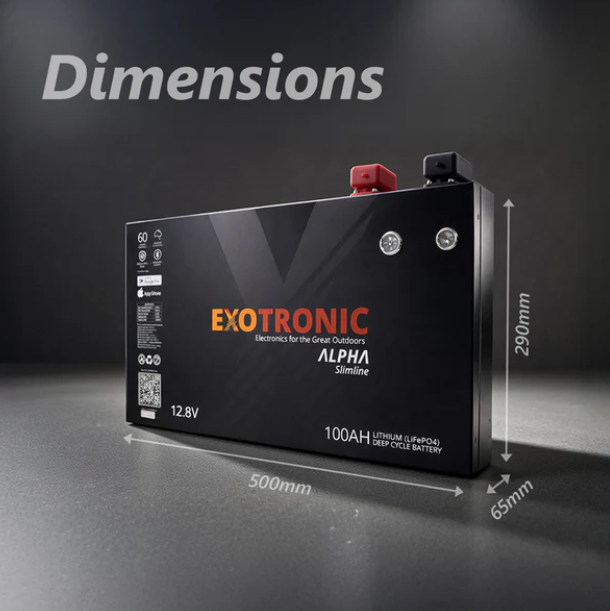

Slim Metal Enclosure

The rigid metal case provides strong protection against vibration and impact, helping maintain internal cell stability during sustained off-road use while keeping the profile narrow and easy to mount.

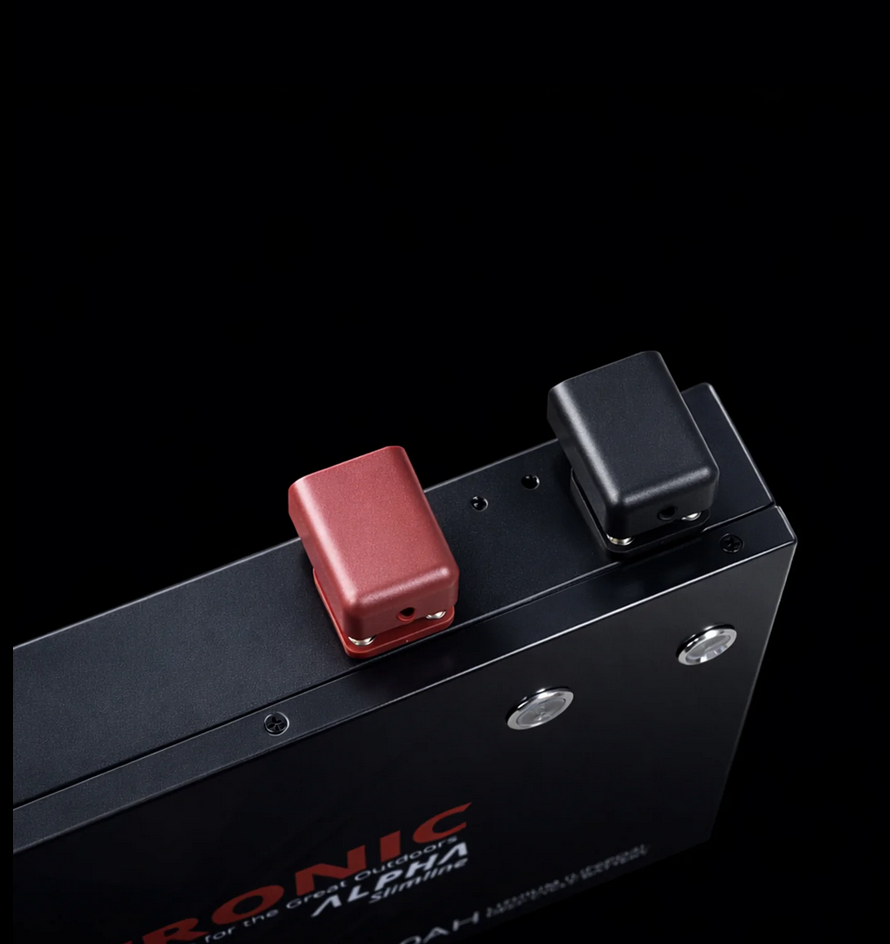

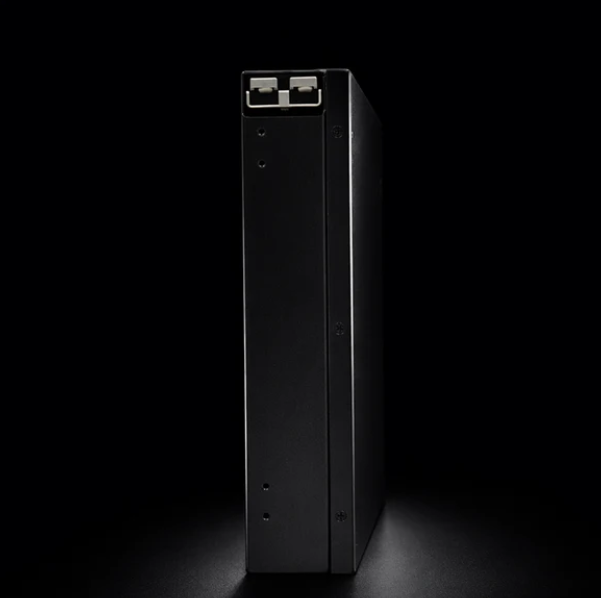

120A Anderson Plug and M8 Terminals

The integrated Anderson output allows quick connection and disconnection, while the solid M8 terminals provide secure, low-resistance fixed wiring for inverters, chargers and higher load applications. These outputs connect directly to the BMS for efficient power delivery.

Important: All installations must be correctly fused to suit cable size and system design.

LiFePO4 Safety and BMS Protection

LiFePO4 chemistry is widely regarded as one of the safest lithium technologies available. This battery uses A-Grade aluminium-cased prismatic cells fitted with rupture discs to relieve pressure in the unlikely event of internal failure.

The integrated BMS provides protection against:

• Overcurrent in charge and discharge
• Short circuit events
• High and low temperature extremes
• Overcharge and over-discharge conditions

Low State of Charge Warning

The 10% State of Charge audible and visual alarm removes the guesswork when power is running low. If the battery trips, the reset function allows quick recovery, or it can be restarted using a compatible dark-start lithium charger.

System Expansion

For larger builds, the battery supports:

• Up to 4 batteries in parallel
• Up to 4 batteries in series
• Up to 16 batteries total (4P x 4S configuration)

Storage and Maintenance

There is no memory effect. For storage, a maintenance charge approximately every three months is recommended to keep the battery in optimal condition.

Service Life

Engineered for durability, the cells are rated for up to 3,000 full discharge cycles, delivering an expected service life of 10–12 years or more in many touring and off-grid applications.

On/Off/Reset Operation

• Press once to turn the battery on
• Depress to turn it off
• Press twice to reset after a trip event
• Alternatively, connect a dark-start capable lithium charger

Bluetooth Monitoring

Bluetooth connectivity via the JBD BMS allows real-time monitoring of:

• Individual cell voltages
• Battery temperature
• Charge and discharge current
• State of Charge
• MOSFET status and alarm conditions

Bluetooth Smart

The JBD BMS includes Bluetooth, allowing real-time viewing of the individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs and alarms.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help
