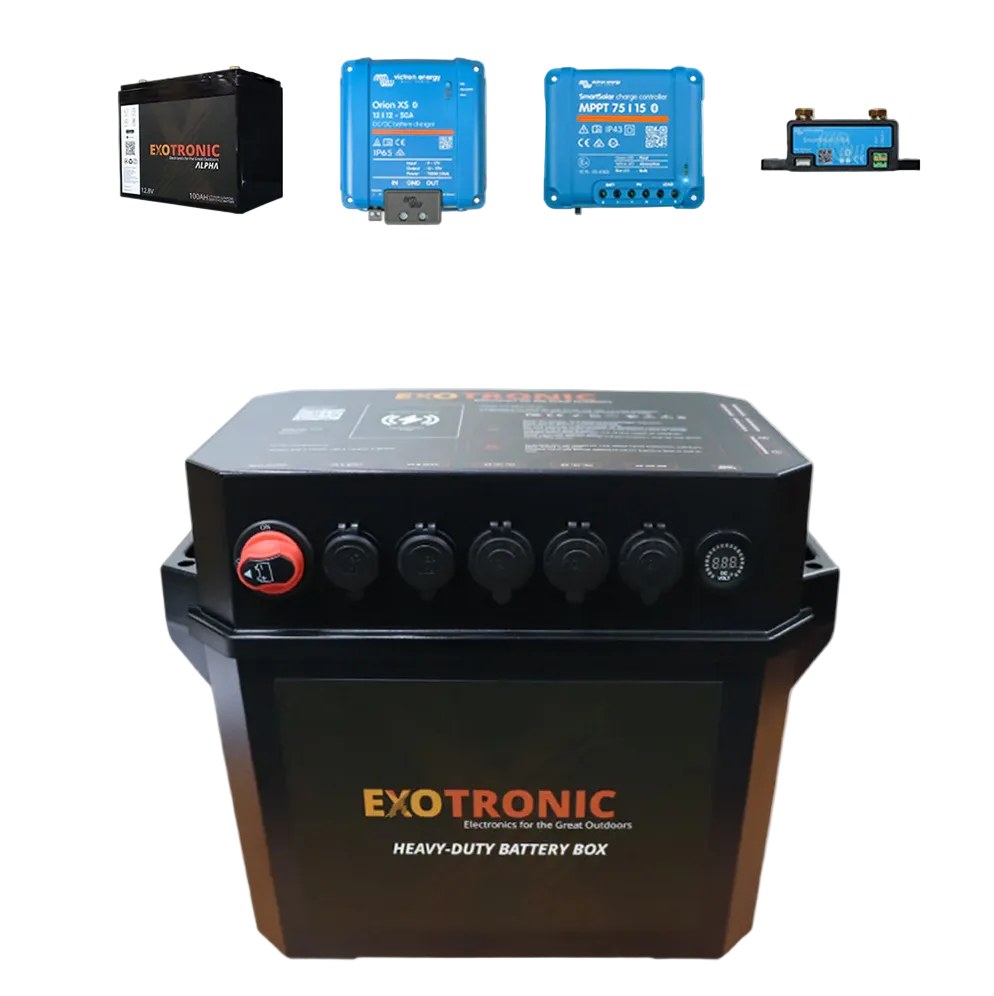

Exotronic 100Ah Battery Box Pre-Wired Kit -Orion XS + SmartSolar + SmartShunt

The Exotronic Pre-Wired Battery Box 100Ah is a complete, plug-and-play off-grid power system built for touring setups that demand reliability. Designed for caravans, 4WDs, camper trailers and marine applications, it combines a high-quality lithium battery with proven Victron components for efficient charging, monitoring and power distribution.

Pre-wired and ready to go, it removes the complexity from building a 12V system and gets you powered up faster.

Key Features

• Complete 100Ah lithium power system in a pre-wired enclosure
• Premium Victron components for charging and monitoring
• Plug-and-play design for fast, reliable installation
• Multiple Anderson, USB and 12V outputs for versatile use
• Bluetooth monitoring via VictronConnect app
• Built for touring, off-grid and mobile applications

Premium Lithium Power

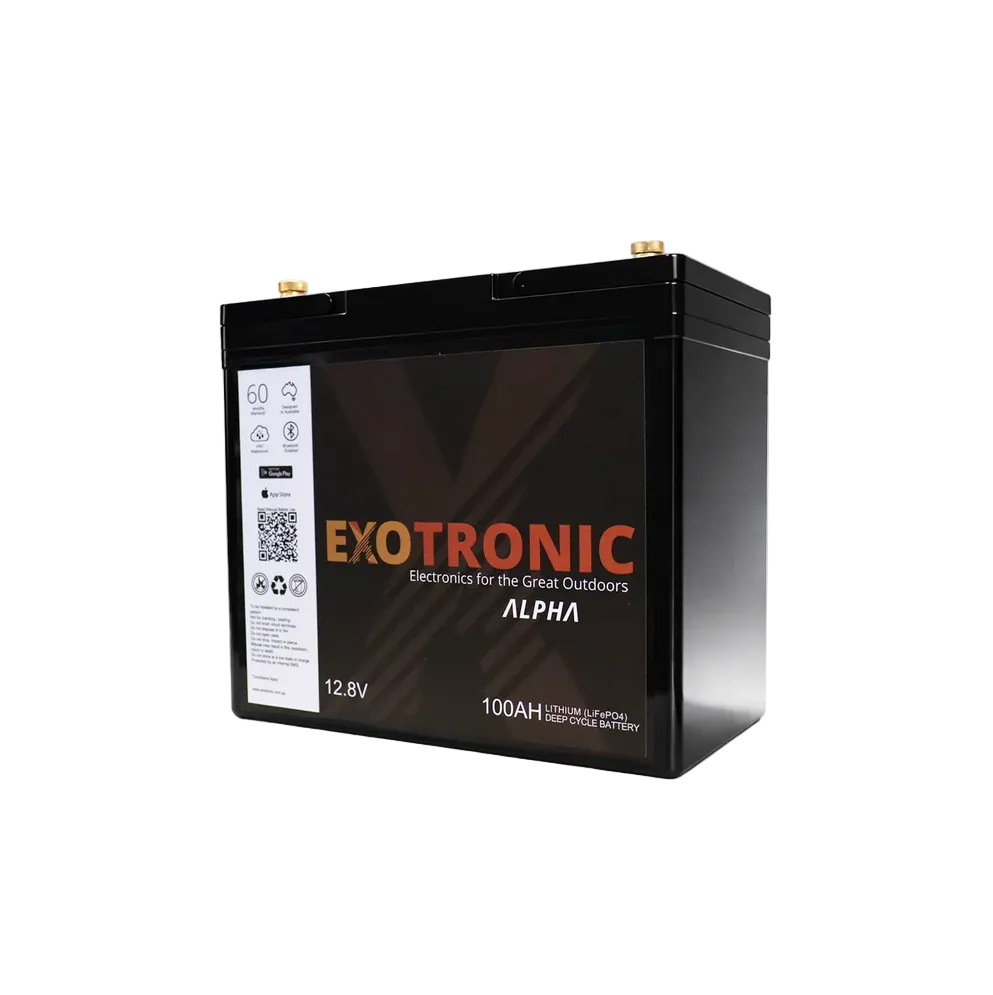

At the core of the system is a 100Ah Alpha Series LiFePO₄ battery, designed for Australian conditions. Lithium chemistry delivers longer lifespan, deeper discharge capability and improved efficiency compared to traditional battery types.

An integrated BMS provides protection against overcharging, over-discharging and short circuits, helping ensure safe and reliable operation.

Efficient Charging with Victron Components

The system is built around trusted Victron hardware, delivering efficient and intelligent charging across multiple inputs.

The Orion XS DC-DC charger manages vehicle charging while protecting battery health, while the SmartSolar MPPT controller maximises solar input and improves overall system efficiency.

Note: The Orion XS is factory set to 35A output and can be adjusted depending on ambient temperature and setup requirements.

Real-Time Monitoring

The included Victron SmartShunt provides accurate, real-time battery data including voltage, state of charge and power usage. With Bluetooth connectivity, you can monitor your system directly from your phone using the VictronConnect app.

This allows you to keep track of performance and avoid unexpected power loss while off-grid.

Versatile Power Outputs

Designed for real-world setups, the battery box includes a wide range of connection points:

• 2 × 50A grey Anderson plugs for DC loads and accessories
• 1 × 50A blue Anderson plug for vehicle charging input
• 1 × 50A red Anderson plug for solar input (max 75V DC)
• 1 × 175A Anderson plug for high-current output / jump starting
• 3 × 12V cigarette sockets for common accessories
• 2 × USB-C ports for modern devices
• 2 × QC3 USB ports for fast charging

This setup allows you to run fridges, lighting, charging devices and more — all from a single system.

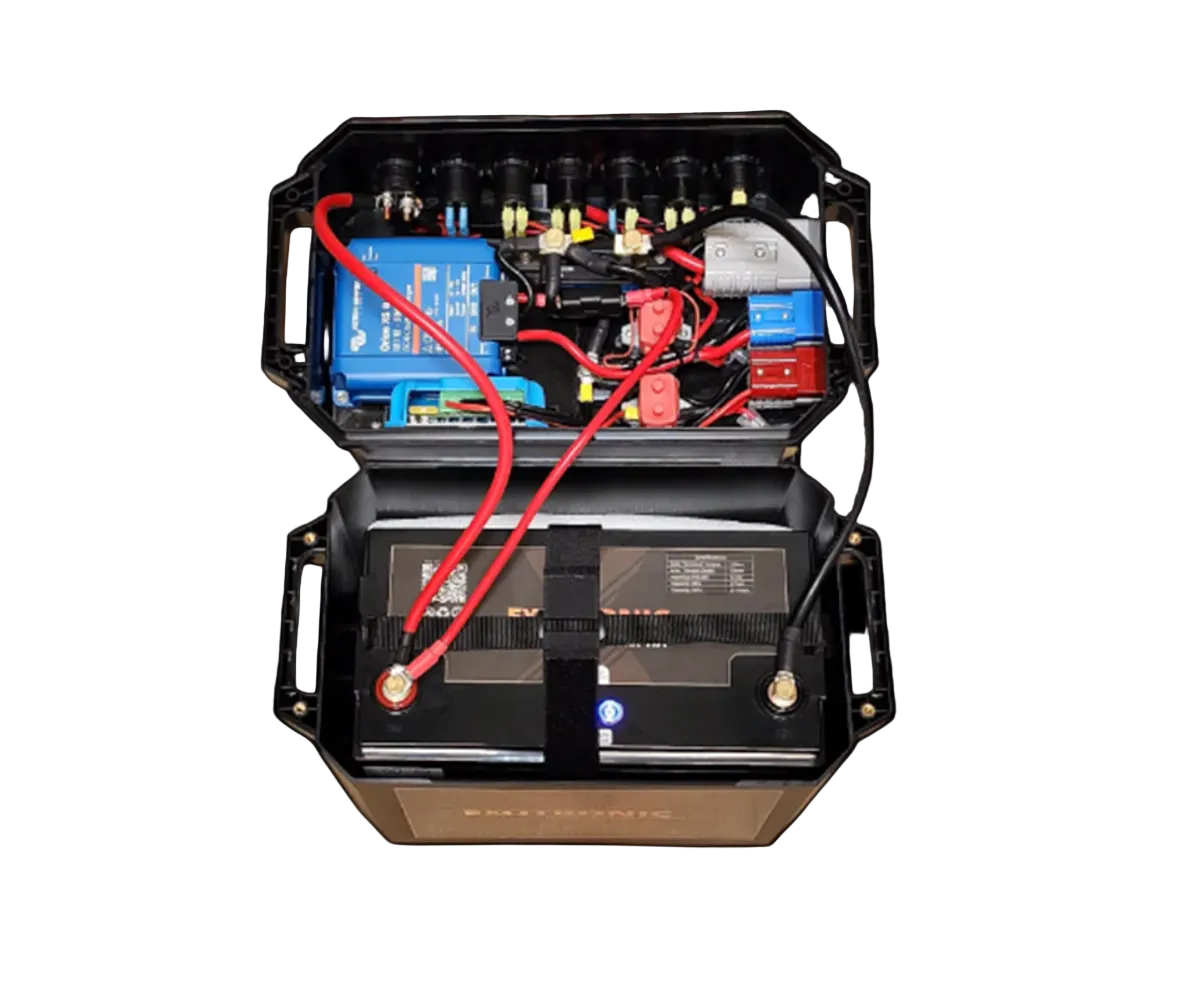

Pre-Wired for Simplicity

Every component is professionally integrated and wired, saving you time and eliminating the guesswork involved in building your own system. It’s a practical solution for those who want a clean, reliable setup without the complexity.

Built for Off-Grid Use

Designed to handle vibration, travel and varied conditions, this system is suited to:

• 4WD touring setups
• Caravan and camper trailer systems
• Marine applications
• Off-grid cabins and remote setups

A complete and dependable power solution, the Exotronic 100Ah Battery Box delivers reliable energy, efficient charging and simple monitoring in one integrated system.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
