- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
Product details

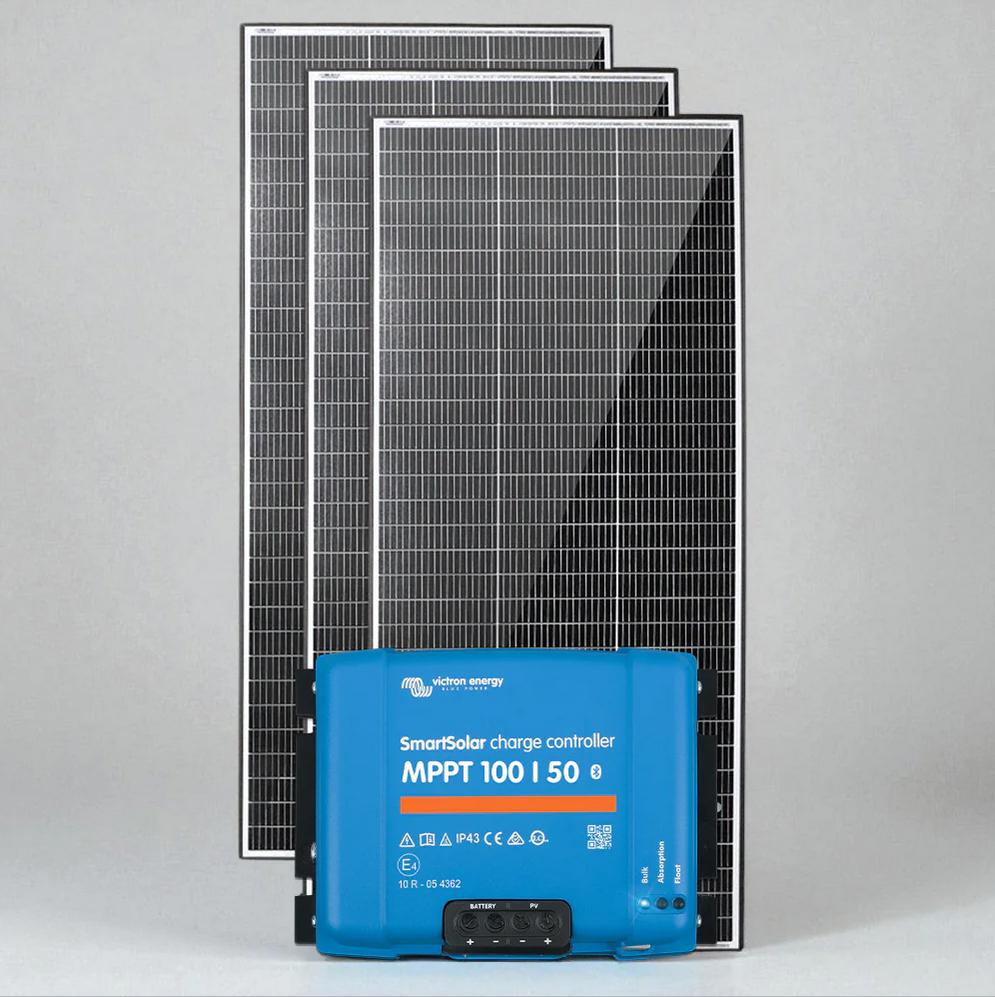

The Exotronic 3x 220W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle is a high-capacity off-grid solution designed for setups that need strong, reliable power without jumping to a full-scale system. Combining three N-Type TOPCon solar panels with Victron’s proven MPPT technology, it delivers consistent performance across a wide range of conditions.
With a total array capacity of 660W, it’s well suited to caravans, RVs, marine setups and off-grid systems where dependable energy and efficiency are essential.
What’s Included
• 3x Exotronic 220W Fusion Series TOPCon Solar Panels
• Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
• 3x Mounting Bracket Kits
• 2x Fix15 Adhesive Sealant (White)
High-Capacity Solar Performance
Built around three Exotronic 220W panels, this bundle provides strong daily energy production with excellent efficiency and low-light performance. The N-Type TOPCon cell design helps maintain output in varying conditions while reducing long-term degradation.
It’s a practical setup for running fridges, lighting, charging systems and other key loads in medium to larger off-grid setups.
Smart Charging with Victron MPPT
At the centre of the system is the Victron SmartSolar MPPT 100/50, designed to maximise the performance of your solar array. Using ultra-fast Maximum Power Point Tracking, it can significantly increase energy harvest compared to traditional PWM controllers.
Built-in Bluetooth allows you to monitor and adjust your system through the VictronConnect app, giving you real-time visibility over performance and battery health.
Built for Real-World Setups
Designed for practical installation across mobile and fixed systems, this bundle is well suited to caravan roofs, canopy setups, marine installs and off-grid systems that require more consistent energy availability.
Reliable and Durable
Both the panels and controller are built to handle harsh environments, including vibration, heat and exposure to the elements. Combined with mounting hardware and sealant, this kit is designed for a clean, dependable install.
A strong mid-to-high capacity system, this bundle delivers reliable off-grid power using proven components built for real-world conditions.
Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
Exotronic 220W Solar Panel Specifications
| Electrical Performance | |
|---|---|
| Rated Power (Pmax) | 220W |
| Maximum Power Voltage (Vmp) | 19.8V |
| Maximum Power Current (Imp) | 11.11A |
| Open Circuit Voltage (Voc) | 23.1V |
| Short Circuit Current (Isc) | 12.1A |
| Dimensions & Weight | |
| Dimensions | 1470 x 670 x 25 mm |
| Weight | 10 kg |
| Temperature Performance | |
| NMOT | 41°C ±3°C |
| Temperature Coefficient (Pmax) | -0.37%/°C |
| Temperature Coefficient (Voc) | -0.29%/°C |
| Temperature Coefficient (Isc) | +0.05%/°C |
| Maximum Ratings | |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V DC |
| Maximum Fuse Rating | 15A |
| Construction & Build | |
| Front Glass | 3.2mm Tempered Glass |
| Frame | Black Anodised Aluminium Alloy |
| Junction Box Rating | IP65 |
| Connectors | MC4 Compatible |
Victron SmartSolar MPPT 100/50 Specifications
| Electrical Performance | |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 50A |
| Nominal PV Power (12V) | 700W |
| Nominal PV Power (24V) | 1400W |
| Maximum PV Voltage | 100V |
| Maximum PV Current | 60A |
| Maximum Efficiency | 98% |
| Charging Parameters | |
| Absorption Voltage | 14.4V / 28.8V (adjustable) |
| Float Voltage | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Protection & Operating Conditions | |
| Protection | Reverse polarity, short circuit, over temperature |
| Operating Temperature | -30°C to +60°C |
| Humidity | 95%, non-condensing |
| Build & Connectivity | |
| Data Port | VE.Direct |
| Terminals | 16 mm² (AWG6) |
| Protection Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions & Weight | |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
| Standards | |
| Compliance | EN/IEC 62109-1, UL 1741, CSA C22.2 |
