Product details

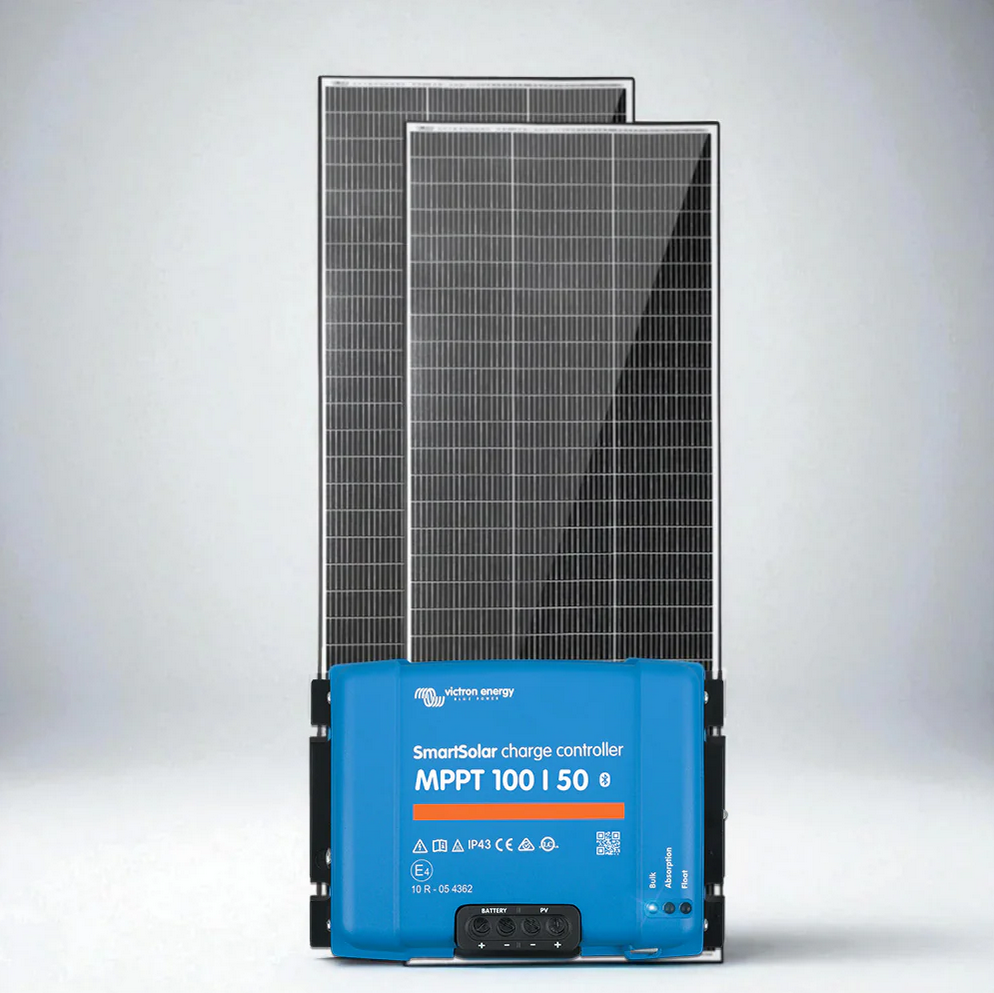

The Exotronic 2x 250W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle is a high-output off-grid solution designed for setups that need strong, reliable power without moving into a full-scale system. Combining two N-Type TOPCon solar panels with Victron’s proven MPPT technology, it delivers consistent performance across a wide range of conditions.
With a total array capacity of 500W, it’s well suited to caravans, camper trailers, 4WD touring setups and off-grid systems where dependable energy and efficiency matter.
What’s Included
• 2x Exotronic 250W Fusion Series TOPCon Solar Panels
• Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller
• 2x Mounting Bracket Kits
• 1x Fix15 Adhesive Sealant (White)
High-Output Solar Performance
Built around two Exotronic 250W panels, this bundle delivers strong daily energy production with excellent efficiency and low-light performance. The N-Type TOPCon cell design helps maintain output in varying conditions while reducing long-term degradation.
It’s a practical setup for running fridges, lighting, charging systems and other essential loads in mid-sized off-grid systems.
Smart Charging with Victron MPPT
At the centre of the system is the Victron SmartSolar MPPT 100/50, designed to maximise the performance of your solar array. Using ultra-fast Maximum Power Point Tracking, it can significantly increase energy harvest compared to traditional PWM controllers.
Built-in Bluetooth allows you to monitor and adjust your system through the VictronConnect app, giving you real-time visibility over performance and battery health.
Built for Real-World Setups
Designed for practical installation across mobile and fixed systems, this bundle is well suited to caravan roofs, canopy setups, marine installs and off-grid systems that require consistent energy availability.
Reliable and Durable
Both the panels and controller are built to handle harsh environments, including vibration, heat and exposure to the elements. Combined with mounting hardware and sealant, this kit is designed for a clean, dependable install.
A well-balanced high-output system, this bundle delivers reliable off-grid power using proven components built for real-world conditions.
Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
Exotronic 250w Solar Panel Specifications
| Electrical Performance | |
|---|---|
| Rated Power (Pmax) | 250W |
| Maximum Power Voltage (Vmp) | 18.6V |
| Maximum Power Current (Imp) | 13.44A |
| Open Circuit Voltage (Voc) | 21.7V |
| Short Circuit Current (Isc) | 14.7A |
| Dimensions & Weight | |
| Dimensions | 1715 x 670 x 25 mm |
| Weight | 11.2 kg |
| Temperature Performance | |
| NMOT | 41°C ±3°C |
| Temperature Coefficient (Pmax) | -0.37%/°C |
| Temperature Coefficient (Voc) | -0.29%/°C |
| Temperature Coefficient (Isc) | +0.05%/°C |
| Maximum Ratings | |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1000V DC |
| Maximum Fuse Rating | 15A |
| Construction & Build | |
| Front Glass | 3.2mm Tempered Glass |
| Frame | Black Anodised Aluminium Alloy |
| Junction Box Rating | IP65 |
| Connectors | MC4 Compatible |

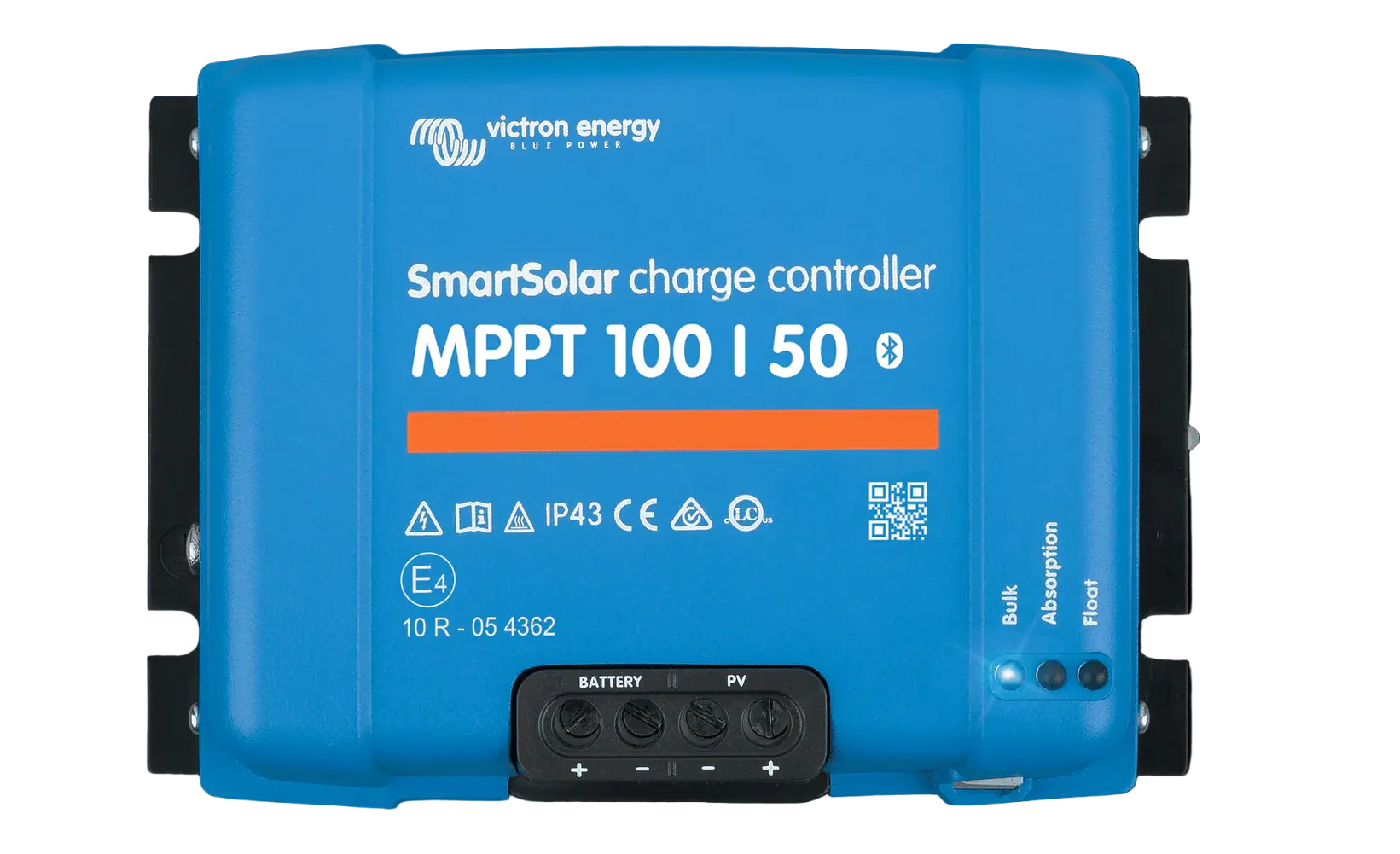

Victron SmartSolar MPPT 100/50 Specifications
| Electrical Performance | |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 50A |
| Nominal PV Power (12V) | 700W |
| Nominal PV Power (24V) | 1400W |
| Maximum PV Voltage | 100V |
| Maximum PV Current | 60A |
| Maximum Efficiency | 98% |
| Charging Parameters | |
| Absorption Voltage | 14.4V / 28.8V (adjustable) |
| Float Voltage | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16 mV/°C (12V), -32 mV/°C (24V) |
| Protection & Operating Conditions | |
| Protection | Reverse polarity, short circuit, over temperature |
| Operating Temperature | -30°C to +60°C |
| Humidity | 95%, non-condensing |
| Build & Connectivity | |
| Data Port | VE.Direct |
| Terminals | 16 mm² (AWG6) |
| Protection Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions & Weight | |
| Dimensions | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
| Standards | |
| Compliance | EN/IEC 62109-1, UL 1741, CSA C22.2 |
