BMPRO SmartSense Premium Twin Gas Bottle Level Sensors

Running two gas bottles is common in caravans and campers, but knowing when one is nearly empty usually means physically checking the bottle or waiting until the gas runs out.

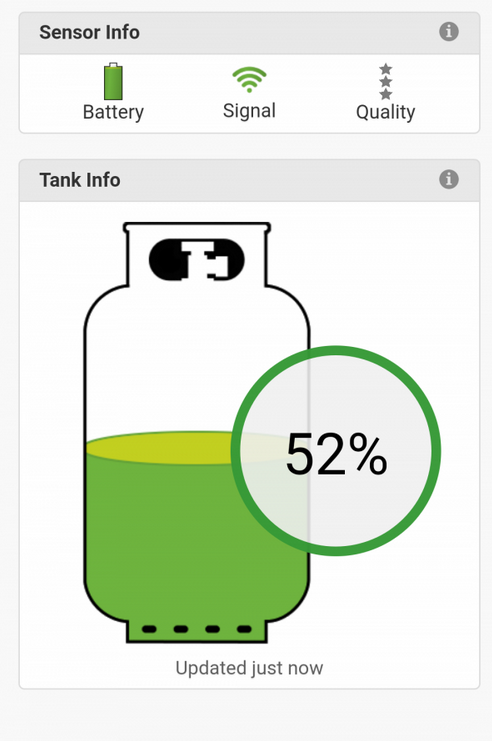

BMPRO SmartSense Premium includes two wireless gas bottle sensors, allowing you to monitor the remaining LPG level in both bottles from a compatible BMPRO system or supported smartphone app.

Each sensor attaches magnetically underneath the gas bottle and uses ultrasonic technology to measure the liquid level inside. There is no permanent wiring required, making it a simple addition to an existing caravan, camper or BBQ setup.

Monitor Both Gas Bottles

The Premium kit includes two SmartSense sensors, so each gas bottle can be monitored independently.

This is particularly useful on caravans with a twin bottle setup, where you can see which bottle is running low before switching over or heading away on a longer trip.

Each sensor communicates wirelessly using Bluetooth Low Energy.

Ultrasonic Gas Level Measurement

SmartSense measures the LPG level through the base of the cylinder using ultrasonic sensing.

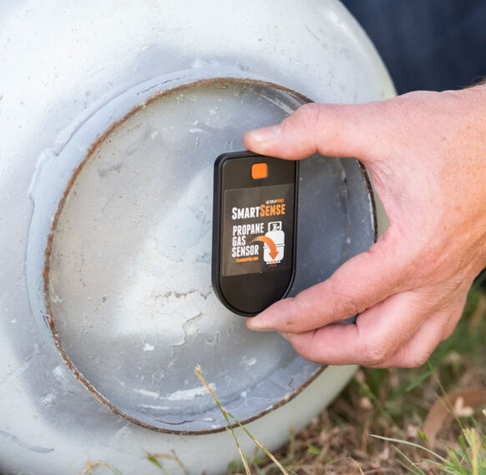

The sensor attaches to the underside of the bottle using two strong magnets, with the sensing pad positioned against the centre of the cylinder base.

Because the reading is taken through the bottle itself, correct positioning and good contact between the sensor and cylinder are important for reliable measurements.

Made for Common Caravan Gas Bottles

BMPRO specifies SmartSense for the common 3.7kg and 8.5kg LPG fill capacities typically associated with nominal 4kg and 9kg bottles.

It is not intended for large 45kg LPG cylinders, as the thicker cylinder construction can interfere with the ultrasonic measurement.

The sensor works best on a clean, smooth steel base with excess rust, dirt or loose paint removed from the contact area.

Replaceable Batteries

Each SmartSense uses a standard CR2032 3V coin cell battery.

BMPRO advises an average battery life of around one year, although actual life will vary with temperature and use. The battery is replaceable, so the sensor itself does not need to be discarded once the original battery is depleted.

BMPRO System Compatibility

SmartSense Premium can integrate with compatible BMPRO smart RV systems including JHub, Odyssey, JAYCOMMAND and RVMaster.

For Australian JHub installations, BMPRO currently specifies ControlNode103. Odyssey installations require OdysseyLink105.

BMPRO also offers standalone SmartSense smartphone monitoring. If you intend to use the sensors without an existing BMPRO system, we recommend checking current app compatibility with your phone and operating system before purchase.

Easy Installation

Installation does not require wiring into the caravan.

Pair the sensor with the compatible BMPRO system or app, apply the recommended sensor contact medium where required, then position the sensor centrally underneath the gas bottle using the built in magnets.

After the cylinder is returned upright, allow the LPG to settle before relying on the displayed level.

What's Included

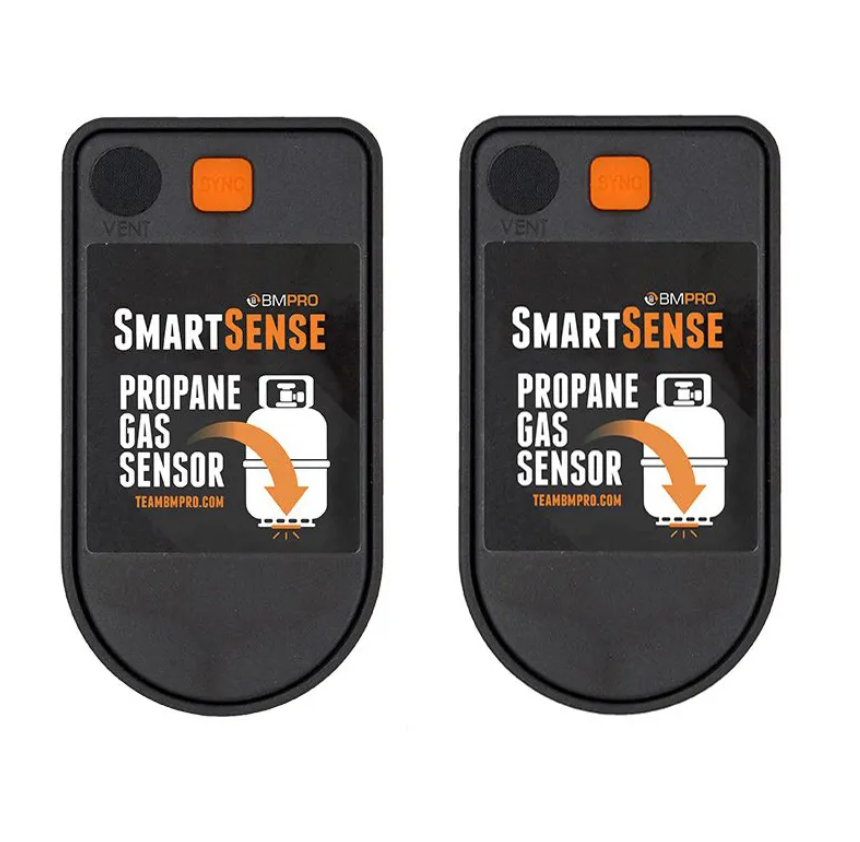

2 × BMPRO SmartSense Gas Bottle Level Sensors

Each sensor is supplied with a replaceable CR2032 3V battery.

Shipping Australia Wide

Orders are dispatched quickly from Australia. Questions? Hit us up, we're 4WDers too and happy to help.

Specifications
