BMPRO SmartConnect Premium Complete RV Sensor Kit | Tyre, Gas & Temperature

The BMPRO SmartConnect Premium gives you a much broader view of what is happening around your caravan or RV by adding tyre pressure, gas bottle level and temperature monitoring to an existing compatible BMPRO smart system.

The kit includes four SmartPressure tyre sensors, two SmartSense gas bottle sensors and two SmartTemp temperature sensors, making it particularly well suited to larger caravans with four monitored tyres, twin gas bottles and separate fridge, freezer or cabin temperature monitoring.

Once paired, all of the sensor information is brought into your compatible BMPRO system so you can check the important parts of the caravan from one place.

Four Tyre Pressure Sensors

SmartConnect Premium includes four SmartPressure sensors, allowing all four caravan tyres to be monitored individually.

Each sensor measures both tyre pressure and temperature and can detect changes while travelling. The sensors mount directly to the tyre valves and have a maximum operating pressure of 99PSI.

A fitting toolkit is included to help secure the sensors to the valves.

Twin Gas Bottle Monitoring

Two SmartSense sensors are included for caravans running a pair of LPG bottles.

Each sensor mounts magnetically underneath a compatible gas bottle and uses ultrasonic measurement to determine the remaining liquid level inside the cylinder.

BMPRO supports common 3.7kg and 8.5kg LPG fill capacities, making the sensors suitable for the gas bottles commonly found on Australian caravans and campers.

Two Temperature Sensors

The two SmartTemp sensors can be positioned wherever temperature monitoring is useful.

One could be placed in the fridge and another in the freezer, or they can be used to monitor internal living areas, storage compartments or other locations around the caravan.

SmartTemp operates from minus 20°C to plus 55°C and communicates wirelessly with the BMPRO system.

One System for All Three

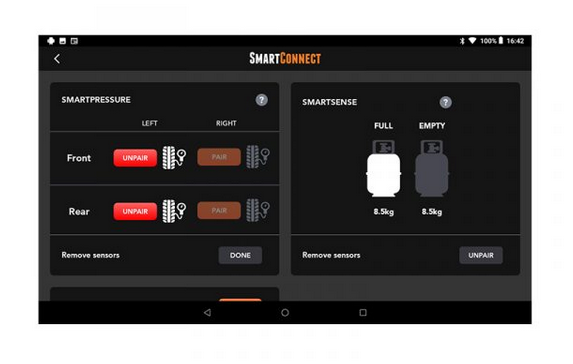

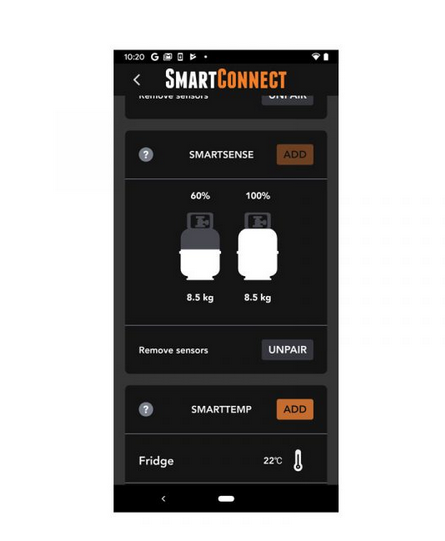

Once paired, SmartPressure, SmartSense and SmartTemp information can be viewed through the compatible BMPRO smart system rather than relying on separate displays for each sensor.

Sensor settings such as measurement units and warning thresholds can also be configured where supported by the particular BMPRO system being used.

The system also reports the battery status of the individual SmartConnect sensors so you can see when a sensor battery needs replacing.

Compatibility

SmartConnect Premium is an expansion sensor kit and does not operate as a complete standalone monitoring system.

It is compatible with BMPRO systems including JHub, Odyssey, JAYCOMMAND, RVMaster and BMPRO Connect. The sensors can also be added to an existing ProSmart system.

For Australian installations, JHub requires ControlNode103 and Odyssey requires OdysseyLink105.

If you're unsure which BMPRO hardware is currently fitted to your caravan, it is worth confirming compatibility before ordering.

Bluetooth Range

BMPRO specifies a Bluetooth range of up to approximately 20 metres in direct line of sight.

Actual range can vary depending on caravan construction, sensor placement, walls, the position of the receiving module and interference between the caravan and tow vehicle.

What's Included

• 4 × BMPRO SmartPressure tyre pressure and temperature sensors
• 2 × BMPRO SmartSense gas bottle level sensors
• 2 × BMPRO SmartTemp temperature sensors
• 1 × SmartPressure installation toolkit

Shipping Australia Wide

Orders are dispatched quickly from Australia. Questions? Hit us up, we're 4WDers too and happy to help.

Specifications
