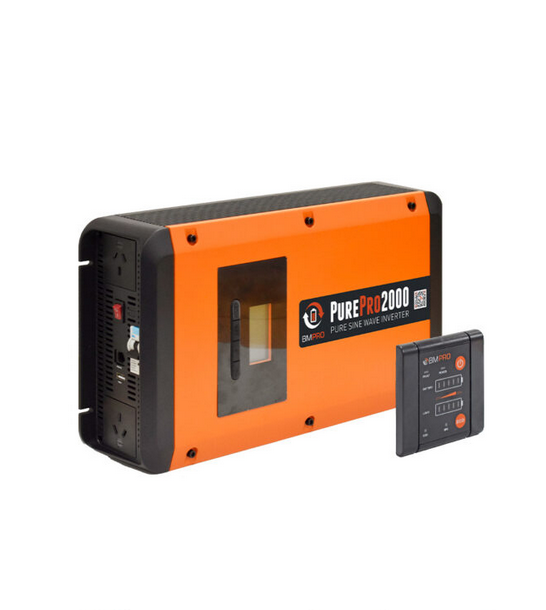

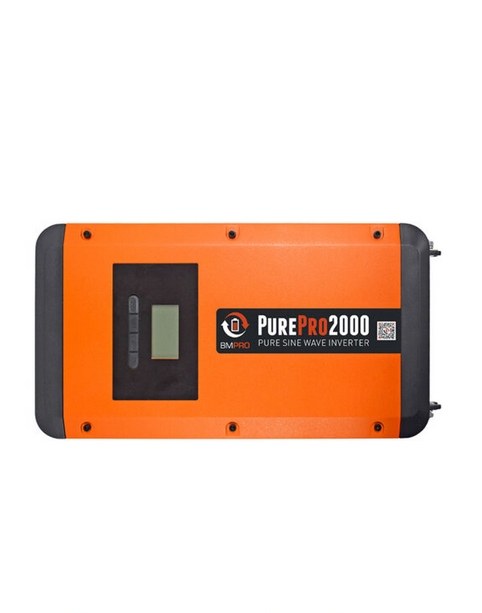

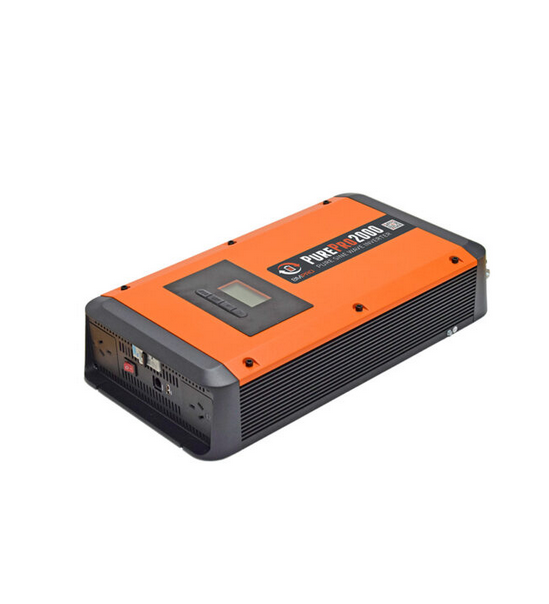

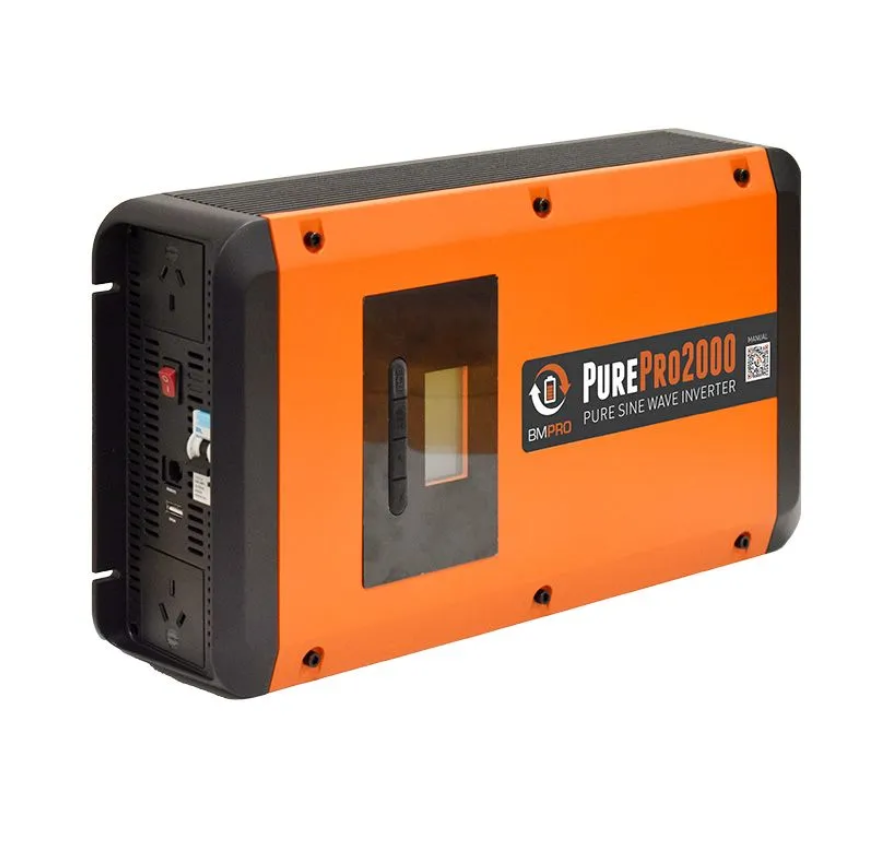

BMPRO PurePro2000 2000W Pure Sine Wave Inverter with RCD & Transfer Switch
- Regular price
- $1,049.00
- Sale price
- $1,049.00
- Regular price
Product details
The BMPRO PurePro2000 gives a 12V battery system access to up to 2000W of clean 240V pure sine wave power, making it a strong fit for caravans, campers and off grid systems running everyday appliances without stepping up to a full 3000W inverter.
It combines pure sine wave output with an integrated RCD, automatic AC transfer switch, dual 240V outlets, LCD monitoring and a remote control panel. That makes it much more than a basic standalone inverter and particularly useful in permanently installed touring systems where the same appliances may be powered from mains electricity at a powered site and from the battery bank while off grid.
2000W Pure Sine Wave Output
The PurePro2000 provides 220 to 240V AC pure sine wave power at 50Hz with total harmonic distortion below 3%. Its 2000W continuous output is suitable for a wide range of touring appliances including coffee machines, microwaves, hair dryers, laptops, chargers, CPAP machines and power tools, provided the total load and startup current remain within the inverter’s limits. For short startup loads, BMPRO rates the unit to 2300W for 15 seconds, 2500W for 10 seconds, 3000W for 5 seconds and up to 4000W for 2 seconds.
Automatic AC Transfer Switch
The built in transfer switch allows connected loads to move automatically between mains power and inverter power. When suitable mains power is available, the PurePro passes that supply through to the connected loads. If mains power is lost or falls outside the accepted range, the inverter can switch back to battery supplied AC power in less than 30 milliseconds. This is particularly useful in caravans and campers that regularly move between powered sites and off grid camping.
Integrated RCD Protection
The PurePro2000 includes an integrated residual current device and is compliant with AS/NZS 4763. BMPRO states that the inverter can be used to supply fixed connections in transportable structures and vehicles when installed in accordance with AS/NZS 3001 by a licensed electrician. Any fixed 240V wiring or transfer switch installation should be completed by an appropriately licensed electrician.
LCD and Remote Control
The onboard LCD provides access to operating information including DC input voltage, AC output voltage, output current, power and load percentage. A remote control panel is also included, allowing the inverter to be switched on and off from a more convenient location. The remote provides approximate battery and load indication as well as access to Eco mode, and is supplied with a 5m data cable.
Eco Mode
Large inverters can consume noticeable battery capacity even when no appliance is being used. The PurePro2000 draws less than 1.7A at no load in normal operation, while Eco mode reduces standby current to below 0.35A. This can make a worthwhile difference in systems that spend long periods with the inverter switched on but only use AC appliances occasionally.
Battery and Cabling Requirements
A 2000W inverter still places a significant load on a 12V battery system. BMPRO specifies a nominal input current of 200A and requires 50mm² stranded DC cable, a 250A DC fuse and a maximum cable length of 1500mm between the battery bank and inverter.
Battery capacity alone does not determine compatibility. The battery BMS, interconnections, isolator and protection devices must all be capable of safely supplying the required current.
Built In Protection
The PurePro monitors for overvoltage, undervoltage, reverse polarity, short circuit, excessive temperature and overload conditions. Cooling fan speed is controlled according to load and temperature rather than simply running continuously, helping manage both heat and noise as demand changes.
Installation Note
The inverter should be installed in a dry, clean and well ventilated location with at least 30mm clearance around the cooling fans. BMPRO also warns that the PurePro AC output must not be fed back into a power management system. When the automatic transfer switch is used, the mains supply to the inverter should be provided from a dedicated outlet and installed by a qualified electrician.
Shipping Australia Wide
Orders are dispatched quickly from Australia. Questions? Hit us up, we're 4WDers too and happy to help.
Specifications
| Inverter Performance | |
|---|---|
| Rated Power | 2000W |
| Peak Power | 4000W |
| DC Input Voltage | 12V DC |
| DC Input Range | 10.5 to 15.5V DC |
| Nominal Input Current | 200A |
| No Load Current | <1.7A Normal / <0.35A Eco Mode |
| AC Output Voltage | 220 to 240V AC |
| AC Output Frequency | 50Hz |
| AC Output Current | 8.33A |
| Output Waveform | Pure Sine Wave |
| Total Harmonic Distortion | <3% |
| Efficiency | >89% |
| Short Term Output Capability | |
| 15 Second Output | Up to 2300W |
| 10 Second Output | Up to 2500W |
| 5 Second Output | Up to 3000W |
| 2 Second Peak Output | Up to 4000W |
| AC Transfer & Outputs | |
| Automatic Transfer Switch | Integrated |
| Transfer Switch Input Rating | 2300W / 10A |
| Acceptable Mains Input Voltage | 200 to 260V AC |
| Maximum Transfer Time | <30ms |
| 240V AC Outputs | 2 |
| RCD Protection | Integrated |
| USB Output | USB-A 5V DC / 2A |
| Battery & Installation | |
| Compatible Battery Types | STD, GEL, AGM & LiFePO4 |
| Recommended DC Cable | 50mm² Stranded Cable |
| Recommended DC Fuse | 250A |
| Maximum DC Cable Length | 1500mm |
| Minimum Earth Conductor | 2.5mm² |
| Monitoring & Protection | |
| Display | Multi Function LCD |
| Remote Control Panel | Included |
| Remote Data Cable | 5m |
| Eco Mode | Yes |
| Protection | Overvoltage, Undervoltage, Reverse Polarity, Short Circuit, Over Temperature & Overload |
| Cooling | Load & Temperature Controlled Fan Cooling |
| Dimensions & Construction | |
| Dimensions | 428 × 253 × 94mm |
| Weight | 4.8kg |
| Ingress Protection | IP22 |
| Operating Temperature | 0°C to +50°C |
| Additional Information | |
| Brand | BMPRO |
| Model / MPN | PUREPRO2000 |
| Compliance | AS/NZS 4763 |
| ATS Relay Compliance | IEC 61810-1 |
| Warranty | 2 Years |
