Built for the Adventure.
$1,149.00
$1,149.00
Tax included.

Product details

Building a reliable dual battery system doesn't have to be complicated. The Exotronic 4WD Starter Kit combines two premium components trusted by touring enthusiasts to create a dependable auxiliary power system for your vehicle.

Featuring the Exotronic 12V 100Ah Alpha Slimline Smart Bluetooth Lithium Battery and the Victron Orion XS 12/12-50A DC-DC Smart Battery Charger (EMC Improved Version), this kit provides efficient charging, intelligent battery management and reliable off-grid power in a compact package.

Whether you're powering a fridge, lights, compressor, inverter or camping accessories, this kit forms an excellent foundation for a modern 12V touring setup.

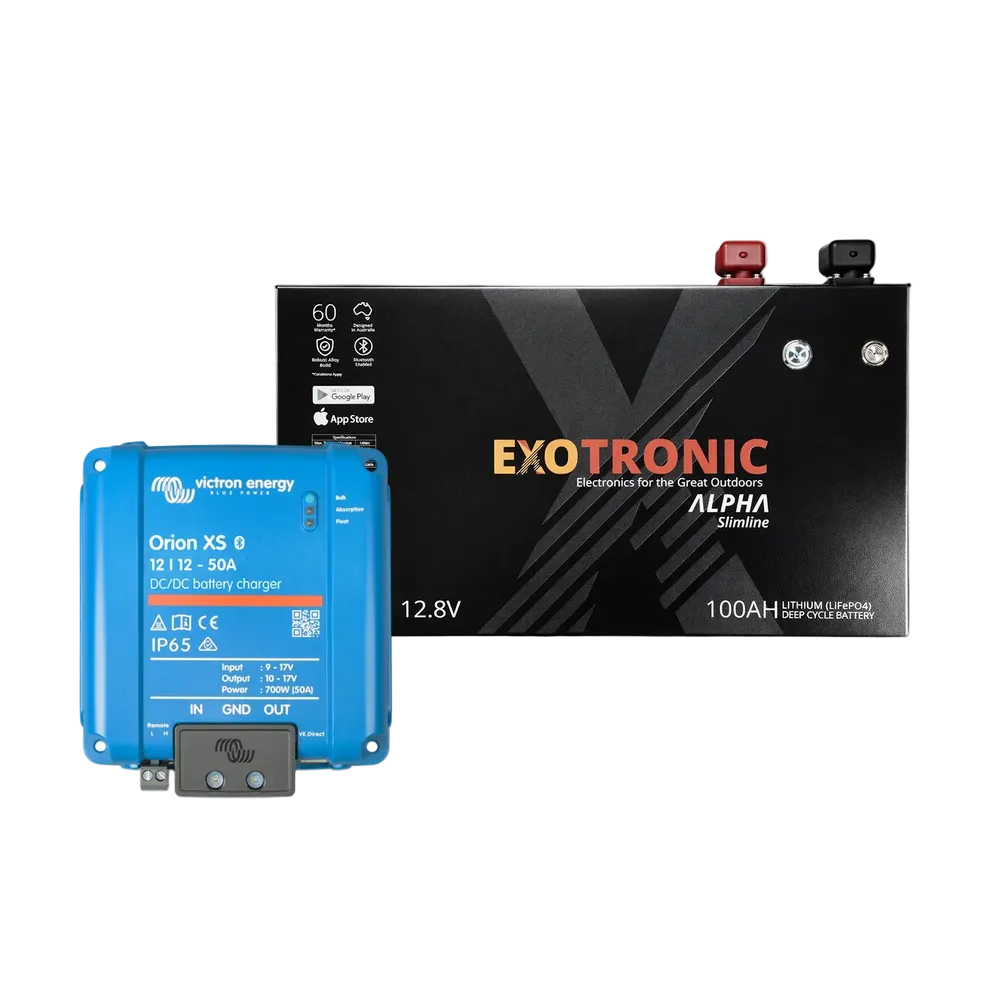

What's Included

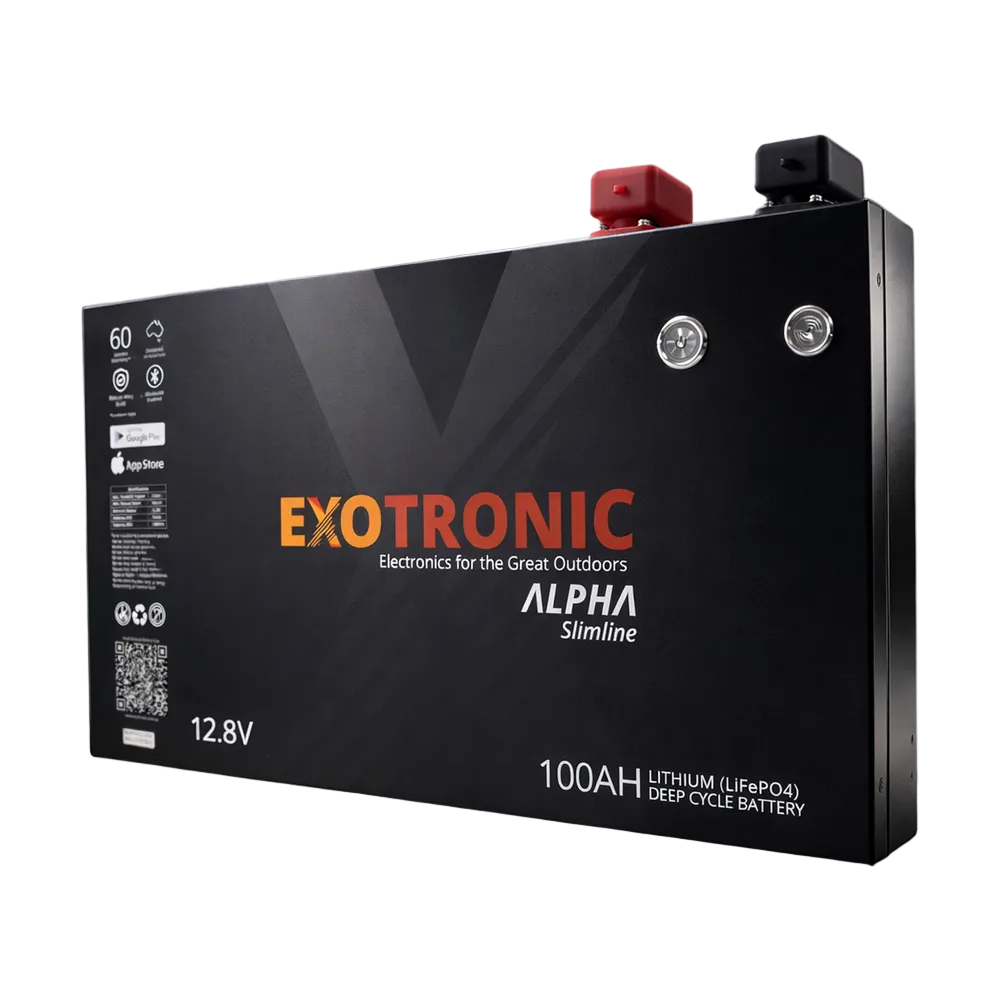

  • Exotronic 12V 100Ah Alpha Slimline Smart Bluetooth Lithium Battery

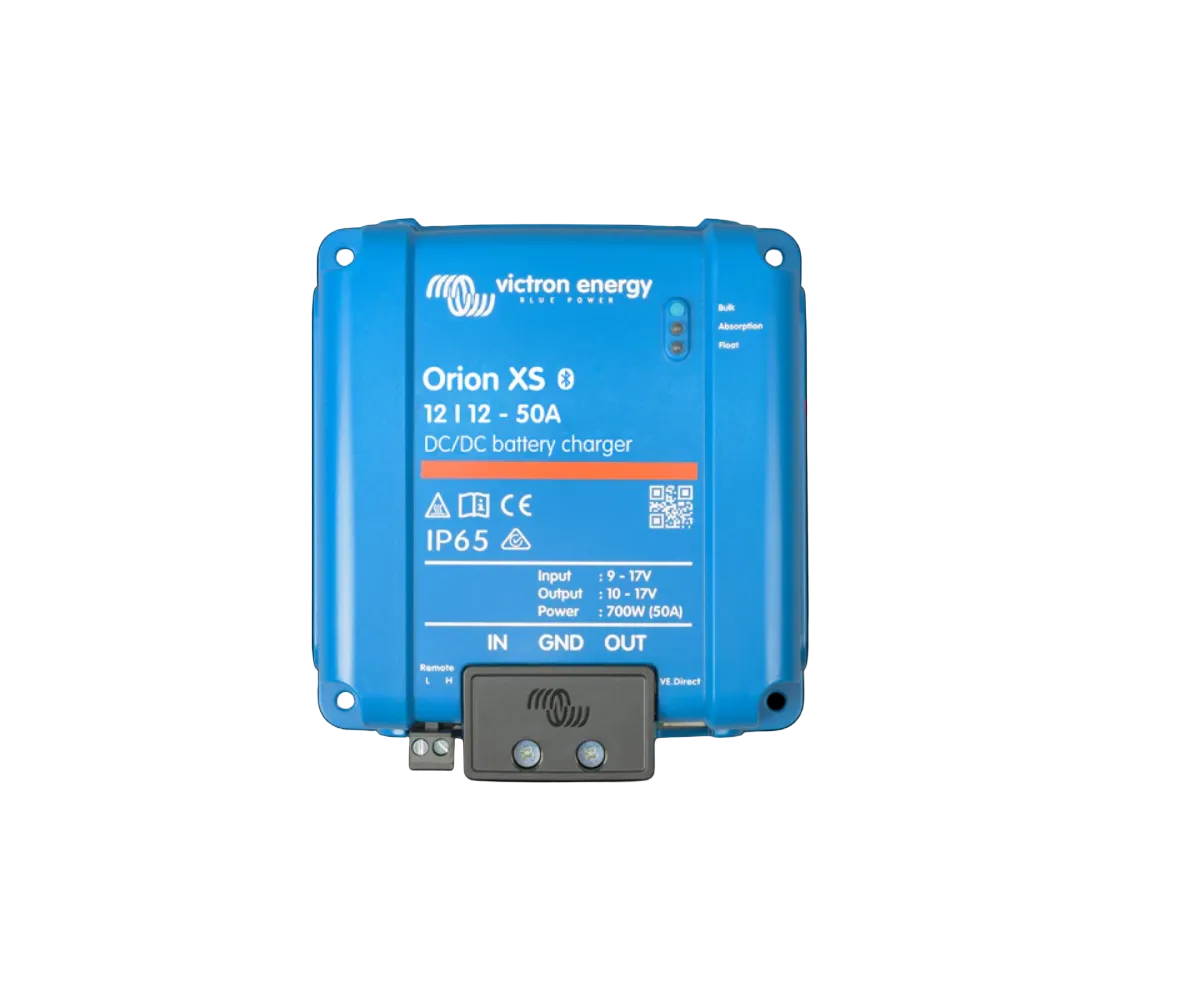

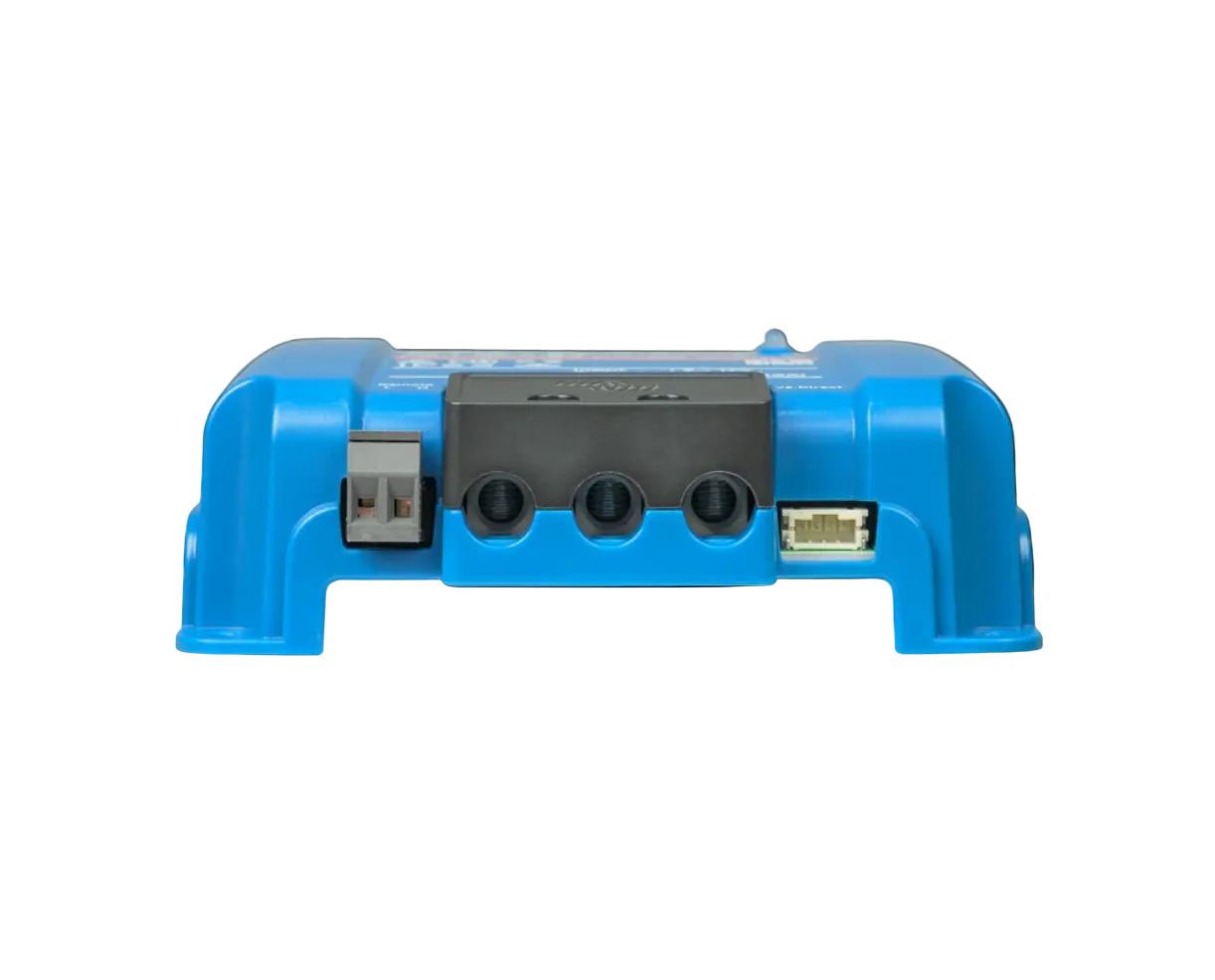

  • Victron Orion XS 12/12-50A DC-DC Smart Battery Charger (EMC Improved Version)

Designed for Modern 4WD Installations

The slimline battery is designed for installations where space is at a premium, making it ideal for canopies, behind rear seats, drawer systems and compact battery compartments. Integrated Bluetooth allows you to monitor battery voltage, capacity and system performance directly from your smartphone.

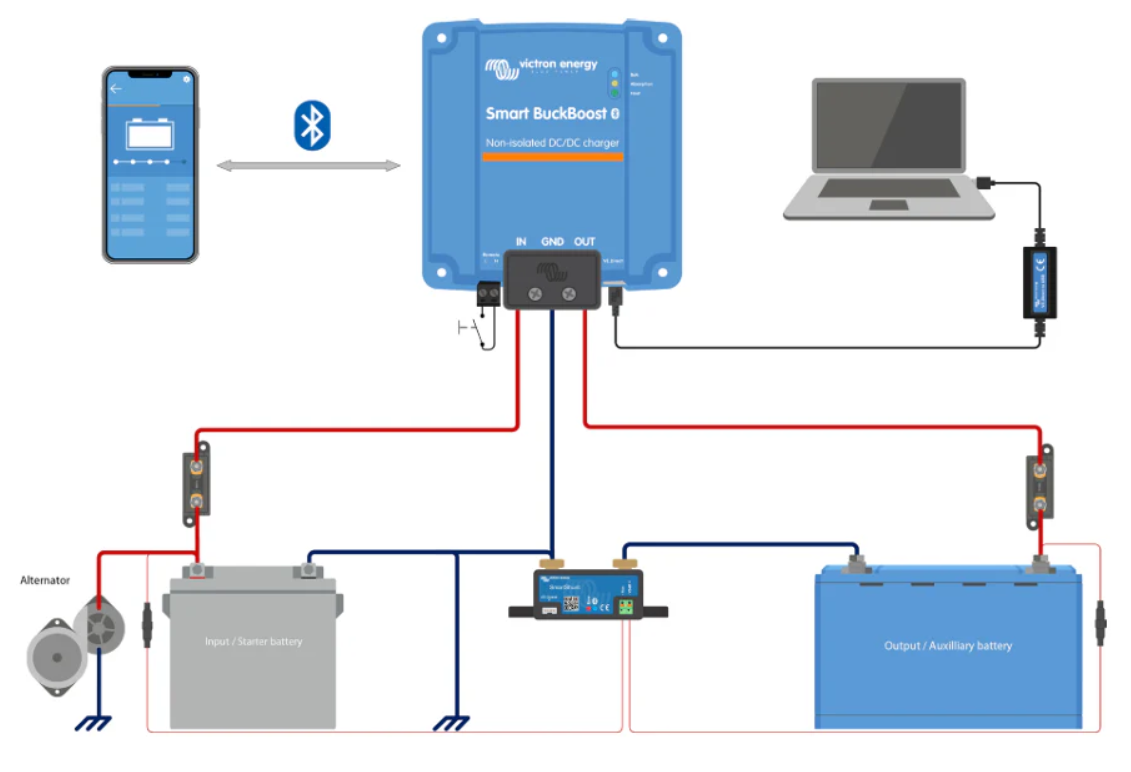

Paired with the Victron Orion XS, the system delivers fast, intelligent charging while remaining compatible with modern smart alternators. The EMC Improved version also helps minimise electrical interference, making it well suited to today's electronically controlled vehicles.

Ideal for Touring and Off-Grid Power

This kit is suitable for a wide range of applications, including:

  • 4WD touring vehicles
  • Ute canopies
  • Caravans and camper trailers
  • Motorhomes
  • Marine installations
  • Tiny homes
  • Off-grid power systems

Whether you're building your first dual battery system or upgrading an existing setup, this package provides two premium products designed to work together.

A Great Starting Point for a Complete Power System

Add solar charging, an inverter or a battery monitor over time as your power requirements grow. Starting with quality core components helps create a reliable electrical system that can be expanded as your touring setup evolves.

Specifications

Battery Performance
Battery Capacity 100Ah
Nominal Voltage 12.8V
Continuous Discharge Current (30 min) 100A
Peak Discharge Current (1 sec) 170A
Trip Current (10 sec) 110A
Nominal Continuous Charge Current 30A
Maximum Continuous Charge Current 50A
Absorption Voltage 14.0–14.2V
Float Voltage 13.5V
Maximum Recommended Inverter Size 1000W
Balance Current 1.2A
Protection & Configuration
Low Voltage Trip 10V
High Voltage Trip 14.6V
Maximum Parallel Batteries 4 (same model)
Maximum Series Batteries 4 (same model)
Dimensions & Weight
Dimensions (L × W × H) 515 × 65 × 290mm
Weight 11.7kg
Mounting Orientation Upright or Side
Construction
Case Material Powder-coated metal slimline case
Terminal M8 Bolt (10mm depth) + 120A Anderson Plug
Recommended Terminal Torque 12Nm (14Nm Maximum)
Temperature Performance
Charging Temperature 5°C to 45°C
Discharging Temperature -20°C to 55°C
Storage Temperature -20°C to 60°C
Ideal Storage Conditions 25°C, 40% State of Charge (approx. 13V)
Additional Information
Cycle Life >3000 cycles (100% DoD @ 25°C), to 80% capacity within 5 years
Capacity Measurement 14.6V to 10V at 0.3C @ 25°C
Ventilation Requirement Minimum 10mm clearance on all sides
Model Exo-LiS-100-04
Barcode 9361784003313

Shipping Australia-Wide

Orders are dispatched quickly from Australia. Questions? Hit us up — we're 4WDers too and happy to help.
