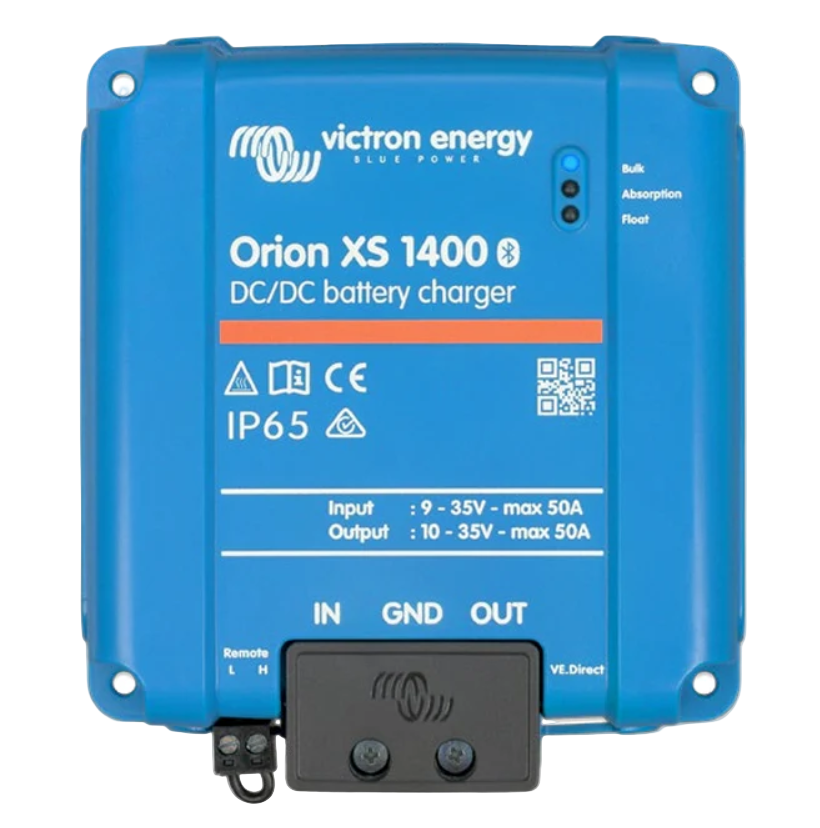

The Victron Orion XS 1400 is a high-performance DC-DC charger designed for modern dual-battery systems in 4WDs, marine vessels, RVs, caravans and off-grid installations. Built on the latest Orion XS platform, it offers advanced current control, adaptive charging, high efficiency and robust electronic protection. Its multi-voltage design supports both 12V and 24V systems, making it suitable for complex touring and commercial electrical setups. With an efficiency of up to 98% and aluminium circuit board cooling, the Orion XS 1400 delivers powerful, stable charging without the need for fans.

Key Features

• Adjustable input and output currents from 1 to 50A in 0.1A increments via VictronConnect
• High EMC immunity to minimise interference with sensitive equipment
• Adaptive 4-stage charging algorithm for lead-acid batteries plus power supply mode
• Short-circuit, overload and temperature protection for safe operation
• Accurate current and power measurement for precise system monitoring
• Bluetooth Smart connectivity for configuration and real-time data
• VE.Direct port for wired integration and remote control
• Input voltage lock-out to protect starter batteries
• Compact, rugged enclosure designed for easy installation

Durable, Practical Construction

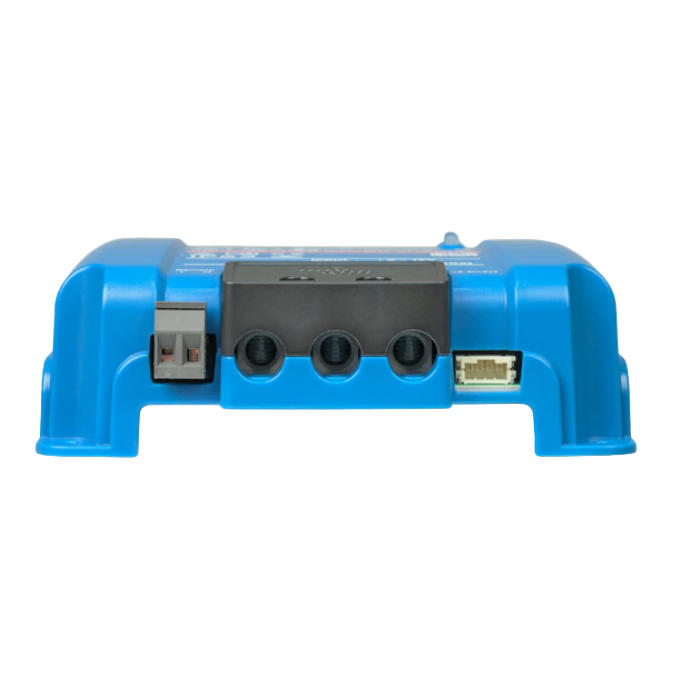

The Orion XS 1400 is built to withstand harsh touring and marine environments, featuring an IP65 enclosure for protection against dust, vibration and occasional water spray. A protective terminal cover shields electrical connections from debris and accidental contact, promoting safe operation and a clean installation.

Recommended Applications

• 4WD dual-battery systems
• Caravans and RV electrical setups
• Marine vessels using VHF radios and sensitive electronics
• Off-grid and cabin power systems
• Lithium, AGM and lead-acid battery banks
• Commercial and industrial power systems requiring accurate, stable DC-DC charging

Recommended Fuse and Cable Size

Why Choose the Orion XS 1400

The Orion XS 1400 delivers efficient, intelligent and configurable DC-DC charging across both 12V and 24V systems. With advanced EMC protection, adaptive charging, precise current control and rugged construction, it is a dependable choice for touring, marine and off-grid power systems requiring high-output, stable and safe charging capabilities.

Download the Victron Bluetooth App

With built-in Bluetooth, and with Bluetooth implemented in most other Victron Energy products, wireless communication between products will simplify your system installation and enhance performance. Plus, the bi-stable alarm relay prevents increased current draw in case of an alarm. With the App you are able to;

• Customize settings
• Monitor all important data on a single screen
• View historical data


Get the VictronConnect App
