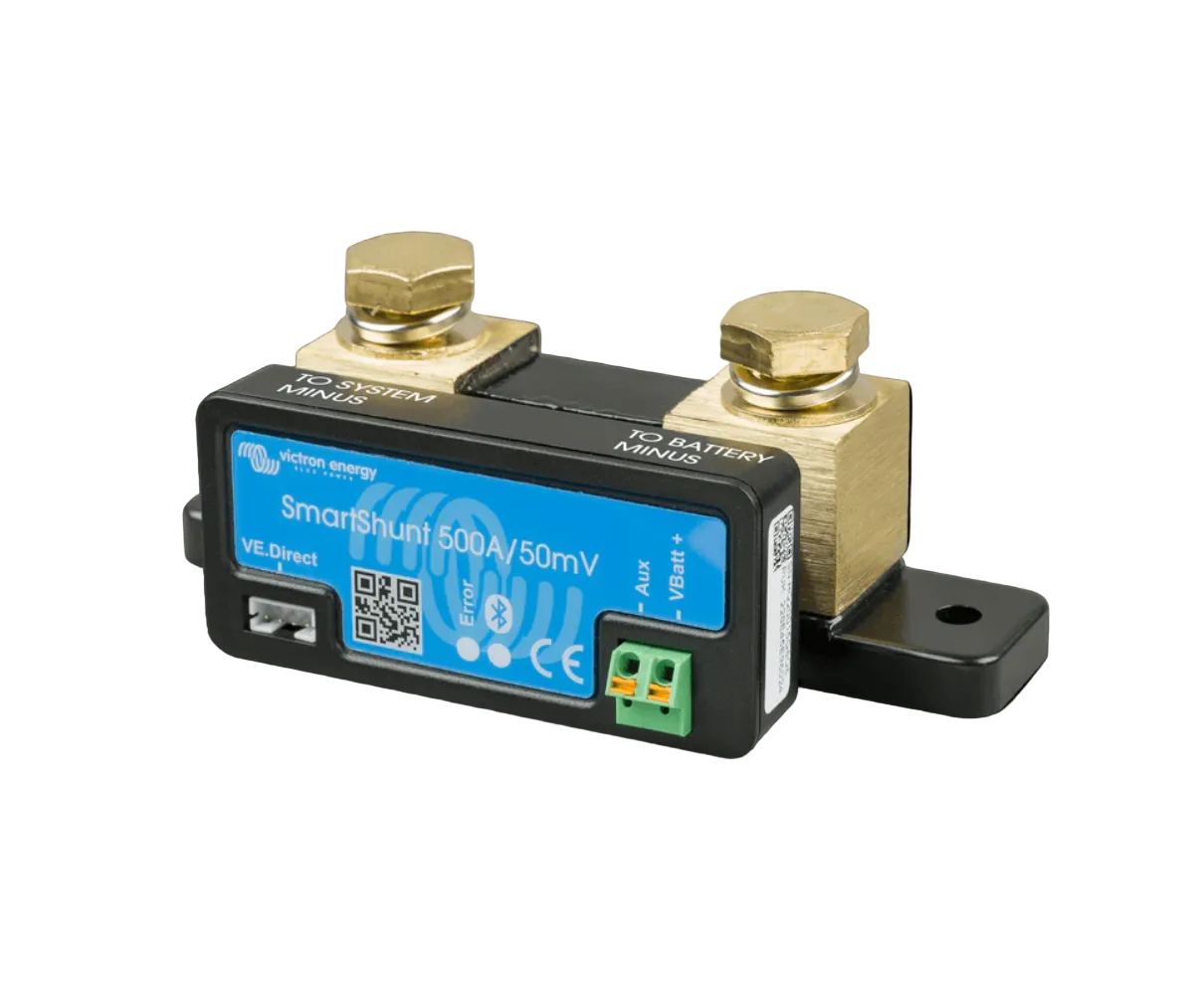

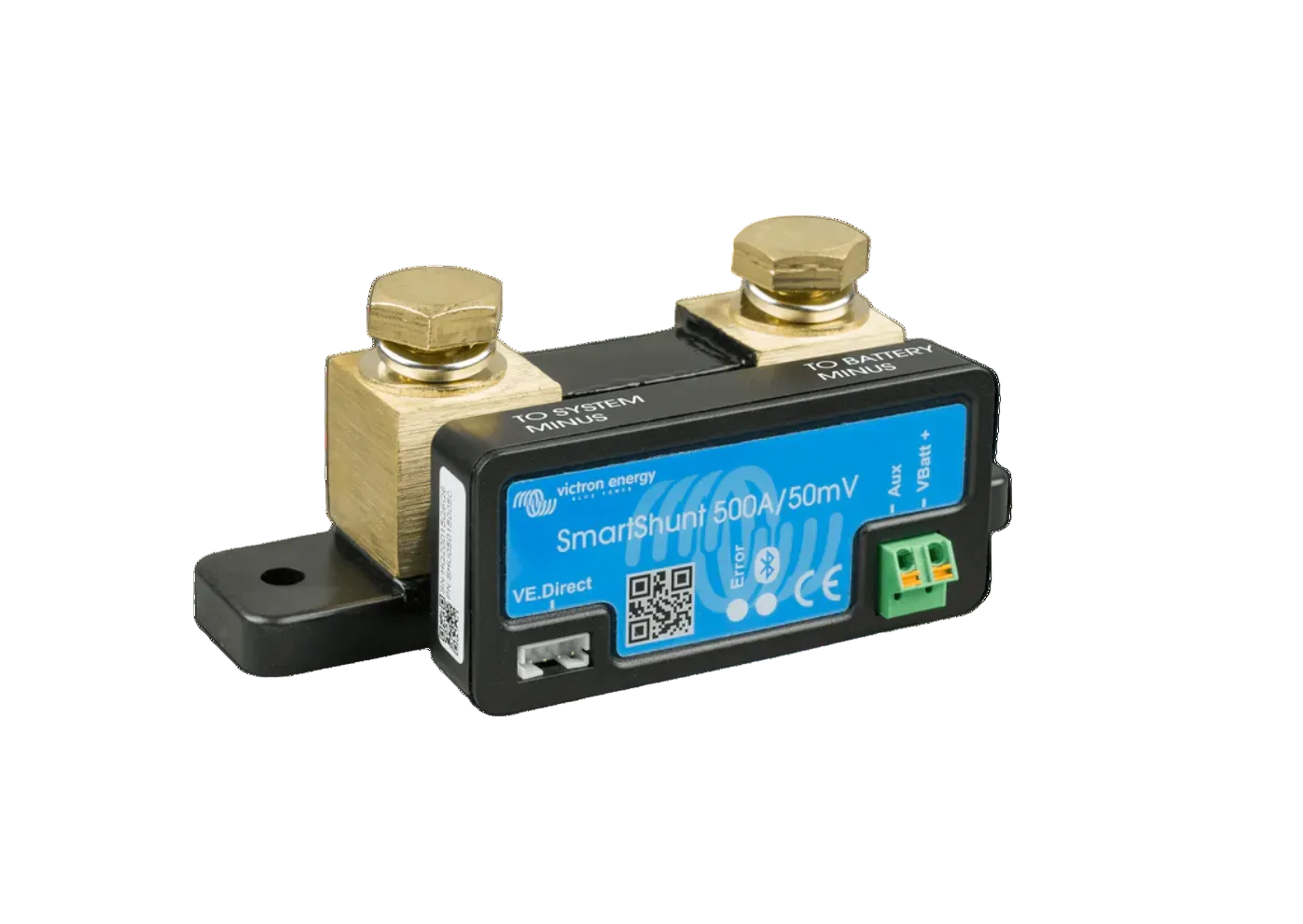

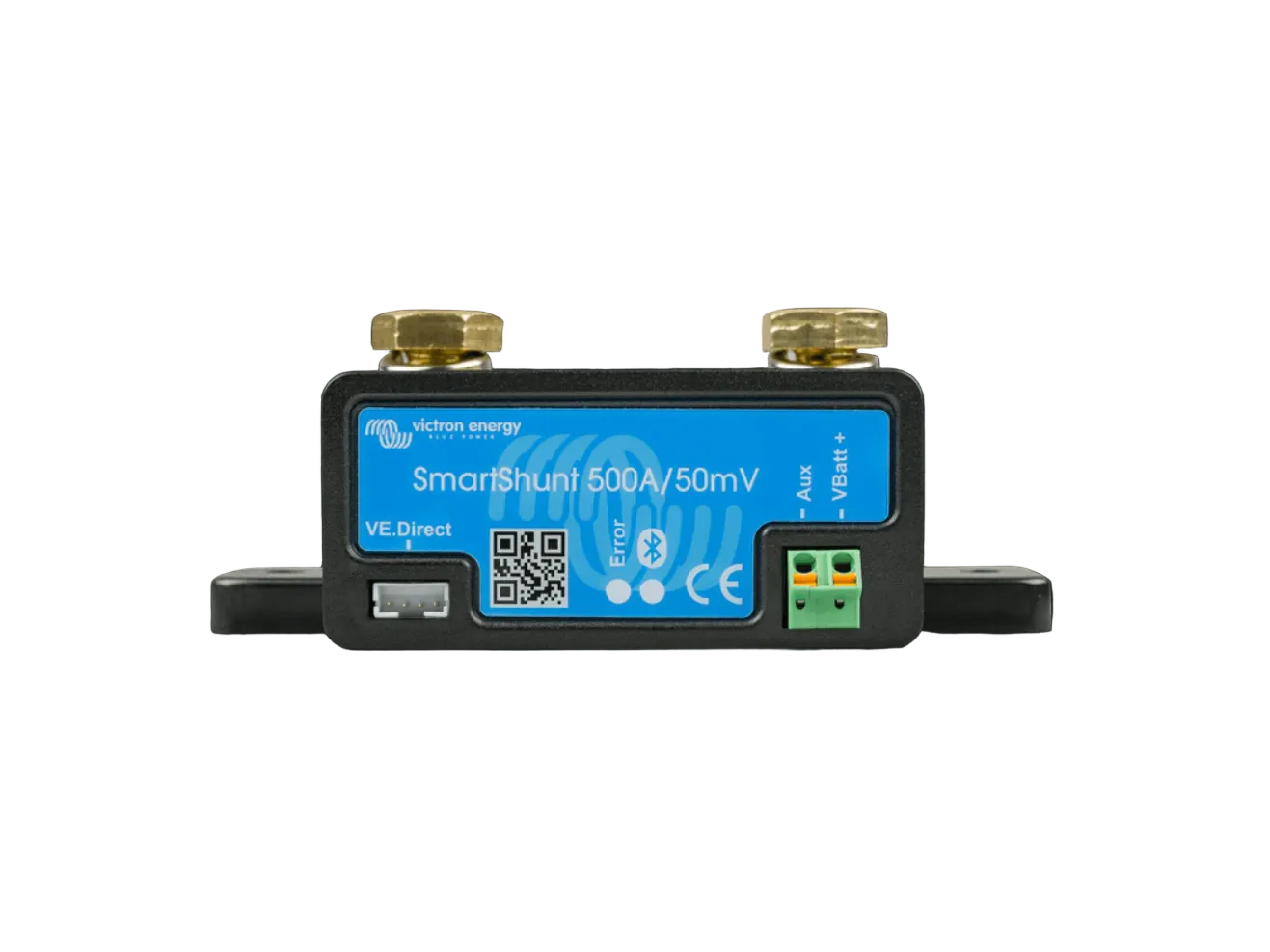

Victron 500A Smart Shunt Bluetooth Battery Monitor

Advanced Battery Monitoring Without a Dedicated Display

The Victron SmartShunt 500A provides highly accurate battery monitoring without requiring a separate display panel. Using built-in Bluetooth connectivity, the SmartShunt transforms your smartphone or tablet into a complete battery monitoring system, providing real-time information on battery state of charge, voltage, current flow, power consumption and remaining runtime through the free VictronConnect app.

Ideal for caravans, camper trailers, motorhomes, 4WDs, marine vessels and off-grid power systems, the SmartShunt delivers the same precision battery monitoring as traditional display-based systems while reducing installation complexity and saving valuable dashboard space.

For users operating a Victron GX device, the SmartShunt can also communicate through its VE.Direct connection for seamless integration into larger Victron Energy systems.

Why Choose the SmartShunt 500A?

The SmartShunt 500A offers a cleaner, simpler approach to battery monitoring by eliminating the need for a dedicated display.

Instead of mounting an additional screen inside your vehicle or caravan, all battery information is available directly through your smartphone, allowing for a neater installation with less wiring and fewer components.

The 500A version is particularly suited to larger battery systems, high-current inverter installations and advanced off-grid setups where current draw may exceed the capabilities of smaller battery monitors.

Key Features

• Accurate 500A battery monitoring capability
• Built-in Bluetooth connectivity
• Monitor battery performance through the VictronConnect app
• Displays state of charge, voltage, current, power and remaining runtime
• VE.Direct communication port for GX device integration
• Compact design with minimal wiring requirements
• Supports lithium, AGM, GEL and lead-acid battery systems
• Secondary battery monitoring capability
• Compatible with optional temperature sensor connection

Real-Time Battery Information

The SmartShunt continuously tracks key battery parameters including:

• State of Charge (SOC)
• Battery Voltage
• Charge and Discharge Current
• Power Consumption
• Time Remaining
• Historical Usage Data

Having accurate battery information available at all times helps maximise battery lifespan and provides greater confidence when operating away from mains power.

Perfect for Larger Off-Grid Systems

The SmartShunt 500A is particularly well suited to:

• Large lithium battery banks
• Caravan electrical systems
• High-current inverter installations
• 4WD touring setups
• Camper trailers
• Marine applications
• Off-grid solar systems
• Tiny homes and remote power systems

The higher 500A current rating makes it an excellent choice for systems running larger inverters, multiple charging sources or substantial DC loads.

SmartShunt vs BMV-712

Both the SmartShunt and BMV-712 provide highly accurate battery monitoring, however they suit slightly different installation preferences.

Choose the SmartShunt if you want:

• A display-free installation
• Smartphone monitoring via Bluetooth
• Reduced wiring complexity
• A hidden, compact installation

Choose the BMV-712 if you want:

• A dedicated battery monitor display
• At-a-glance information without opening an app
• Programmable visual and audible alarms
• A programmable relay for automated system control

For many modern Victron installations, the SmartShunt provides all the battery monitoring functionality required while simplifying installation and reducing dashboard clutter.

Built for Victron Energy Systems

The SmartShunt integrates seamlessly with Victron chargers, solar controllers, inverters and GX devices, making it a natural choice for complete Victron-based power systems.

Whether you're building a touring setup, upgrading a caravan electrical system or designing a serious off-grid power solution, the SmartShunt 500A provides reliable and accurate battery monitoring without unnecessary complexity.
