The Sunman eArc 100W flexible solar panel provides high output in a slim, ultra-light construction ideal for caravans, camper trailers, marine applications, 4WDs, mobile power systems and small off-grid setups. With the junction box positioned beneath the panel, the design maintains a clean, low-profile appearance that suits compact roof layouts where top-mounted boxes are difficult to route or conceal.

Key features and benefits

• Lightweight, durable composite construction engineered for mobile and fixed applications

• High-efficiency monocrystalline Mono-PERC cells maximise energy output in compact areas

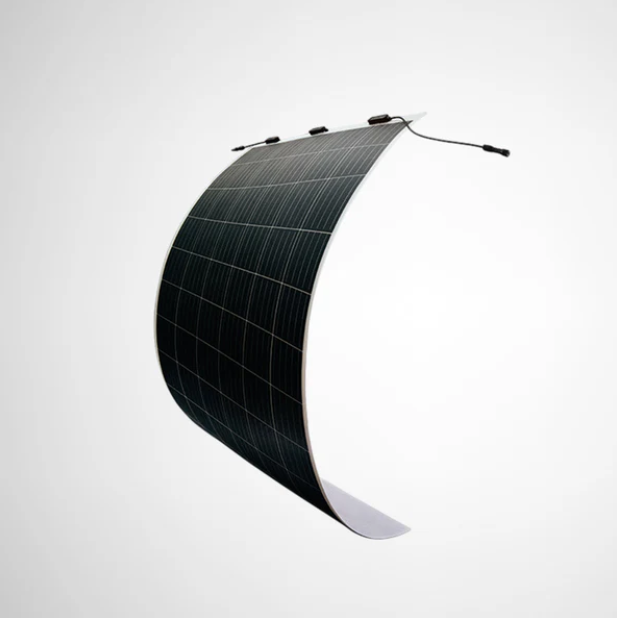

• Flexible panel body conforms to curved or uneven surfaces without heavy glass framing

• Backed by Clean Energy Finance Corporation and ARENA endorsements for innovation

• CEC-approved for residential and commercial installations in Australia

• Warranty coverage: 10 years for building installs, 5 years for mobile use

Durability without heavy framing
Built from a patent-pending composite similar to aircraft window materials, the eArc range provides strong structural integrity without using traditional glass or metal frames. The design reduces weight, improves safety on moving vehicles and maintains long-term output in harsh environments. Clean Energy Council approval confirms quality standards for compliant installations.

Mounting options
The panel supports multiple attachment methods to suit different surfaces, vehicles and conditions:

• Vented Gap Kit: Creates an air gap for cooler performance and higher efficiency; includes high-bond tape and polycarbonate spacers (approx. 15mm height increase)

• High-Bond Double-Sided Tape: Low-profile adhesion for smooth surfaces (2.3mmH x 12mmW x 16.5mL)

• Bi-Adhesive Backing: Optional continuous adhesive sheet for peel-and-stick mounting on suitable surfaces

• Structural Silicone (Fix8): Adhesive bonding solution for selected substrates

• Eyelets: Optional eyelets can be pressed in for mechanical mounting using bolts or screws

Fitment notice
Slight variations may occur between manufacturing batches. When adding to an existing array, confirm compatibility with the sales team to ensure consistent specifications and appearance.

Who this panel suits

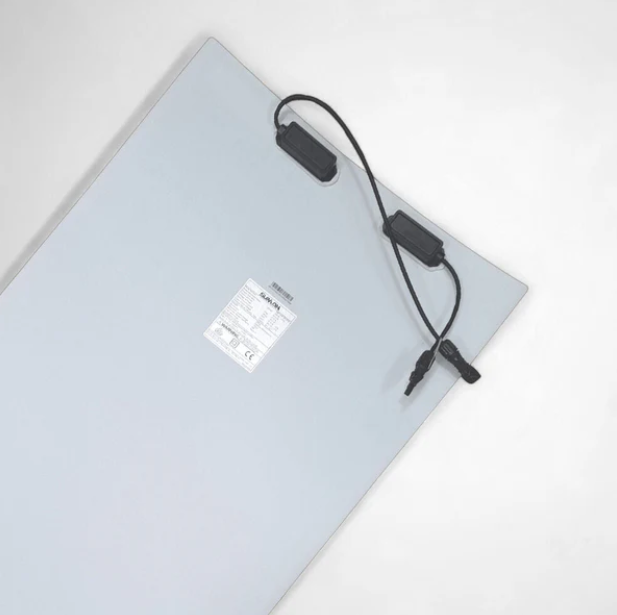

This 100W model is ideal for 4WDs, camper trailers, vans, boats and small off-grid systems requiring clean routing and minimal external hardware. The under-mounted junction box helps conceal wiring for neat installations on roof racks, biminis and compact mounting spaces.
