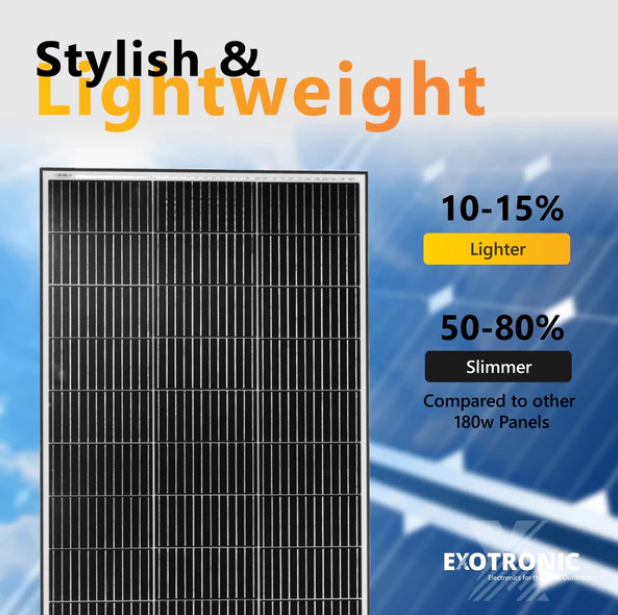

High-performance fixed solar panel for 4WD canopies, caravans, and off-grid builds

The Exotronic Horizon 180 W G12 Mono-PERC Solar Panel is built for serious off-grid performance. Using 23 %-efficient G12 half-cut monocrystalline cells and a 9 + wire busbar low-loss design, this compact black-frame panel delivers exceptional power density and reliability for 12 V and 24 V systems.

Advanced PERC Cell Technology & 9 + Busbar Low-Loss Design

Each Passivated Emitter and Rear Cell (PERC) captures more sunlight by reflecting otherwise-lost light back through the silicon layer, producing higher efficiency even in overcast or low-light conditions. Compared with conventional monocrystalline cells, PERC modules achieve better morning and late-afternoon performance—perfect for touring and stationary off-grid setups.

The multi-wire busbar layout distributes current evenly across every cell, reducing internal resistance and minimising energy losses. This design improves long-term reliability by reducing hot spots and uneven heating, ensuring stable output and a longer service life.

Parallel-Compatible Voltage Range

Every panel in the Exotronic Horizon Series is engineered with synchronised voltage characteristics. This allows different wattage panels (180 W, 200 W, 225 W) to be wired in parallel without mismatch, simplifying multi-panel installations and maintaining system efficiency.

Built Tough for Australian Conditions

• Anodised black aluminium frame (25 mm) – lightweight yet strong for canopy or roof-rack mounting

• Low-iron tempered glass – high transmissivity and impact-resistant

• Wind load: up to 2400 Pa | Snow load: up to 5400 Pa

• Salt-mist & ammonia resistant – ideal for coastal and marine environments

Each panel ships with 800 mm MC4-terminated leads for quick, weatherproof connections.

Ideal Applications

• 4WD canopies and touring rigs – power fridges, lighting, and DC chargers

• Caravans & campers – maintain charge for large battery banks

• Marine installations – withstands salt exposure and vibration

• Off-grid cabins & workshops – dependable 12 V / 24 V supply

Specifications

• Rated Power: 180 W

• Cell Type: G12 Mono-PERC (23 %)

• Busbars: 9 + wire, low-resistance design

• Dimensions: 1320 × 670 × 25 mm

• Weight: approx. 10.3 kg

• Frame: Black anodised aluminium

• Connectors: MC4 (800 mm lead)

• Certifications: IEC 61215 / 61730, CE

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.
