• Batteries
Built for the Adventure.
$2,990.00
$2,990.00
Tax included.

Product details

Power your adventures with a compact, high-performance lithium deep cycle battery. Designed for caravans, RVs, 4x4s, light truck and marine use, this 24V 175Ah LiFePO4 battery delivers safe, reliable energy with smart features built for modern travel and off-grid living.

Key Features

  • Bluetooth Monitoring – real-time tracking of charge, temperature & performance

  • Compact, Rugged Design – IP66 water and dustproof, vibration-tested, marine-grade casing

  • Smart BMS – integrated active balancer with protections against overcharge, discharge, temperature extremes, and short circuit

  • Powerful Performance – 175Ah capacity, 165A continuous discharge, perfect for 3000W inverters

  • Long Lifespan – up to 3,000 cycles (10–12+ years of use)

  • Parallel Expansion – connect up to 4 batteries for extra storage

  • Simple Controls – on/off safety button with LED indicator

Built for Every Adventure

  • Caravan, RV & 4x4 Power – reliable energy for fridges, inverters, lighting, and off-grid camping

  • Marine Ready – waterproof, vibration-resistant and safe in harsh conditions

  • Backup Power – dependable emergency supply for home or business systems

Safety & Durability

  • LiFePO4 chemistry for maximum safety

  • Aluminium-cased prismatic cells with rupture discs

  • Advanced microprocessor balancing for consistent performance

Exceptional Lifespan for Lasting Performance

Engineered to endure, these cells are built to last up to 3,000 full discharge cycles. That means it can last an impressive lifespan of 10-12 years or more in many applications, providing you with a long-term energy solution that's not just reliable, but also cost-effective over time.

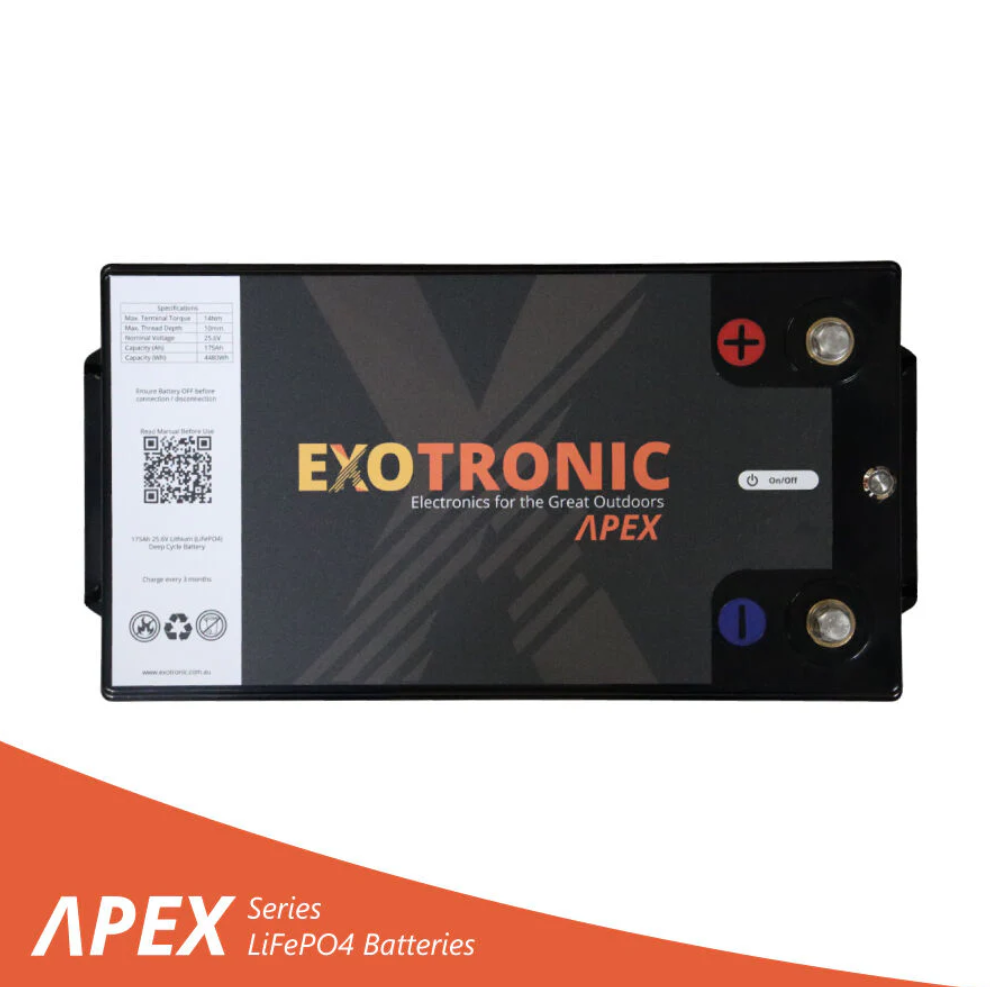

Intuitive On/Off/Reset Button for Easy Control

  • Press the button in to turn on the battery
  • Depress the button to turn off the battery
  • Press the button twice to reset the battery after a trip, alternatively connect a dark-start capable lithium charger

Bluetooth Smart

The JBD BMS includes Bluetooth, allowing real time viewing of the individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs and alarms.

Shipping Australia-Wide

Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.


Specifications

Battery Capacity 175Ah
Battery Nominal Voltage 25.6V
Continuous Current 150A
Peak Current (1s) 300A
Trip Current (300s) 150A
Maximum Inverter Size (Single Battery) 4000W
Maximum Number of Parallel Batteries Up to 4 (same model only, see manual for acceptable wiring)
Maximum Number of Series Batteries Up to 2 (same model only, see manual for acceptable wiring)
Low Voltage Trip 21.6V
High Voltage Trip 29.2V
Balance Current 2A
Length 363mm
Width 190mm
Height 253mm
Height (Including Bolt) 270mm
Weight 27.8kg
Mounting Orientation Upright
Nominal Continuous Charge Current 90A
Maximum Continuous Charge Current 150A
Absorption Voltage 28.0 – 28.4V
Float Voltage 27V
Cycle Life (0.3C) >3000 cycles at 100% @ 25°C
To 70% capacity within 8 years
Case Material ABS
Terminal M8 Bolt – 10mm depth
Terminal Torque 14Nm max (12Nm recommended)
Capacity Measurement 14.6V to 10V @ 0.3C @ 25°C
Operating Temperature (Charging) 5°C – 45°C
Operating Temperature (Discharging) -20°C – 55°C
Operating Temperature (Storage) -20°C – 60°C
Ideal Storage Conditions 25°C, 40% SoC (approx. 13V)
Battery Ventilation Required 10mm clearance on all sides
