Exotronic 12V 20Ah Alpha Series IP67 Smart Deep Cycle LiFePO4 Lithium Battery (Bluetooth)

The Exotronic 12V 20Ah Alpha Series is a compact, smart LiFePO4 battery built for small-scale power systems that demand reliability and long service life. With IP67 waterproof protection, integrated Bluetooth monitoring and a dependable JBD BMS, it delivers consistent 12V performance in a lightweight, ultra-slim design.

Ideal for backup systems, portable electronics and compact off-grid installations, it’s a modern lithium upgrade over traditional AGM or lead-acid batteries.

Key Features

• 20Ah LiFePO4 deep cycle capacity

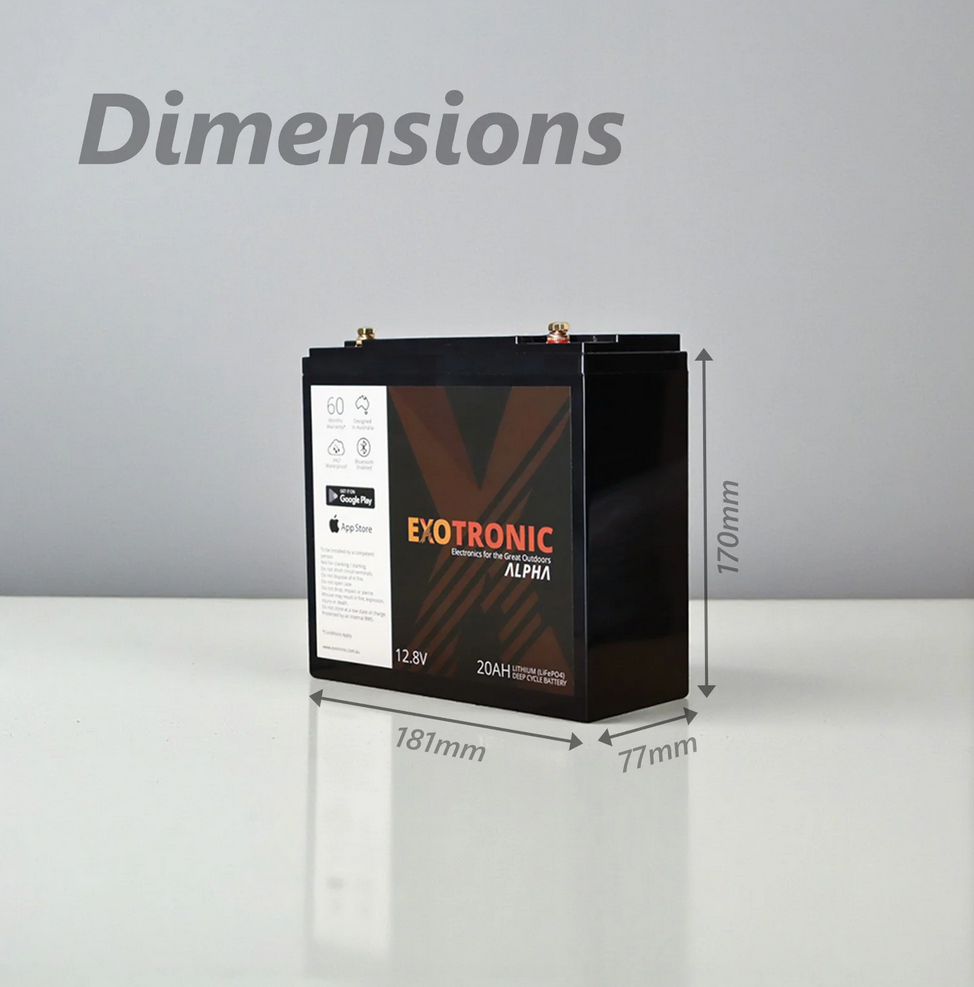

• Ultra-slim, lightweight design
• Real-time Bluetooth monitoring
• IP67 waterproof and dustproof rating
• Reliable JBD BMS with 1.2A active balancing
• 0–100% usable capacity
• IEC 62619 certified cells

Engineered for Compact Power Systems

The 20Ah Alpha Series is purpose-built for low-demand applications requiring stable, deep-cycle output, including:

• Security and alarm systems
• Emergency lighting
• Communication equipment
• Remote monitoring systems
• DC UPS modules

Its stable discharge curve and intelligent low-voltage cut-off provide predictable performance for technical and precision installations.

IP67-Rated Protection

Fully dust-tight and water-resistant, this battery is capable of temporary immersion up to 1 metre for 30 minutes. The sealed casing makes it suitable for exposed or vibration-prone environments such as:

• Caravan and RV accessories
• Marine electronics
• Industrial control systems
• Remote solar and sensor installations

Advanced Safety and Protection

LiFePO4 chemistry offers high thermal stability and improved safety compared to other lithium types.

Additional protection includes:

• Heavy-duty ABS housing
• Internal rupture discs for pressure relief
• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Temperature monitoring and control

The integrated JBD BMS continuously manages voltage, current and temperature to protect the battery and extend lifespan.

Bluetooth Smart Monitoring

Bluetooth connectivity provides real-time access to:

• Individual cell voltages
• Battery temperature
• Load current
• State of Charge
• MOSFET and protection status

This allows technicians and system owners to monitor performance directly from a compatible smartphone via the Exotronic Alpha Series app.

Optimised for Longevity

With up to 3,000 full discharge cycles, low self-discharge and high round-trip efficiency, this battery is well suited for standby systems and seasonal or intermittent-use equipment.

Whether powering compact solar systems, caravan accessories, remote electronics or backup circuits, the Exotronic 12V 20Ah Alpha Series delivers reliable, intelligent lithium performance in a small footprint.

Shipping Australia-Wide
Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help
