Built for the Adventure.
$1,499.00
$1,499.00
Tax included.

Product details

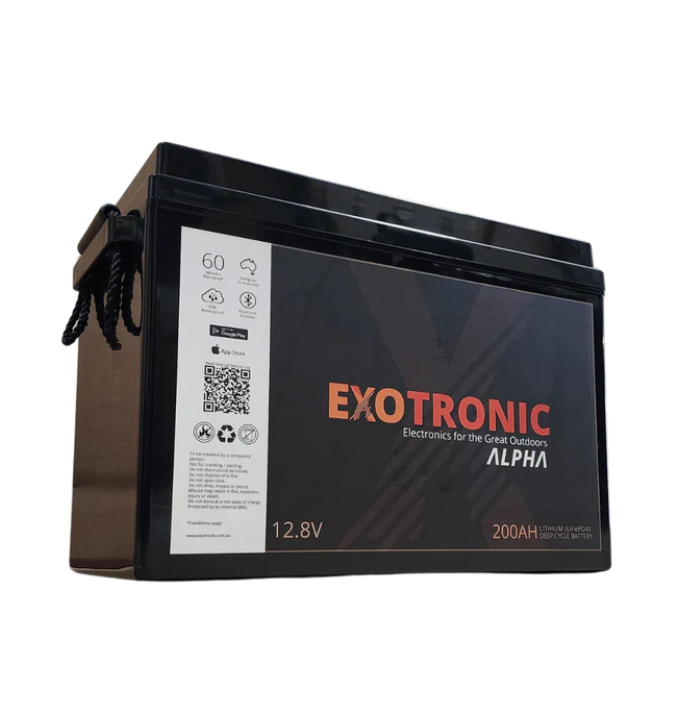

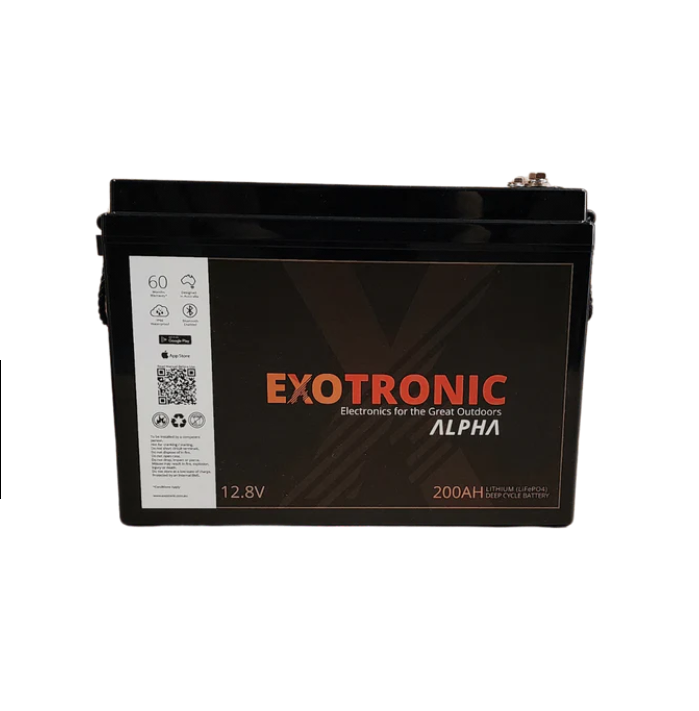

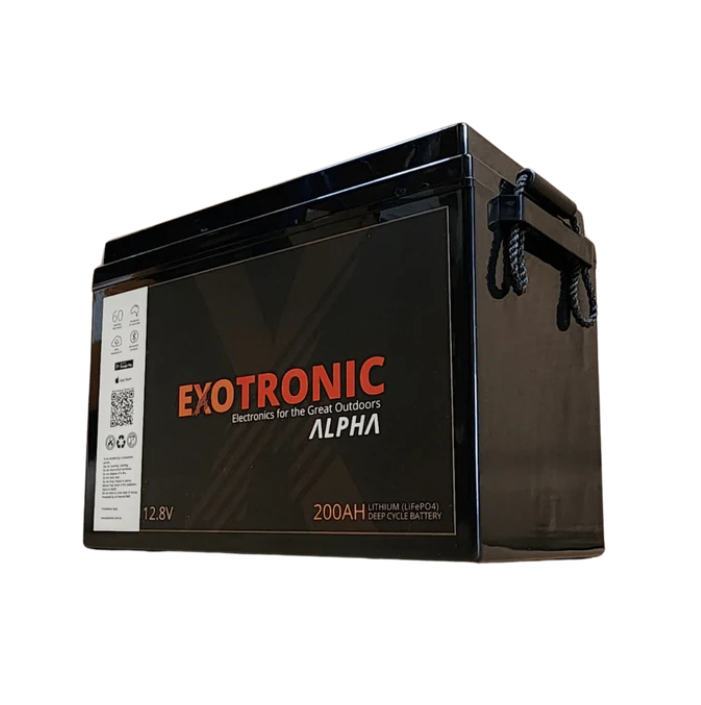

The Exotronic Alpha Series 12V 200Ah LiFePO4 lithium battery is a high-capacity, deep cycle solution designed in Australia for caravans, RVs, 4x4 touring and marine use. With advanced Bluetooth monitoring, robust IP66 construction and a powerful 200A BMS, this battery delivers long-lasting, reliable energy for both off-grid adventures and home backup systems.

Key Features

  • 200Ah capacity with 200A continuous discharge – perfect for 2000W inverters

  • Bluetooth monitoring for real-time performance data including cell voltages, temperature and state of charge

  • IP66 waterproof and dustproof casing, vibration tested for marine and off-road durability

  • JBD 200A BMS with 1.2A active cell balancing for efficient power management and extended lifespan

  • On/Off/Reset button with audible and visual alarm at 10% state of charge

  • Solid brass terminals for low resistance, reduced heat and maximum efficiency

  • Expandable system – connect up to 4 batteries in parallel and 4 in series (up to 51.2V, 16 batteries total)

Built for Every Application

  • Caravans & 4x4 Touring – dependable power for fridges, lighting, inverters and 12V/24V accessories

  • Marine Ready – sealed, vibration-resistant design for boats and harsh marine environments

  • Emergency Backup – ideal for off-grid storage and home backup power during outages

Safety & Reliability

  • LiFePO4 chemistry for inherently safe operation

  • A Grade aluminium-cased prismatic cells with rupture discs for added protection

  • Heavy-duty ABS housing for strength in tough conditions

  • Comprehensive BMS safeguards against overcharge, over-discharge, temperature extremes and short circuits

Long-Lasting Performance

  • Up to 3,000+ charge cycles – designed for 10 to 12 years of service life

  • No memory effect – only requires charging every 3 months during storage

  • Even cell balancing for consistent performance and extended battery life

Easy Operation

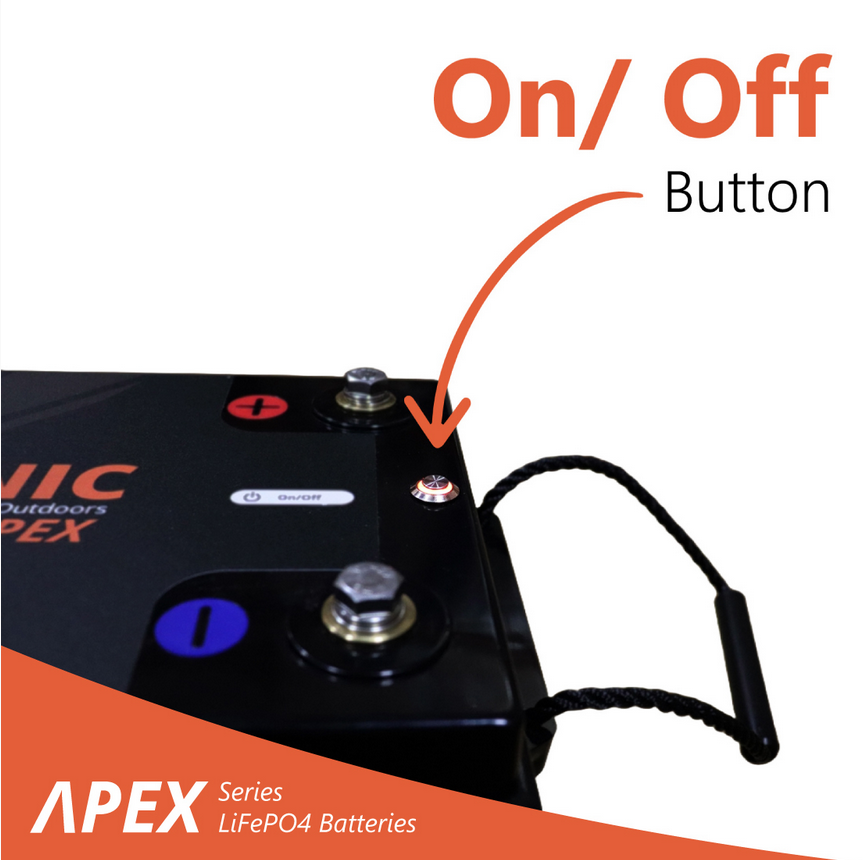

  • Simple On/Off/Reset button with LED indicator

  • Reset after trip events with double press or compatible charger

  • Bluetooth Smart app support for live monitoring and system management

Bluetooth Smart

The Exotronic BMS includes Bluetooth, allowing real time viewing of the individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs and alarms.

Exotronic BMS App on the Android Play StoreExotronic BMS App on the Apple App Store

Shipping Australia-Wide

Orders are dispatched quickly from Australia. Questions? Hit us up — we’re 4WDers too and happy to help.

Specifications

Battery Capacity 200Ah
Battery Nominal Voltage 12.8V
Continuous Discharge Current (30 Min) 200A
Peak Current (1s) 310A
Trip Current (10s) 220A
Maximum Inverter Size 2000W
Maximum Number of Parallel Batteries Up to 4 (same model only, see manual for acceptable wiring)
Maximum Number of Series Batteries Up to 4 (same model only, see manual for acceptable wiring)
Low Voltage Trip 10V
High Voltage Trip 14.6V
Balance Current 1.2A
Length 363mm
Width 190mm
Height 245mm
Weight 19.8kg
Mounting Orientation Upright / Side
Nominal Continuous Charge Current 60A
Maximum Continuous Charge Current 100A
Absorption Voltage 14.0 – 14.2V
Float Voltage 13.5V
Cycle Life (0.3C) >3000 cycles at 100% @ 25°C
To 70% capacity within 5 years
Case Material ABS
Terminal M8 Bolt – 10mm depth
Terminal Torque 14Nm max (12Nm recommended)
Capacity Measurement 14.6V to 10V @ 0.3C @ 25°C
Operating Temperature (Charging) 5°C – 45°C
Operating Temperature (Discharging) -20°C – 55°C
Storage Temperature -20°C – 60°C
Ideal Storage Conditions 25°C, 40% SoC (approx. 13V)
Battery Ventilation Required 10mm clearance on all sides
